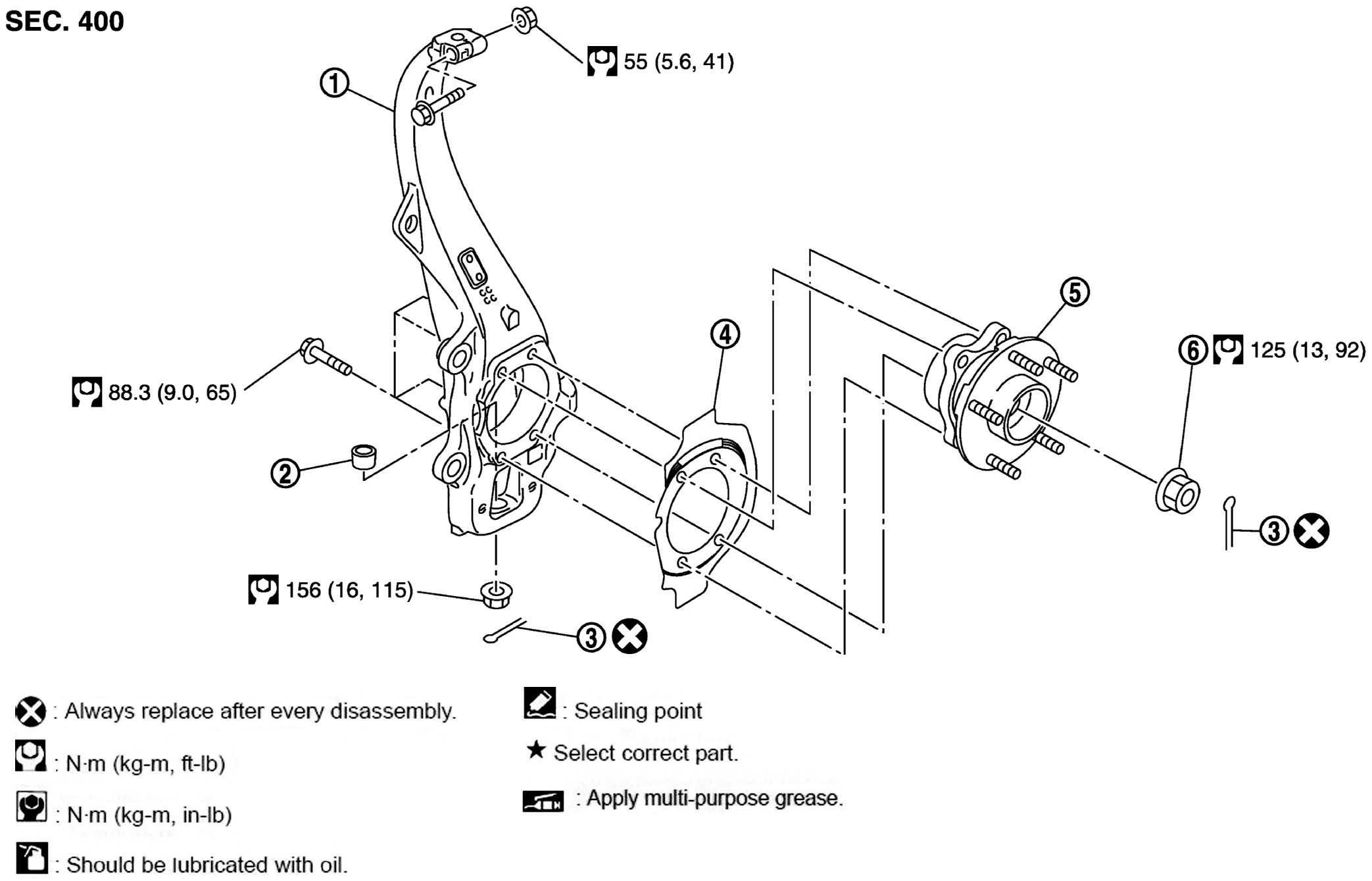

Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Ball seat	3.	Cotter pin
4.	Splash guard	5.	Wheel hub and bearing assembly	6.	Wheel hub lock nut
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
