Left Side

WARNING: This page is about a different variant/trim than selected.

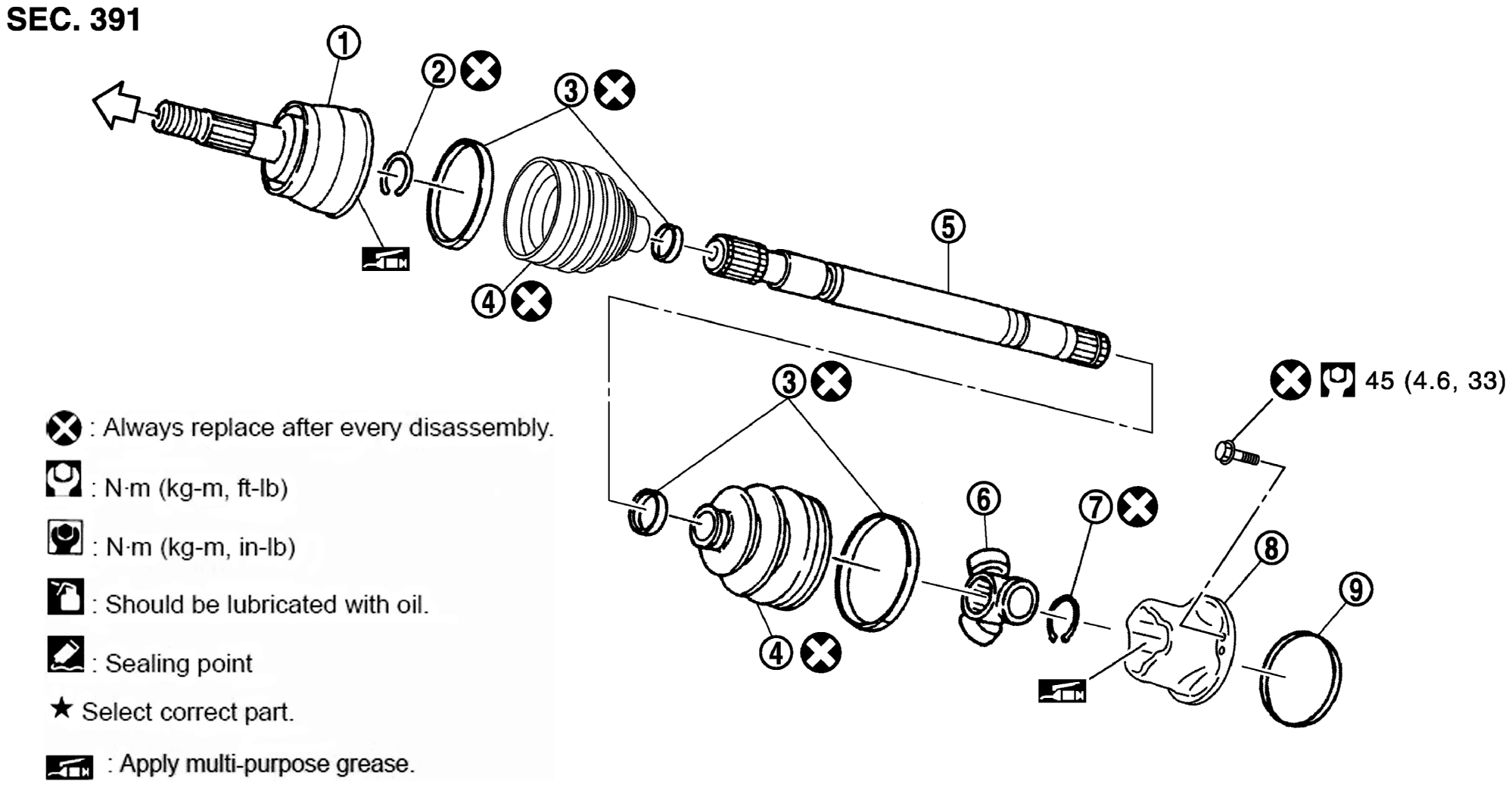

VQ37VHR

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint sub-assembly	2.	Circular clip	3.	Boot band
4.	Boot	5.	Shaft	6.	Spider assembly
7.	Snap ring	8.	Housing	9.	Plug
: Wheel side
: NISSAN genuine grease or an equivalent.
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.

VK50VE

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint sub-assembly	2.	Circular clip	3.	Boot band
4.	Boot	5.	Shaft	6.	Spider assembly
7.	Snap ring	8.	Housing	9.	Plug
: Wheel side
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
: NISSAN genuine grease or an equivalent.
