Starter
>>
Starting System
>>
System Description
>>
Starting System
>>
VK50VE
>>

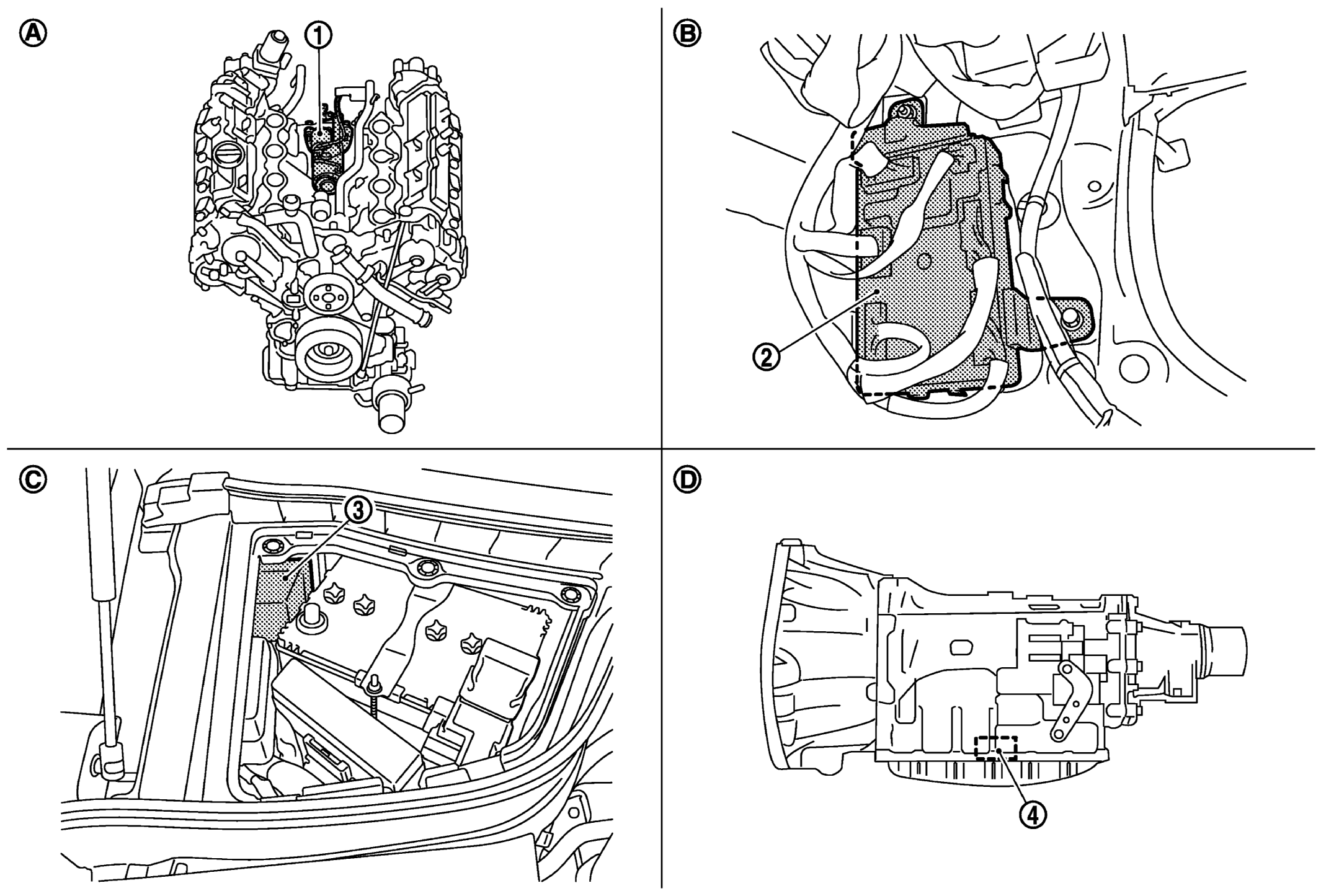

Component Location
Component Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Starter motor
2.
BCM
3.
IPDM E/R
4.
TCM
A.
Engine
B.
Dash side lower (Passenger side)
C.
Engine room dash panel RH
D.
Inside of A/T (built into A/T)
