Wiring Diagram - Engine Control System -

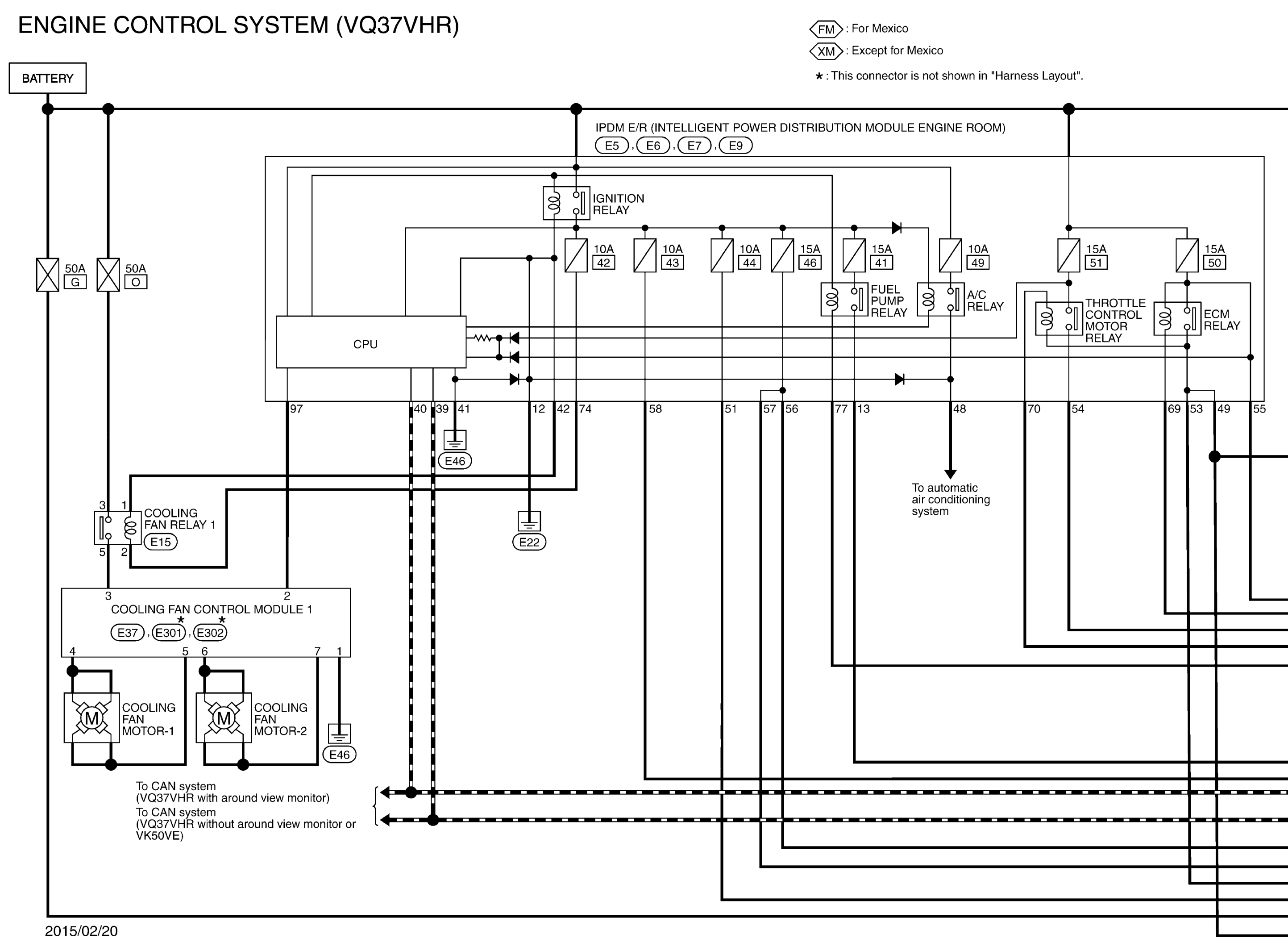

GNSJRBWD4400GB-400

Courtesy of NISSAN NORTH AMERICA, INC.

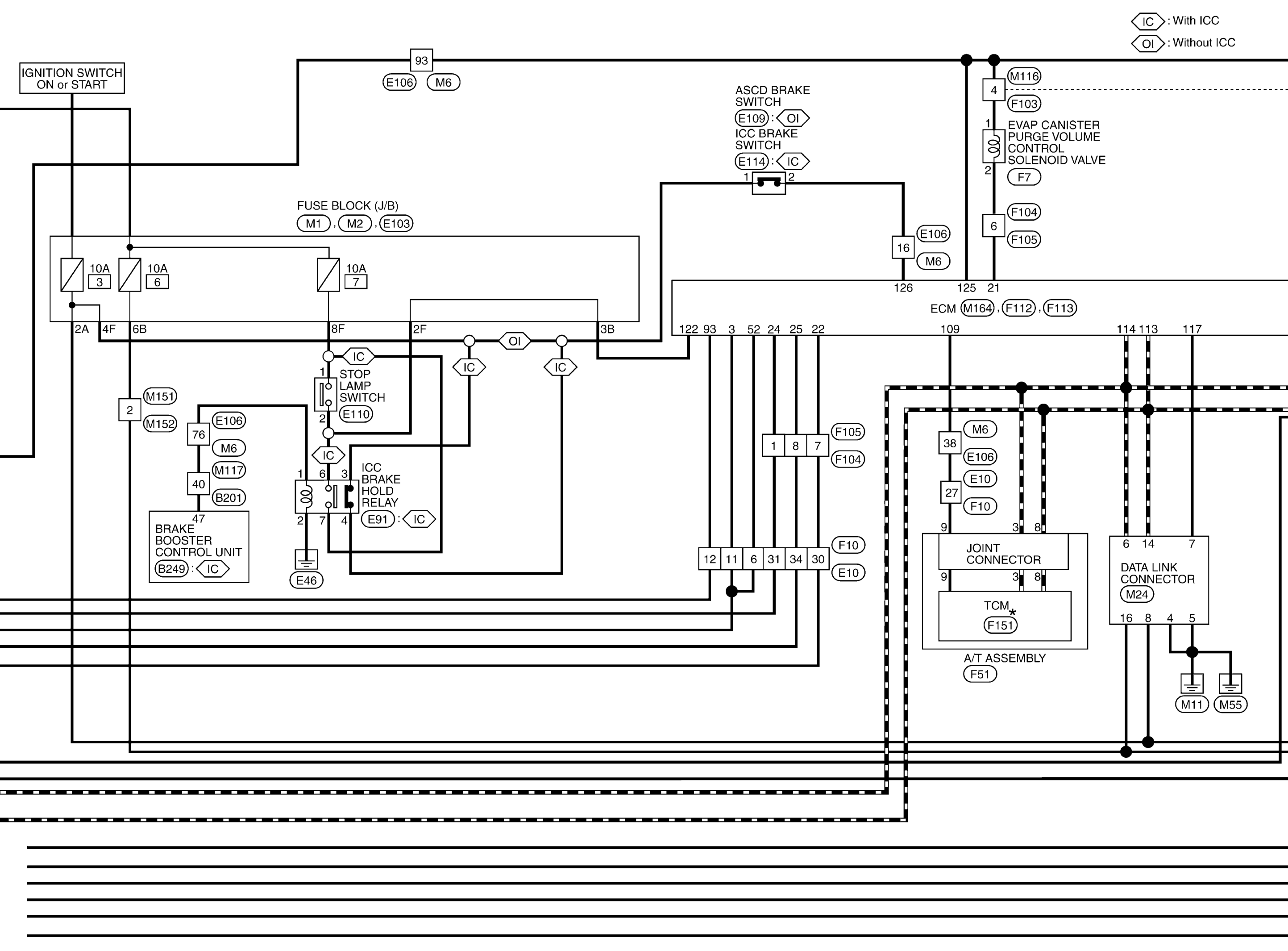

GNSJRBWD4401GB-401

Courtesy of NISSAN NORTH AMERICA, INC.

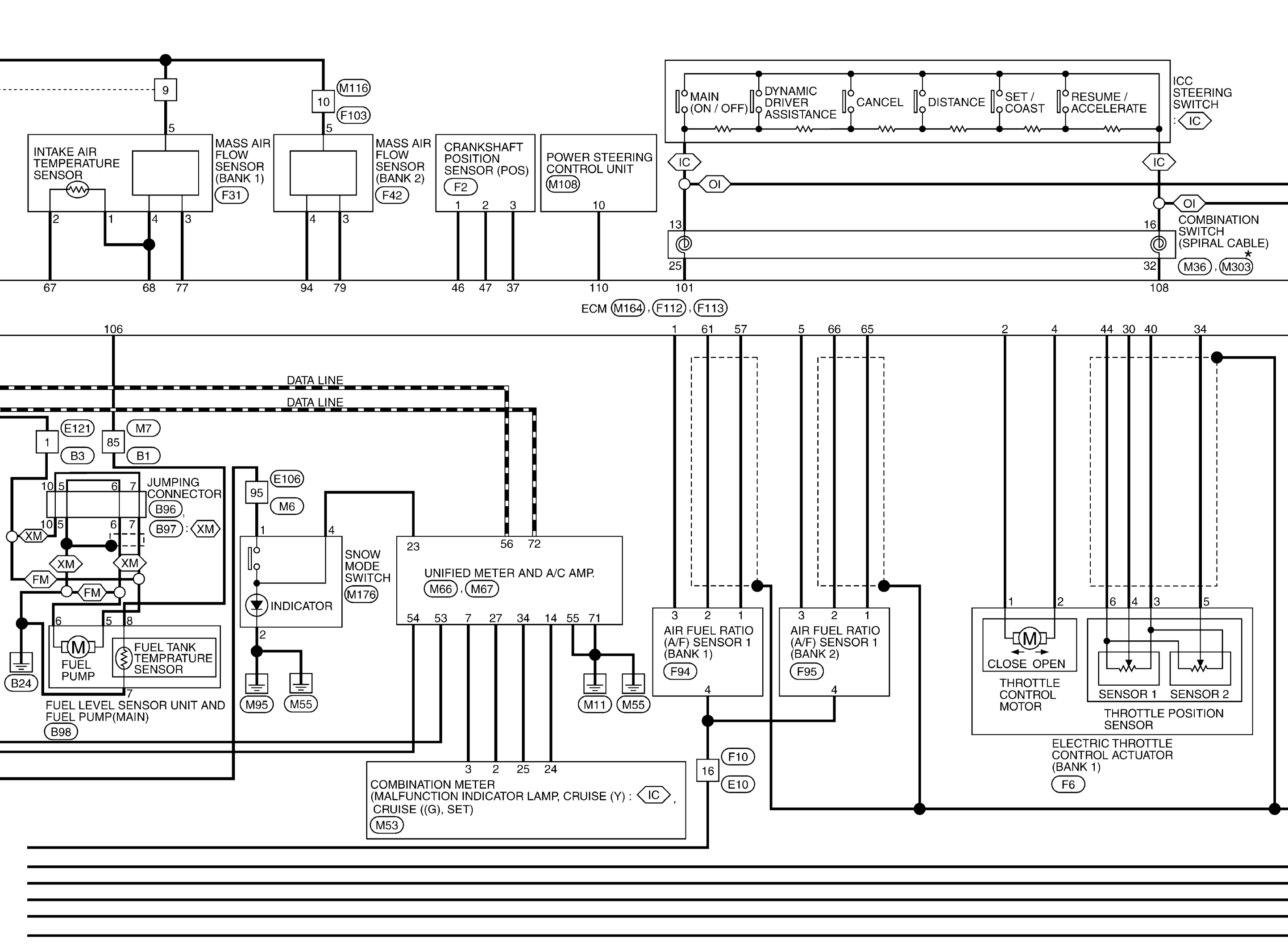

GNSJRBWD4402GB-402

Courtesy of NISSAN NORTH AMERICA, INC.

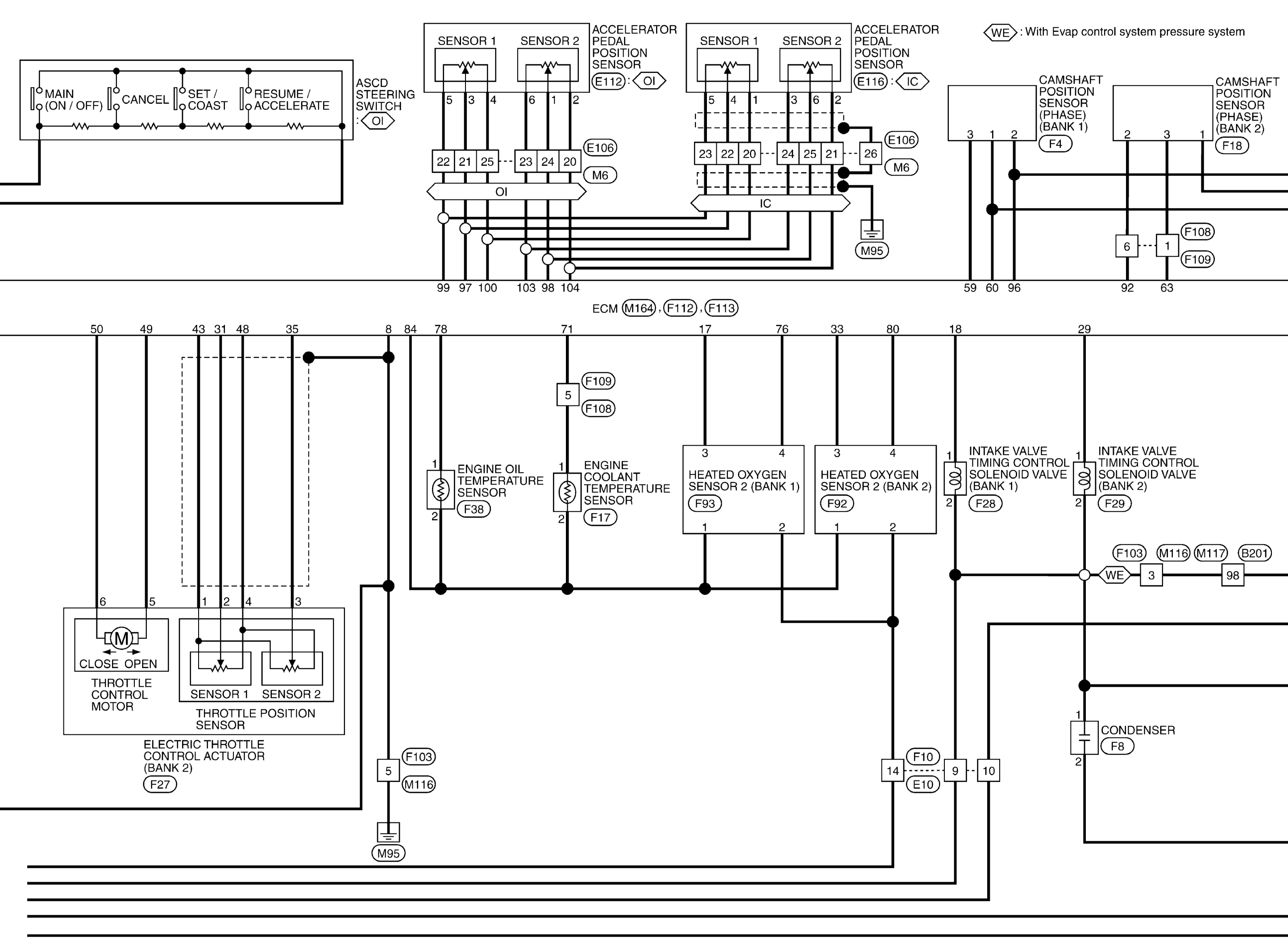

GNSJRBWD4403GB-403

Courtesy of NISSAN NORTH AMERICA, INC.

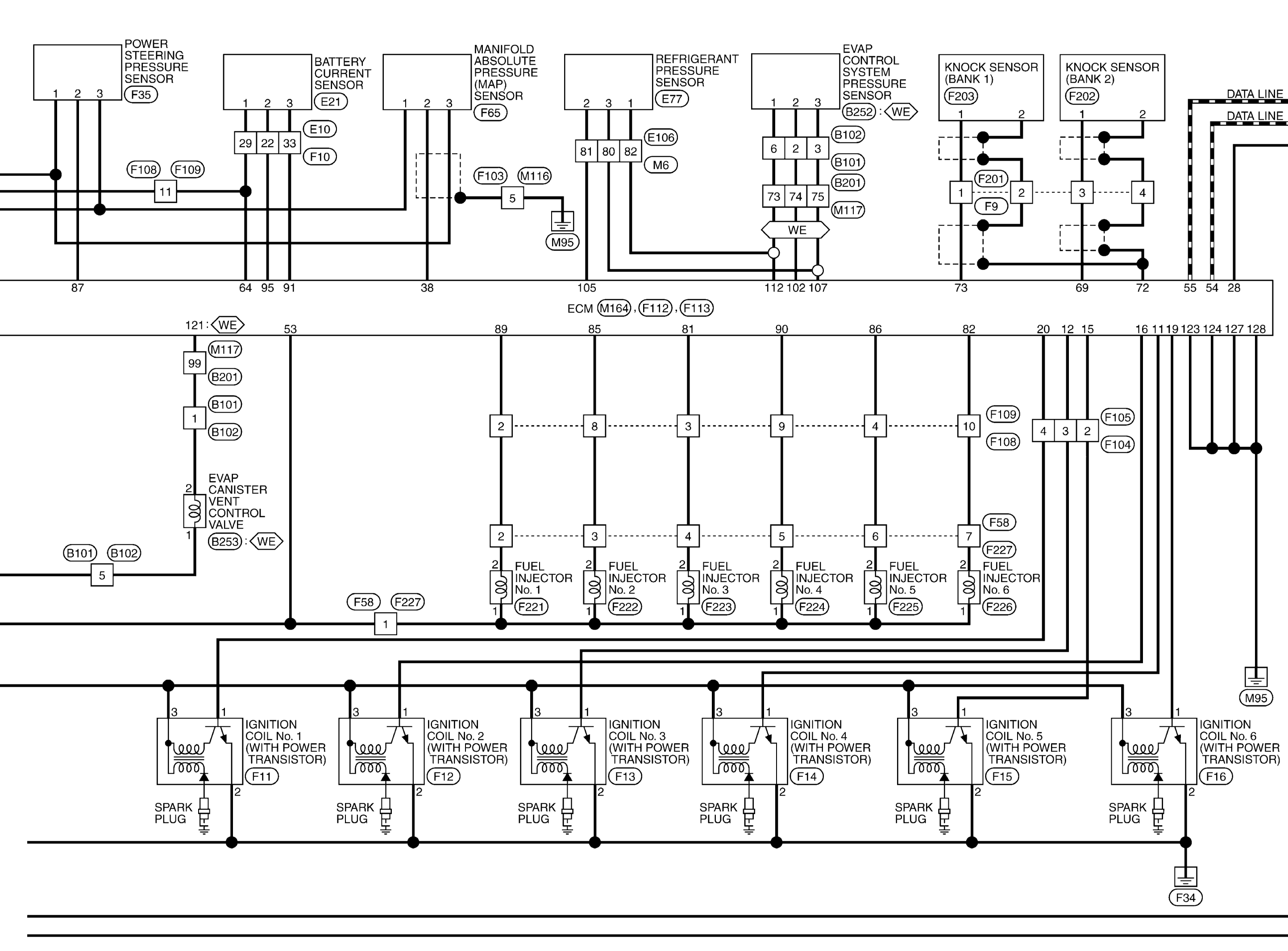

GNSJRBWD4404GB-404

Courtesy of NISSAN NORTH AMERICA, INC.

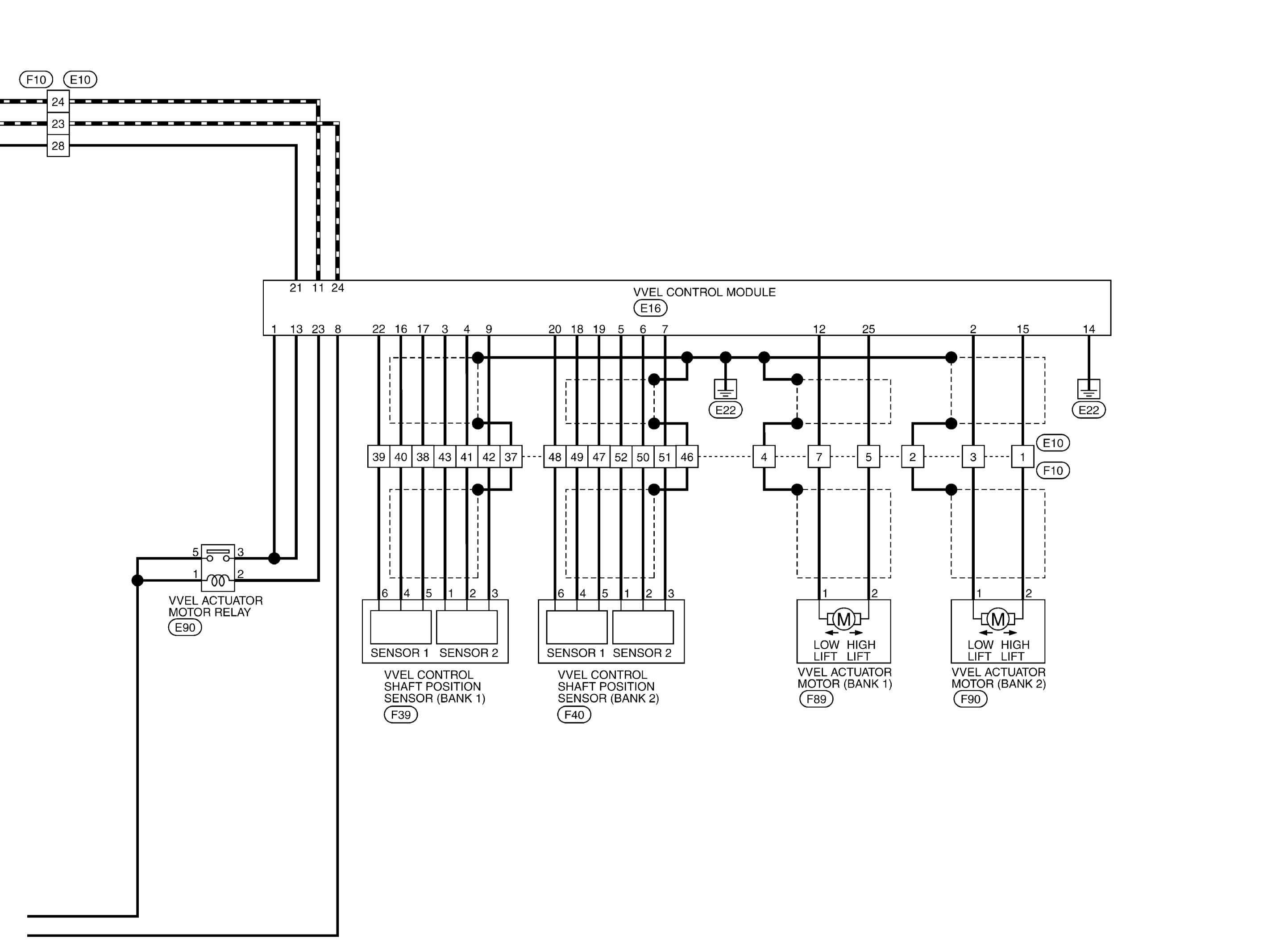

GNSJRBWD4405GB-405

Courtesy of NISSAN NORTH AMERICA, INC.

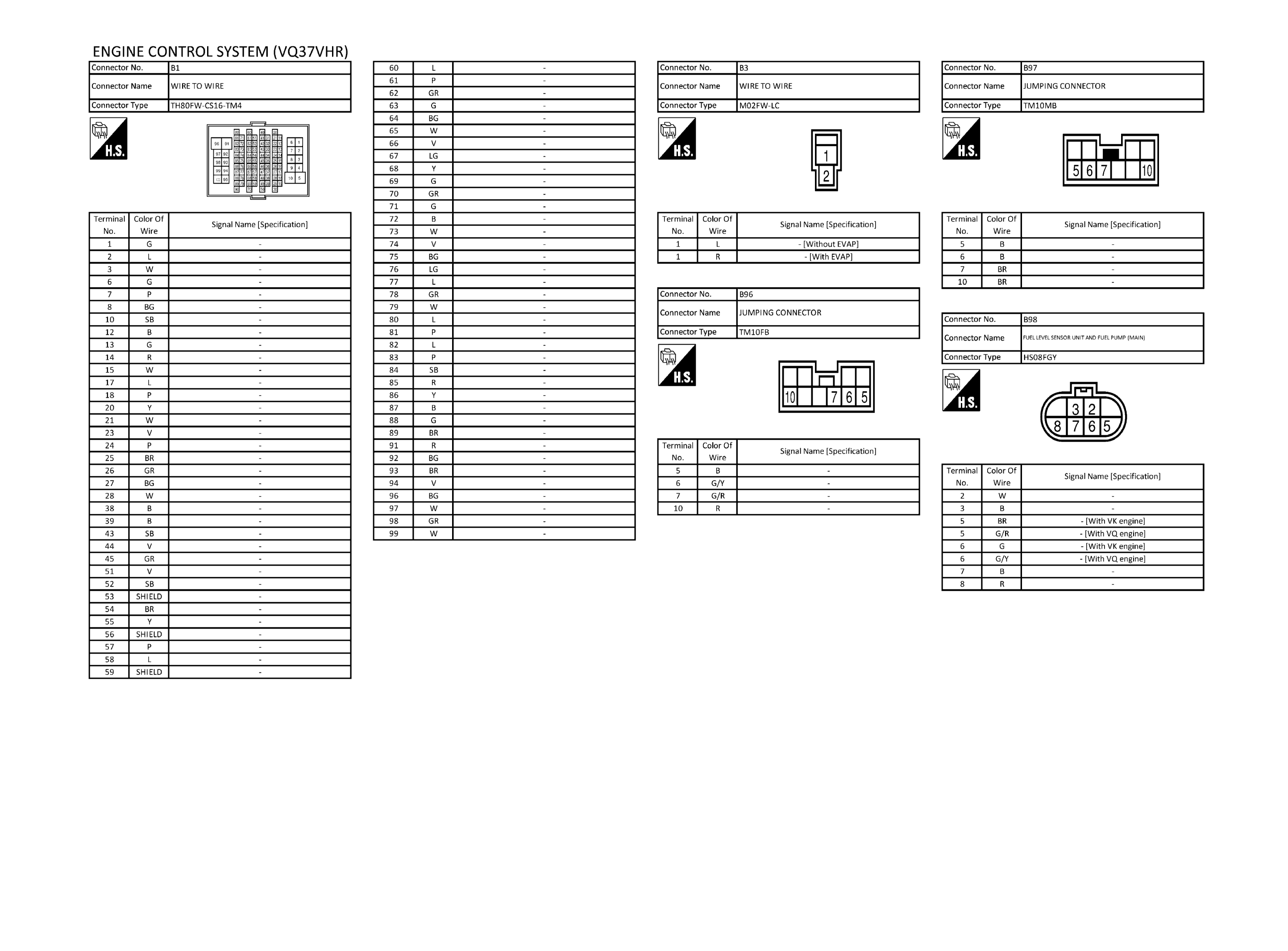

GNSJRBWD4406GB-406

Courtesy of NISSAN NORTH AMERICA, INC.

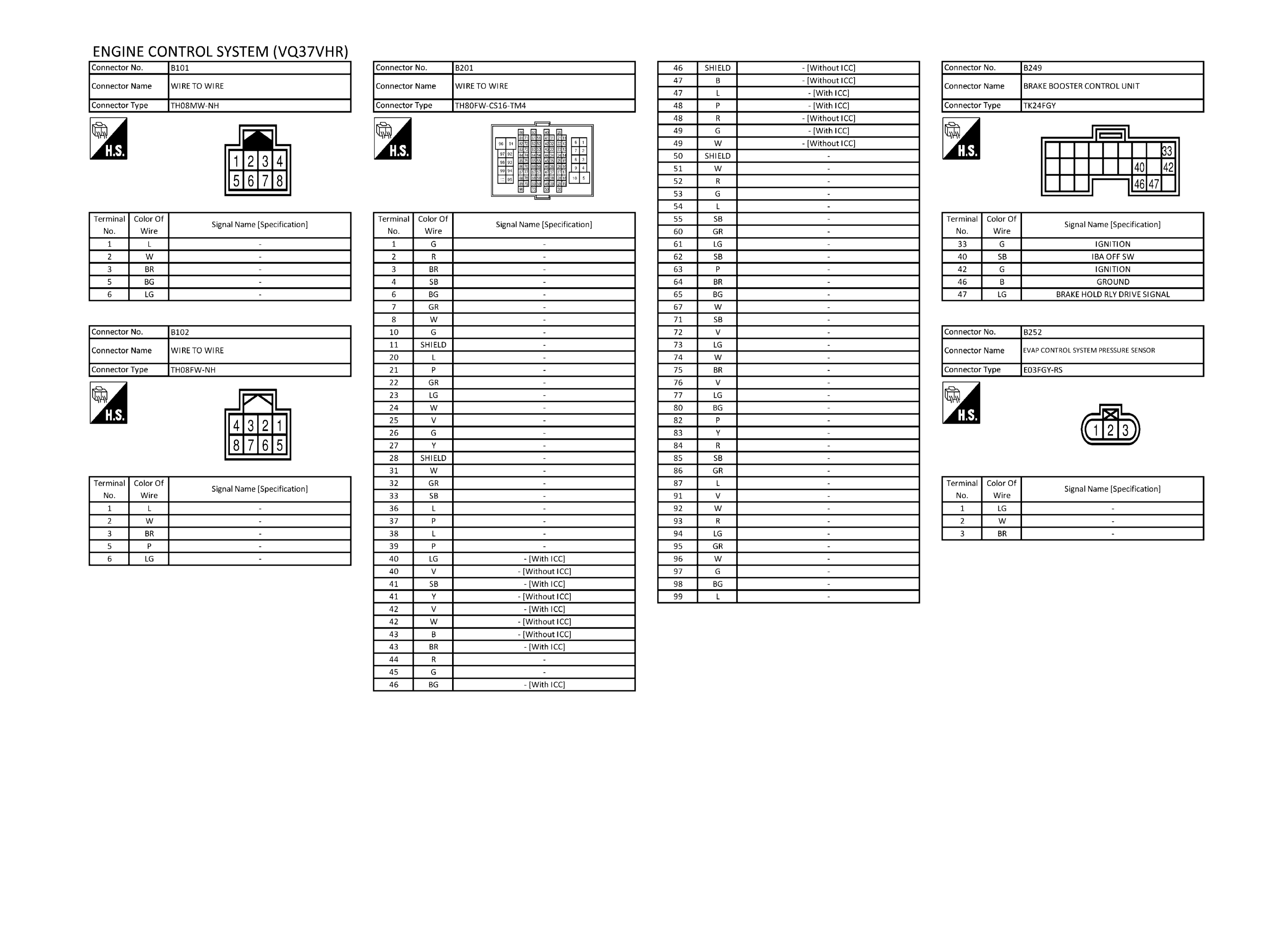

GNSJRBWD4407GB-407

Courtesy of NISSAN NORTH AMERICA, INC.

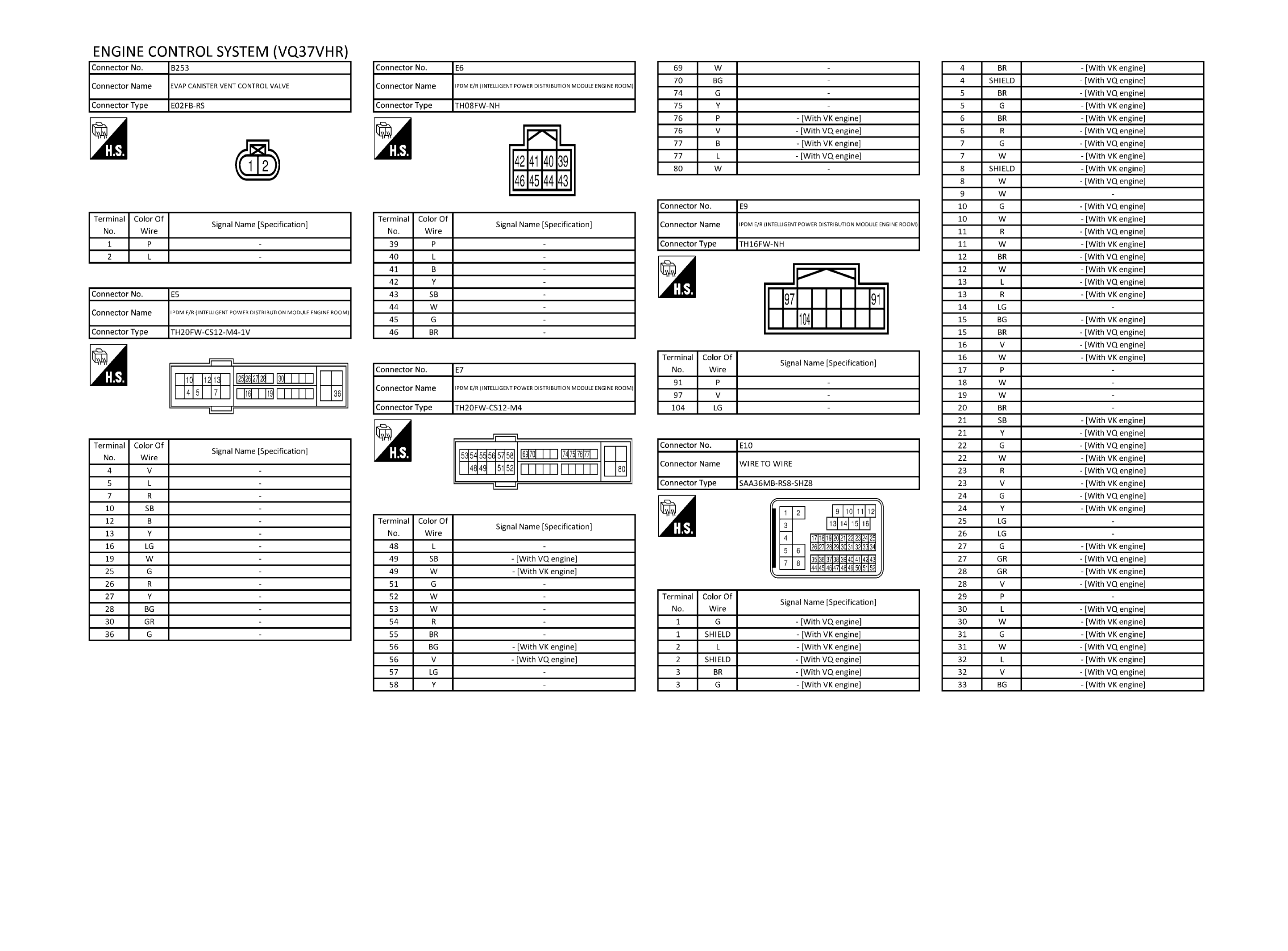

GNSJRBWD4408GB-408

Courtesy of NISSAN NORTH AMERICA, INC.

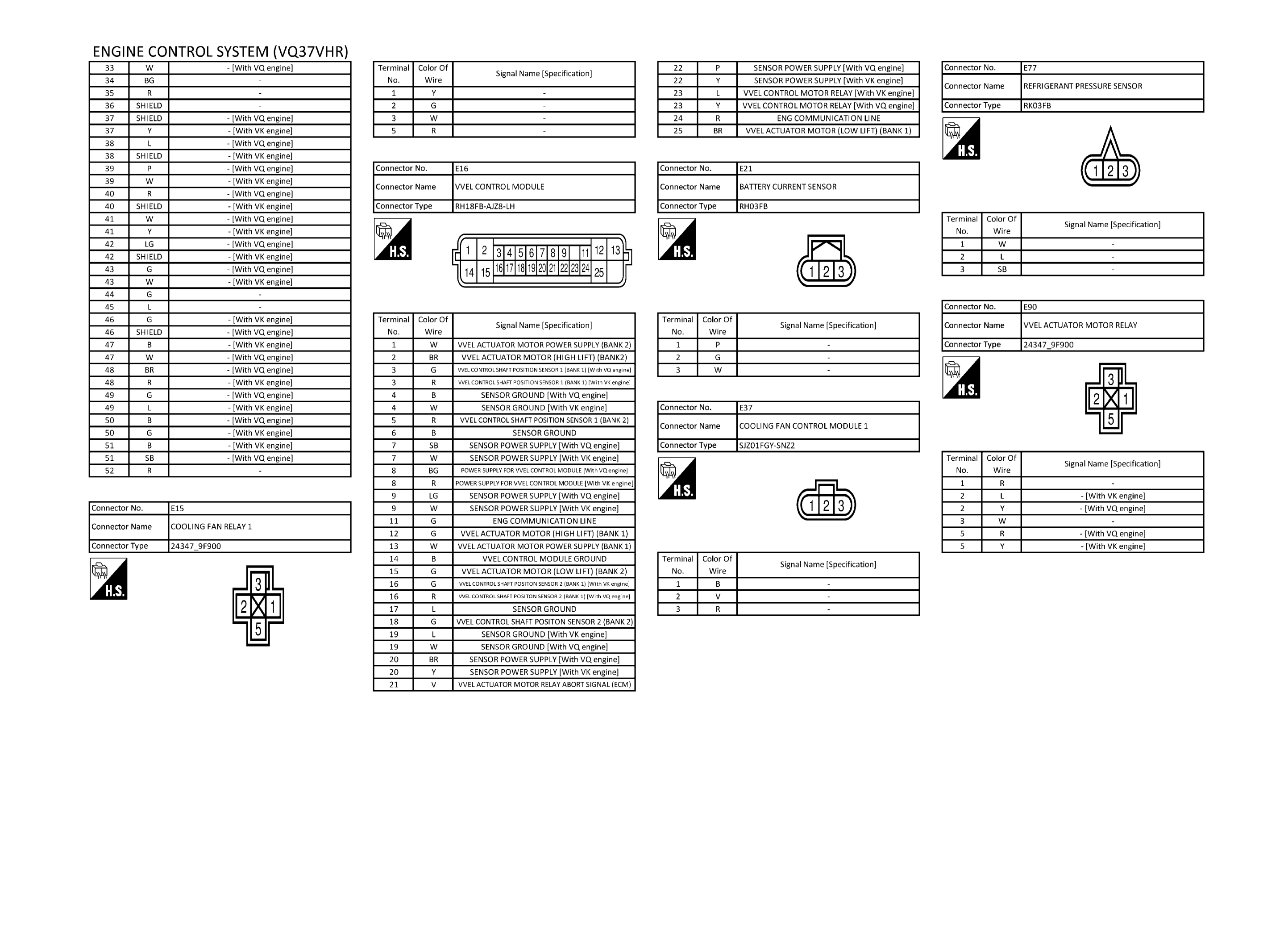

GNSJRBWD4409GB-409

Courtesy of NISSAN NORTH AMERICA, INC.

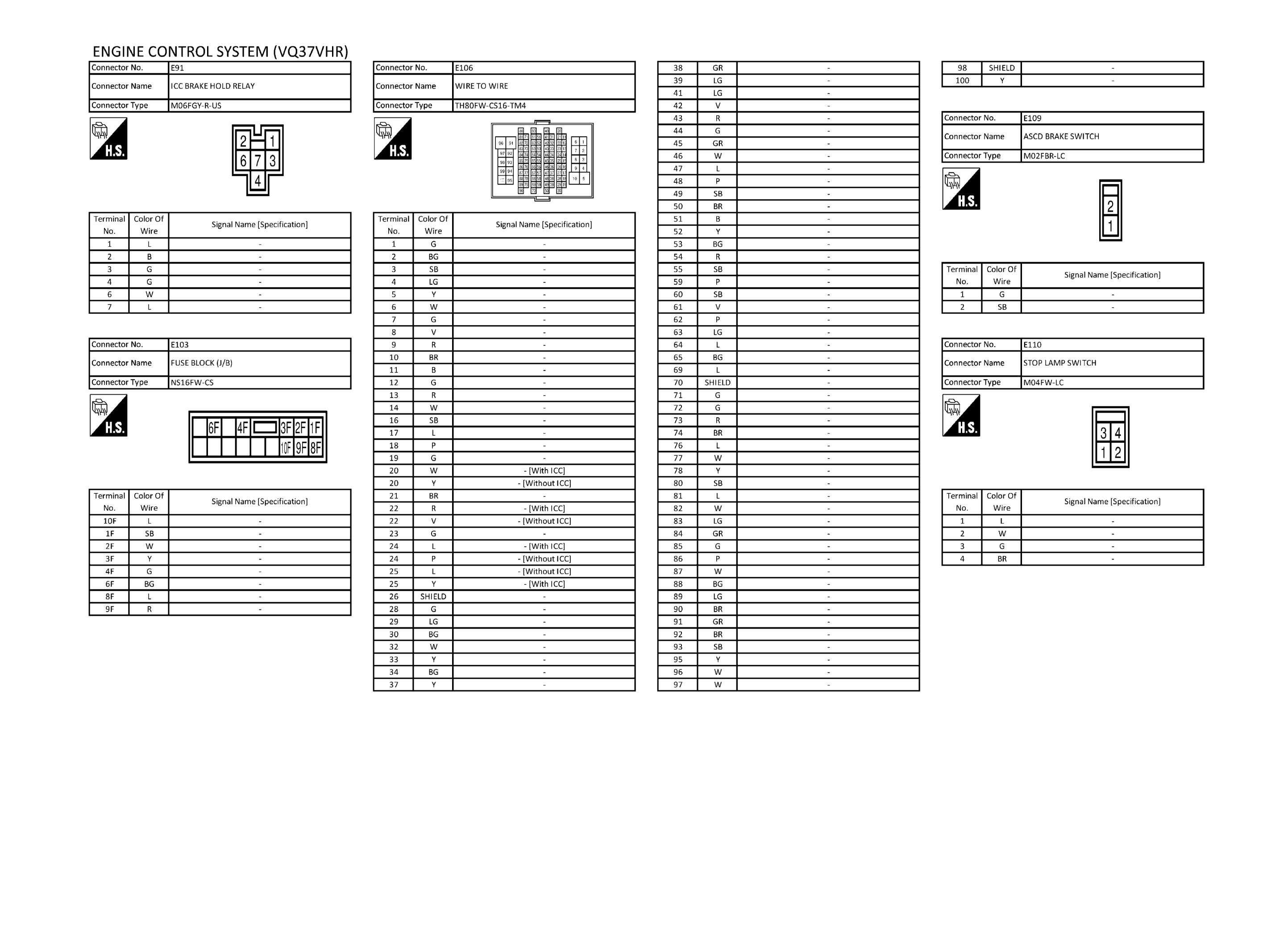

GNSJRBWD4410GB-410

Courtesy of NISSAN NORTH AMERICA, INC.

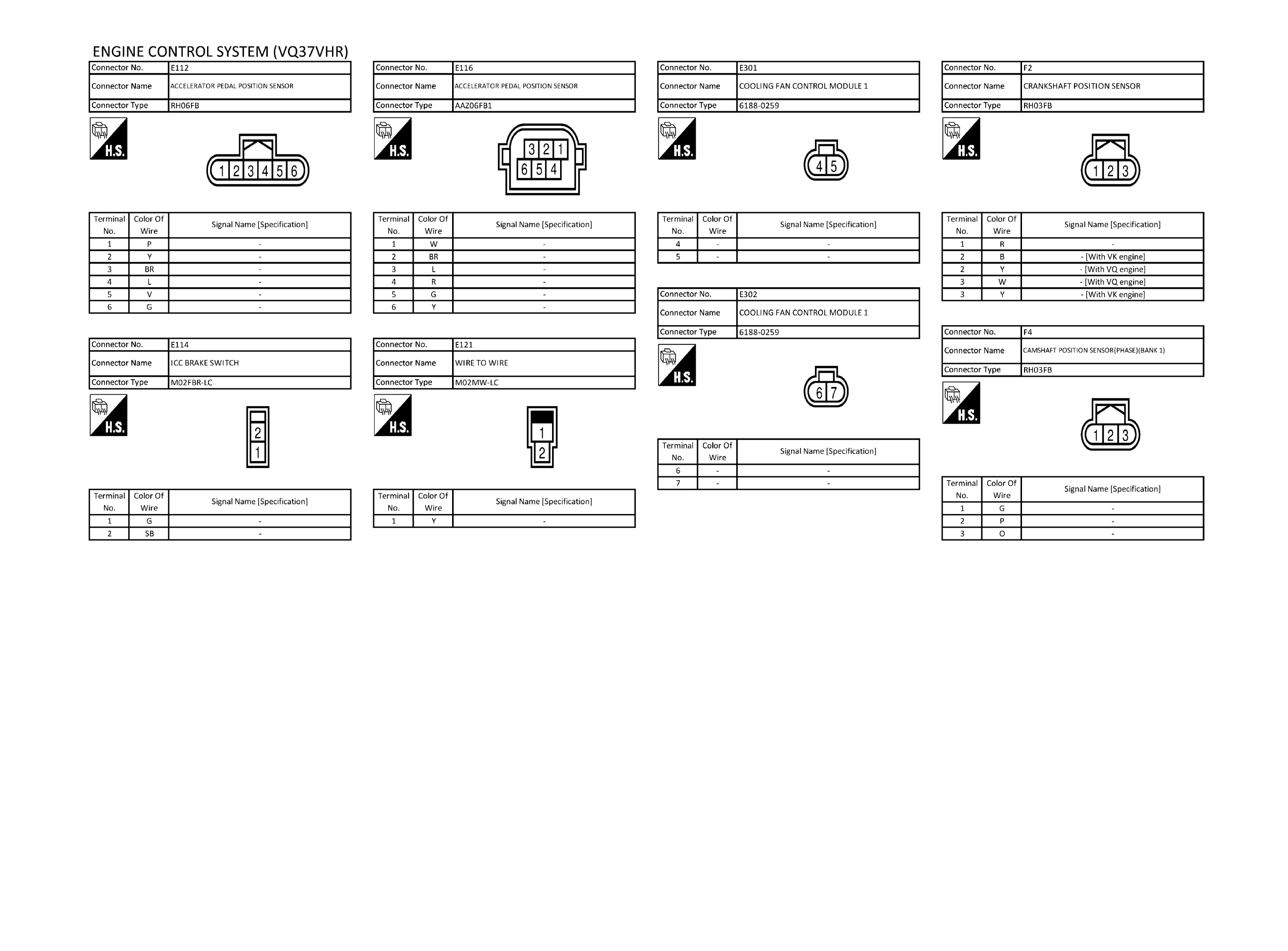

GNSJRBWD4411GB-411

Courtesy of NISSAN NORTH AMERICA, INC.

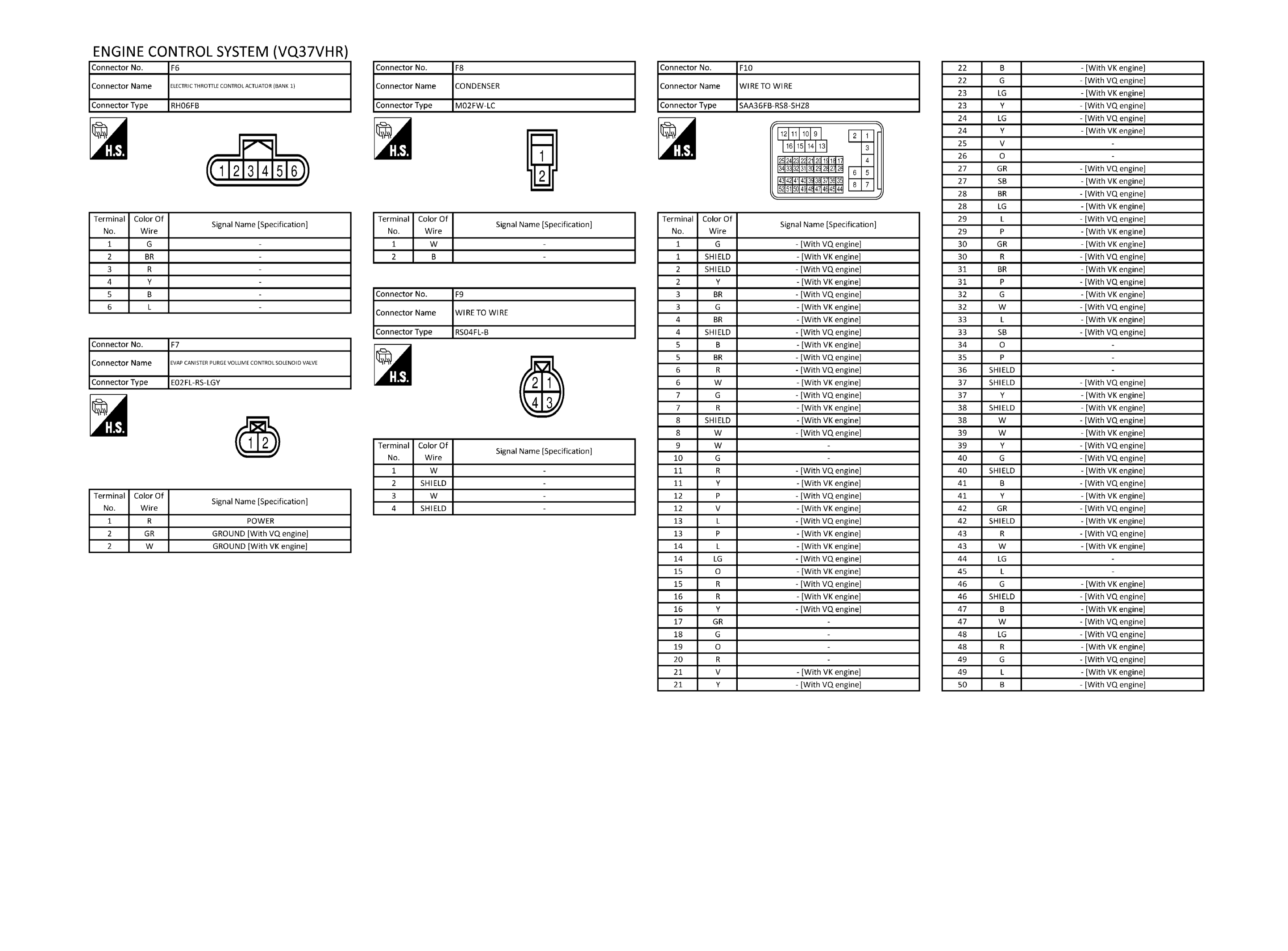

GNSJRBWD4412GB-412

Courtesy of NISSAN NORTH AMERICA, INC.

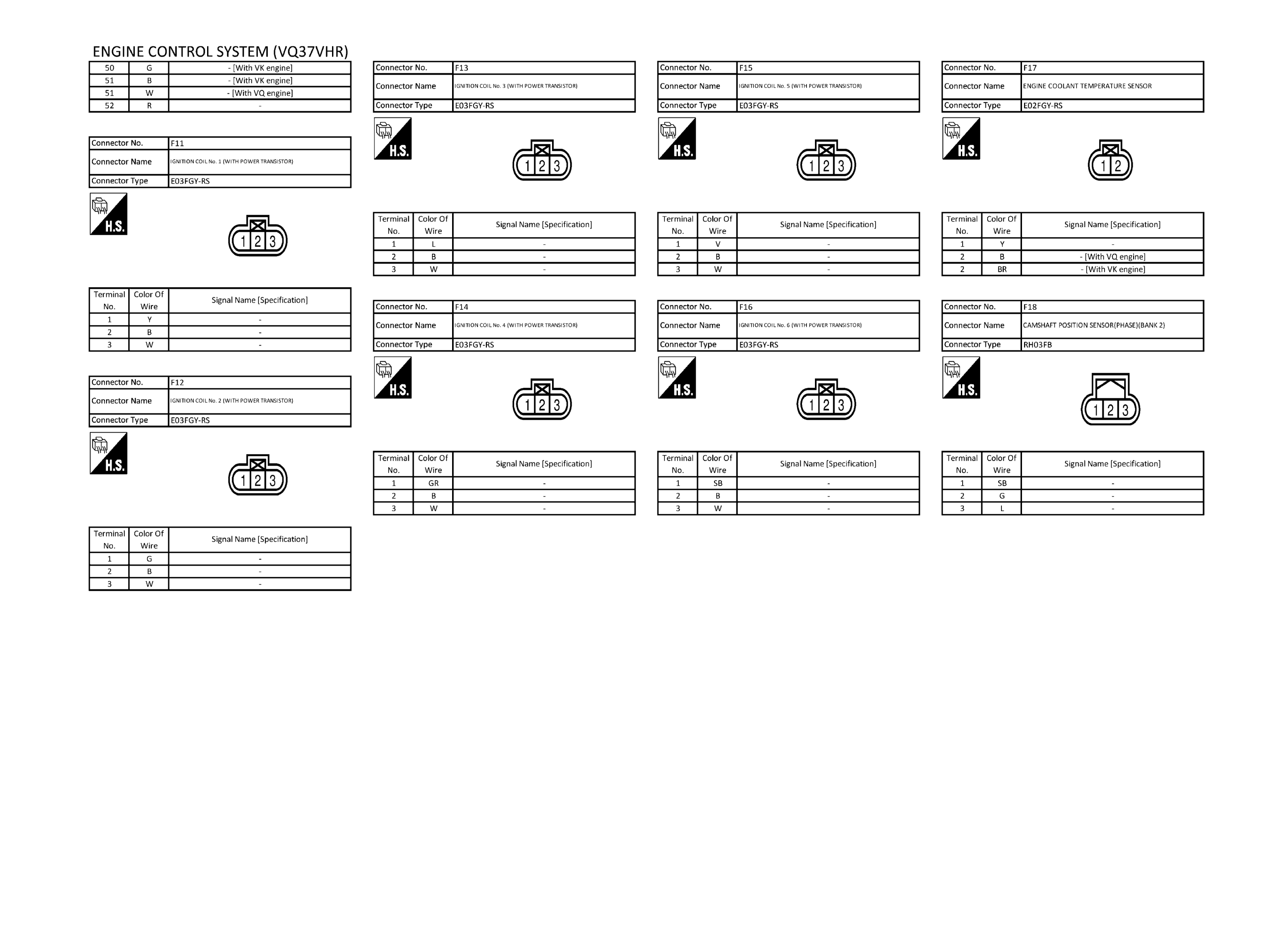

GNSJRBWD4413GB-413

Courtesy of NISSAN NORTH AMERICA, INC.

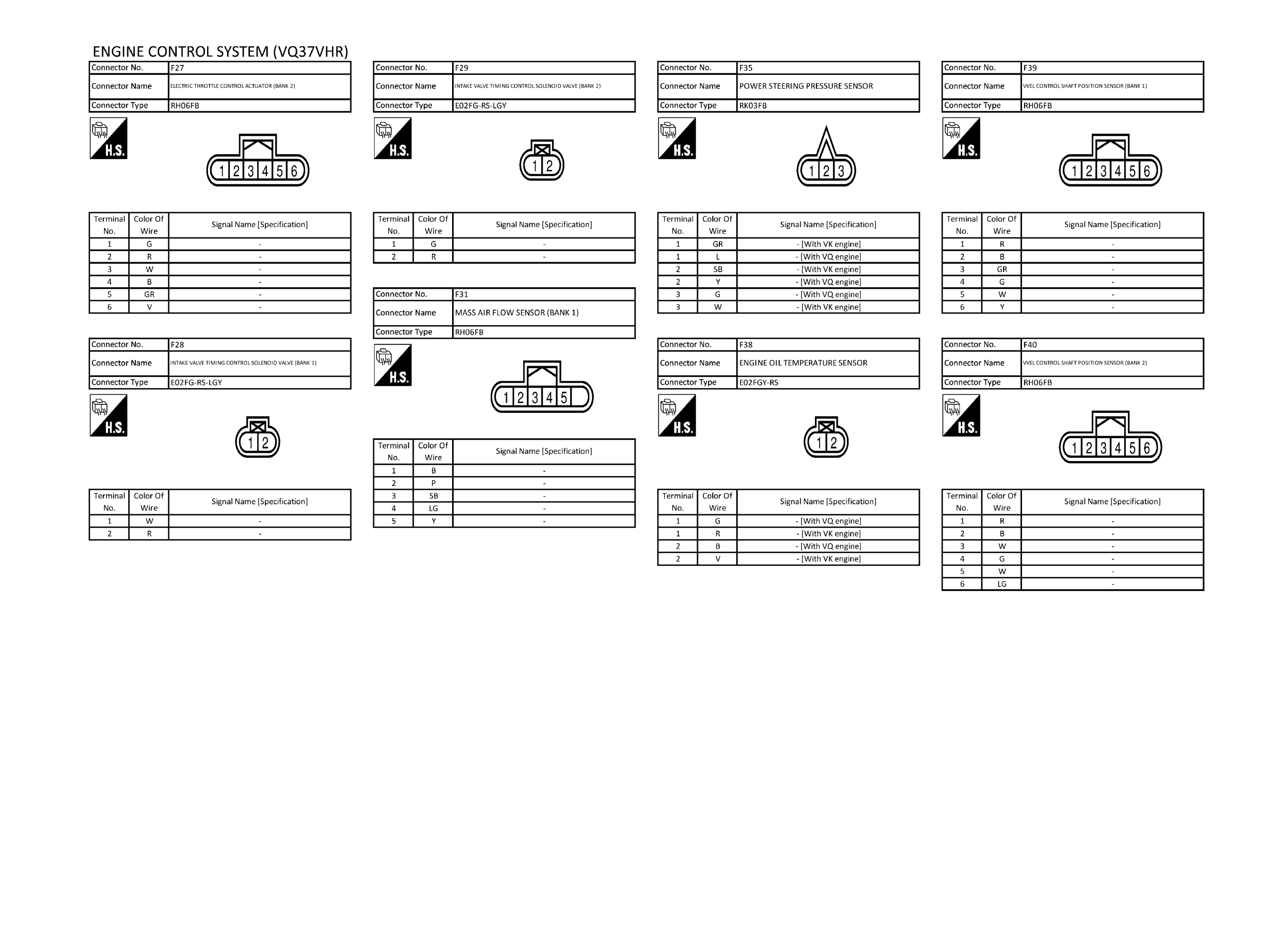

GNSJRBWD4414GB-414

Courtesy of NISSAN NORTH AMERICA, INC.

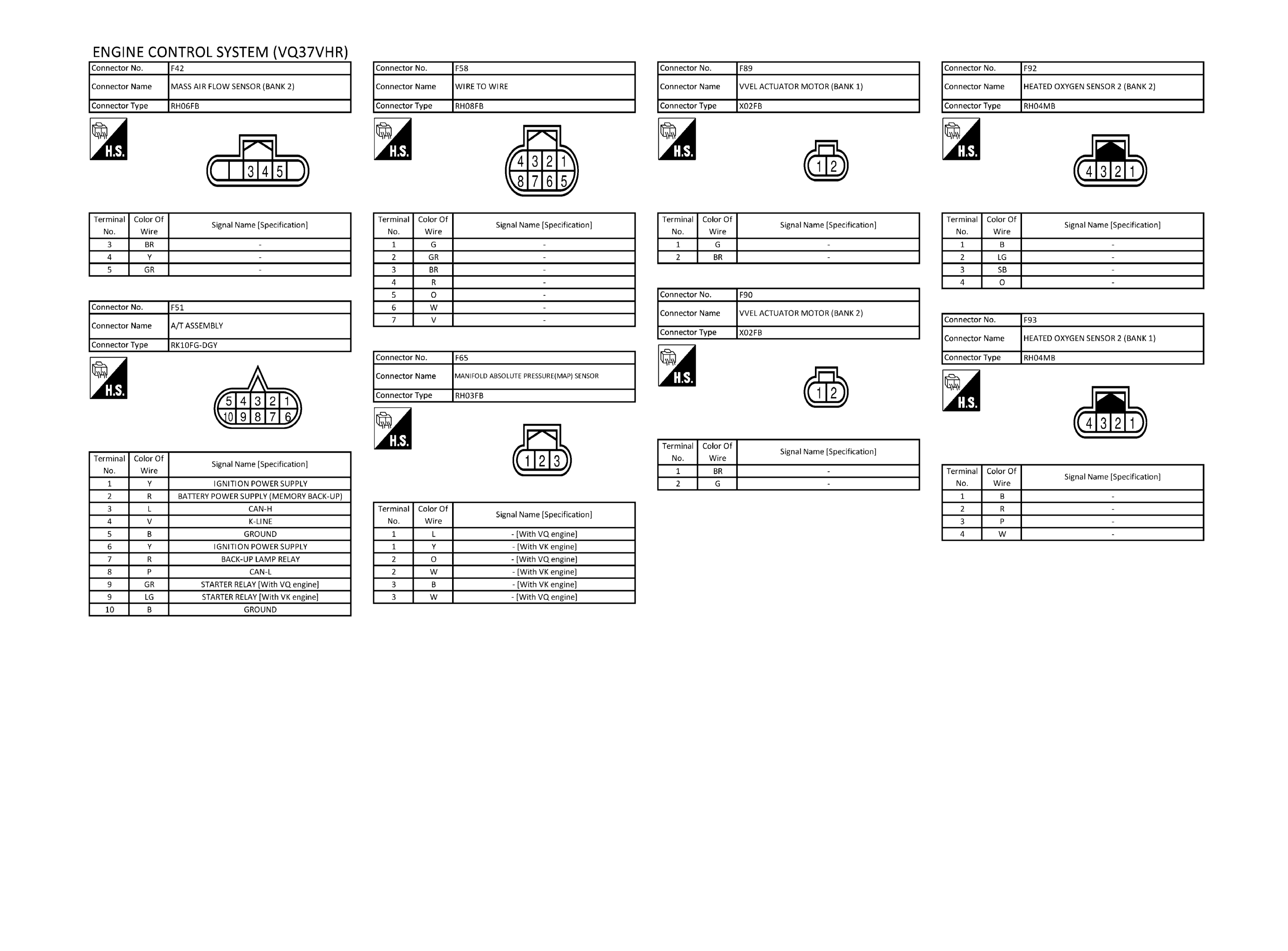

GNSJRBWD4415GB-415

Courtesy of NISSAN NORTH AMERICA, INC.

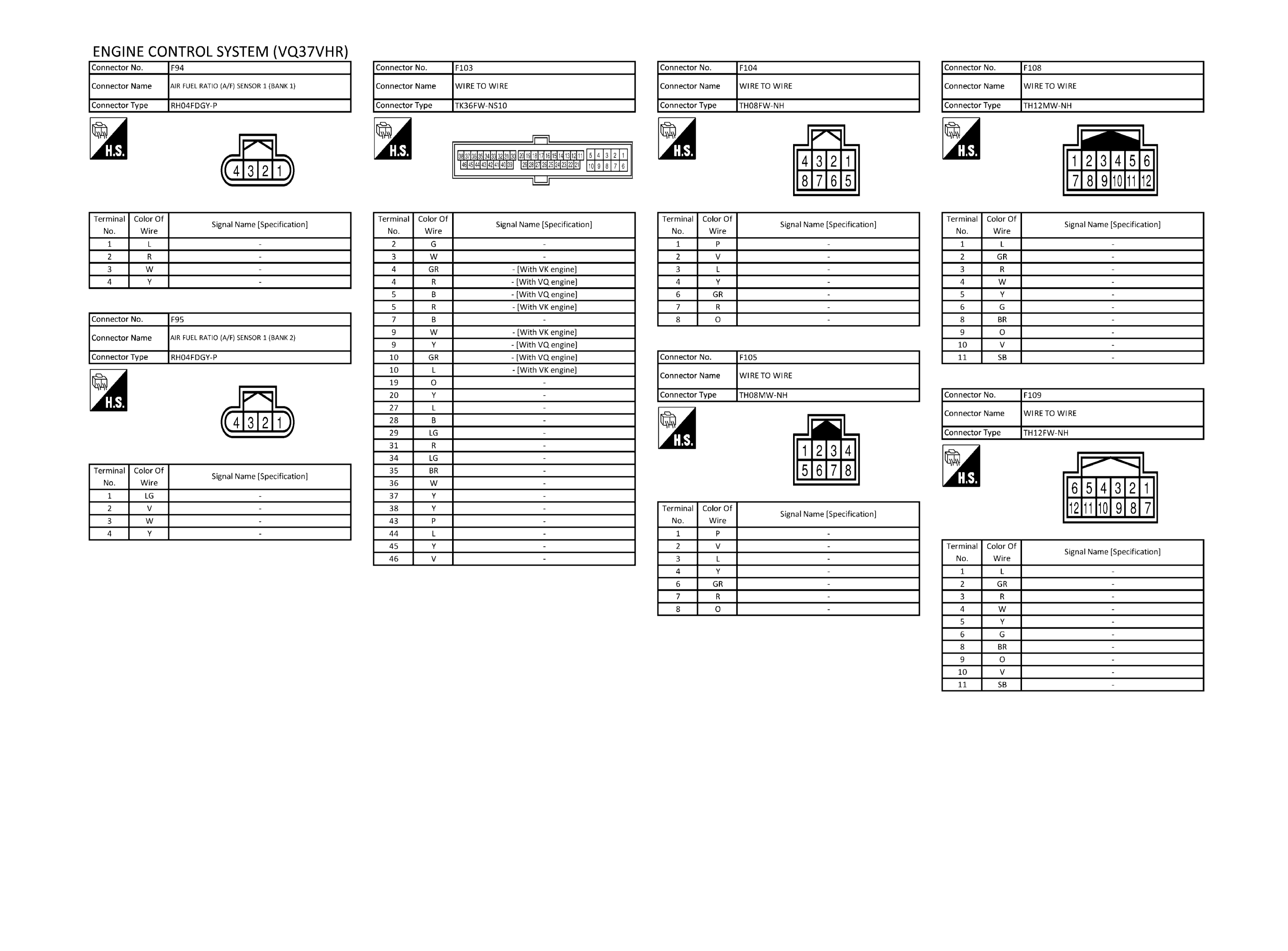

GNSJRBWD4416GB-416

Courtesy of NISSAN NORTH AMERICA, INC.

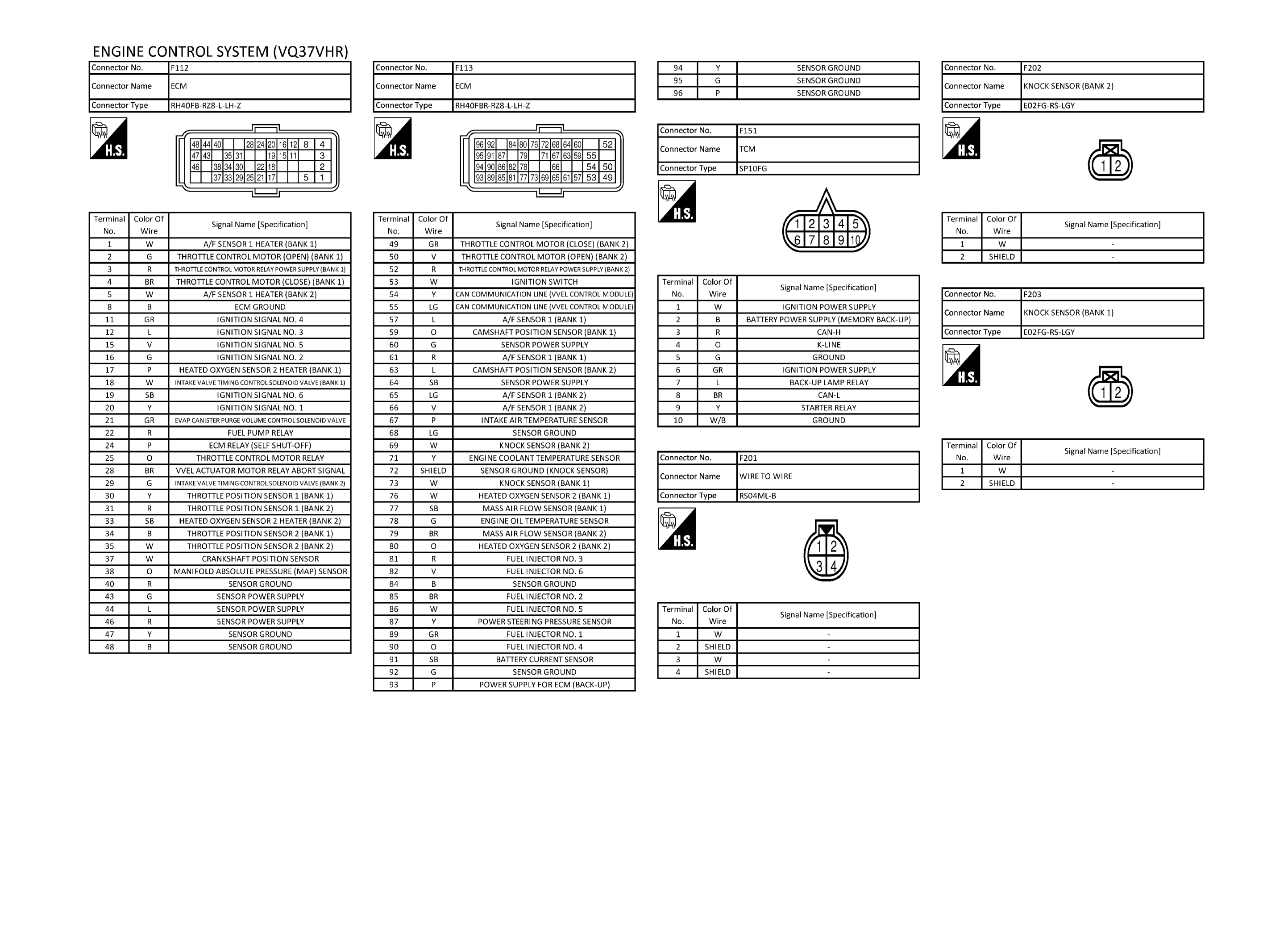

GNSJRBWD4417GB-417

Courtesy of NISSAN NORTH AMERICA, INC.

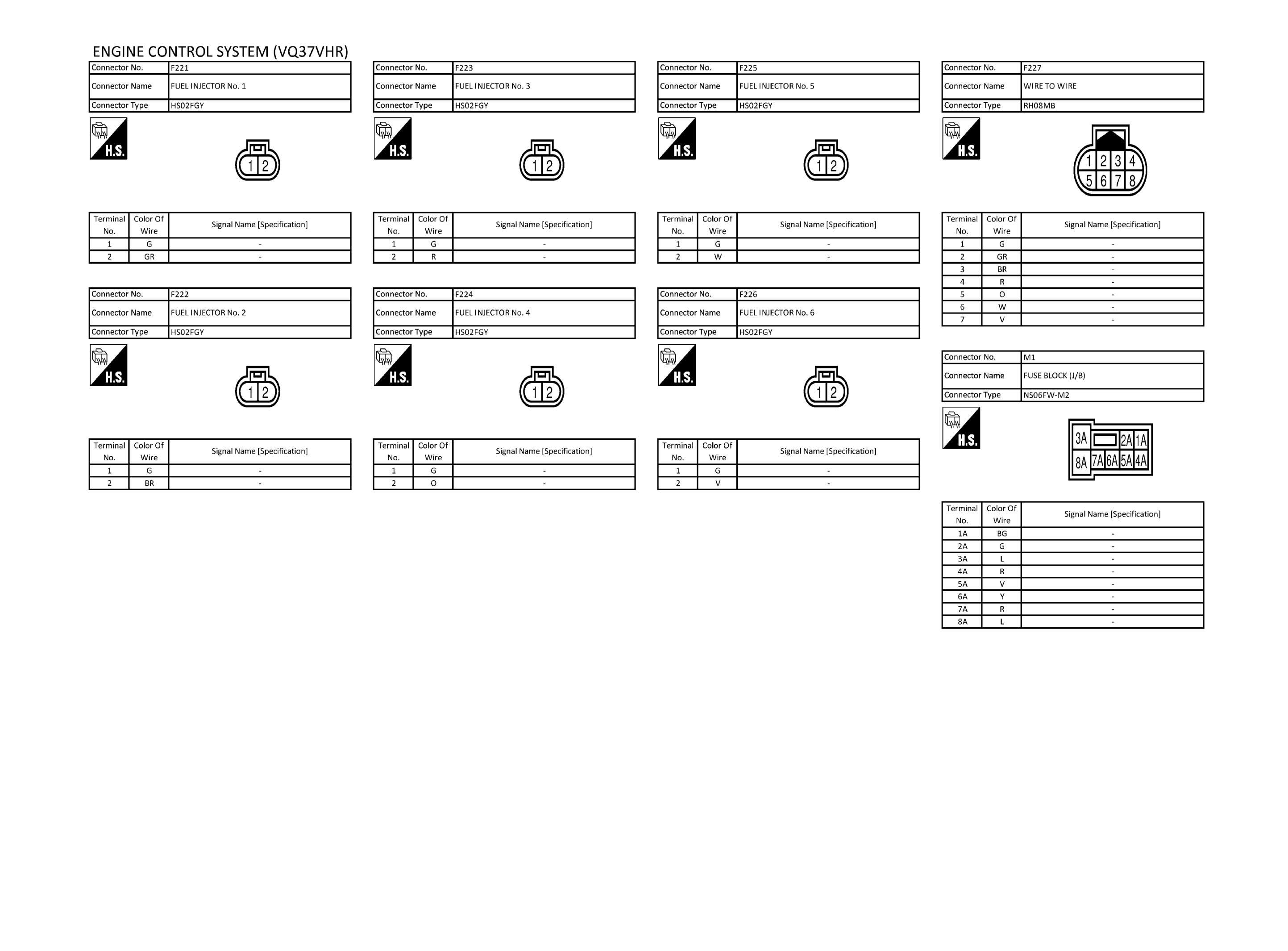

GNSJRBWD4418GB-418

Courtesy of NISSAN NORTH AMERICA, INC.

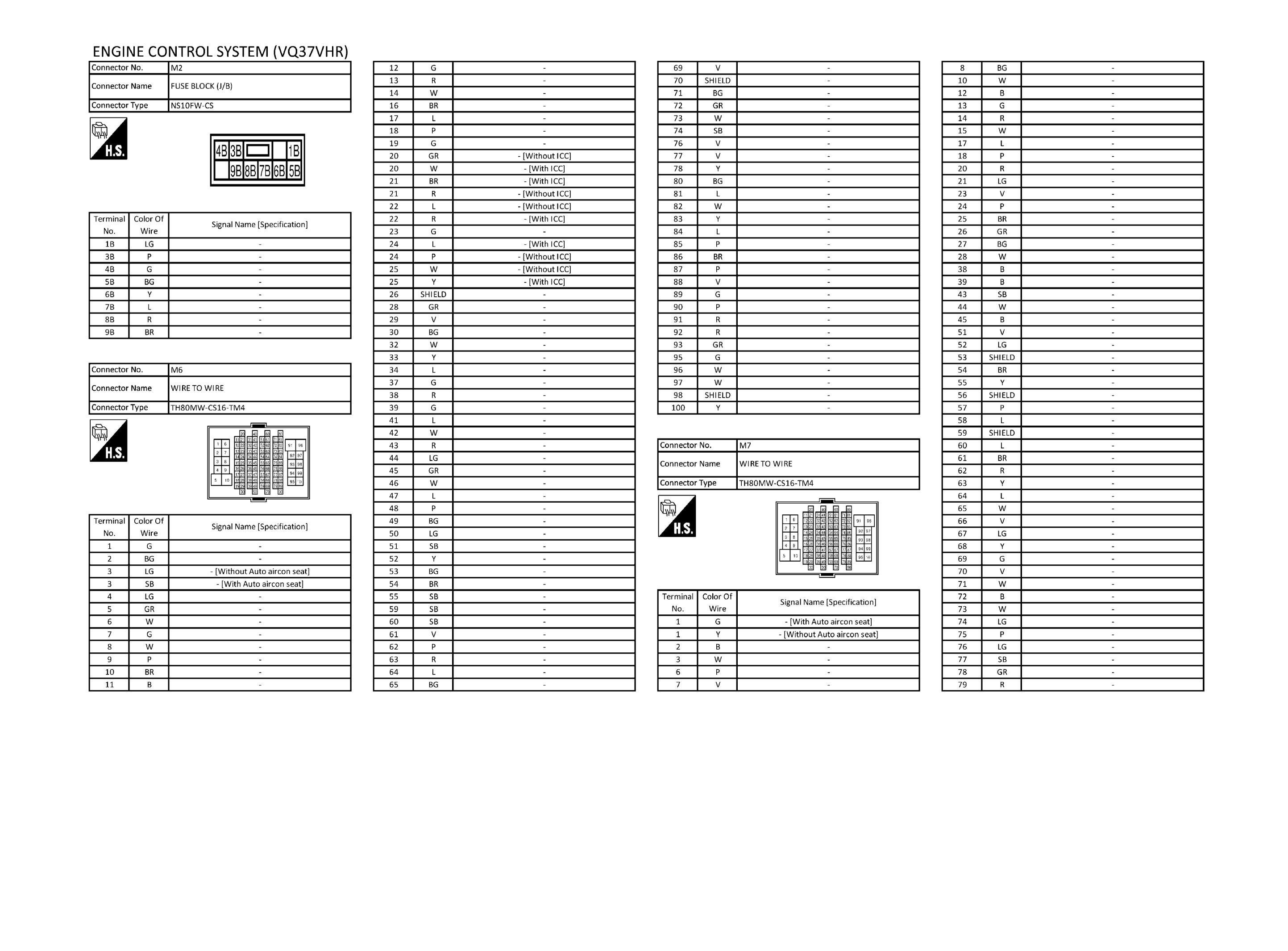

GNSJRBWD4419GB-419

Courtesy of NISSAN NORTH AMERICA, INC.

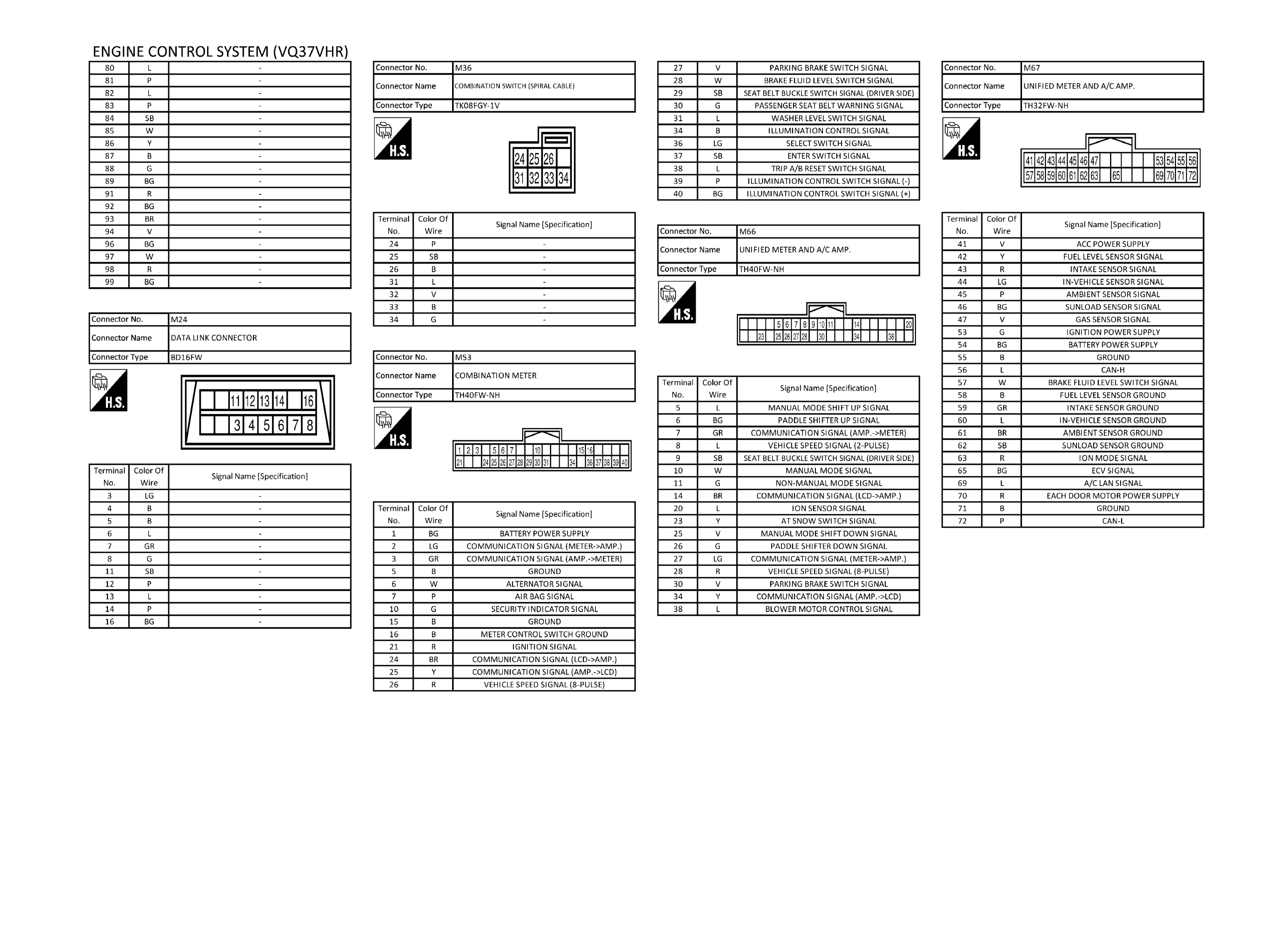

GNSJRBWD4420GB-420

Courtesy of NISSAN NORTH AMERICA, INC.

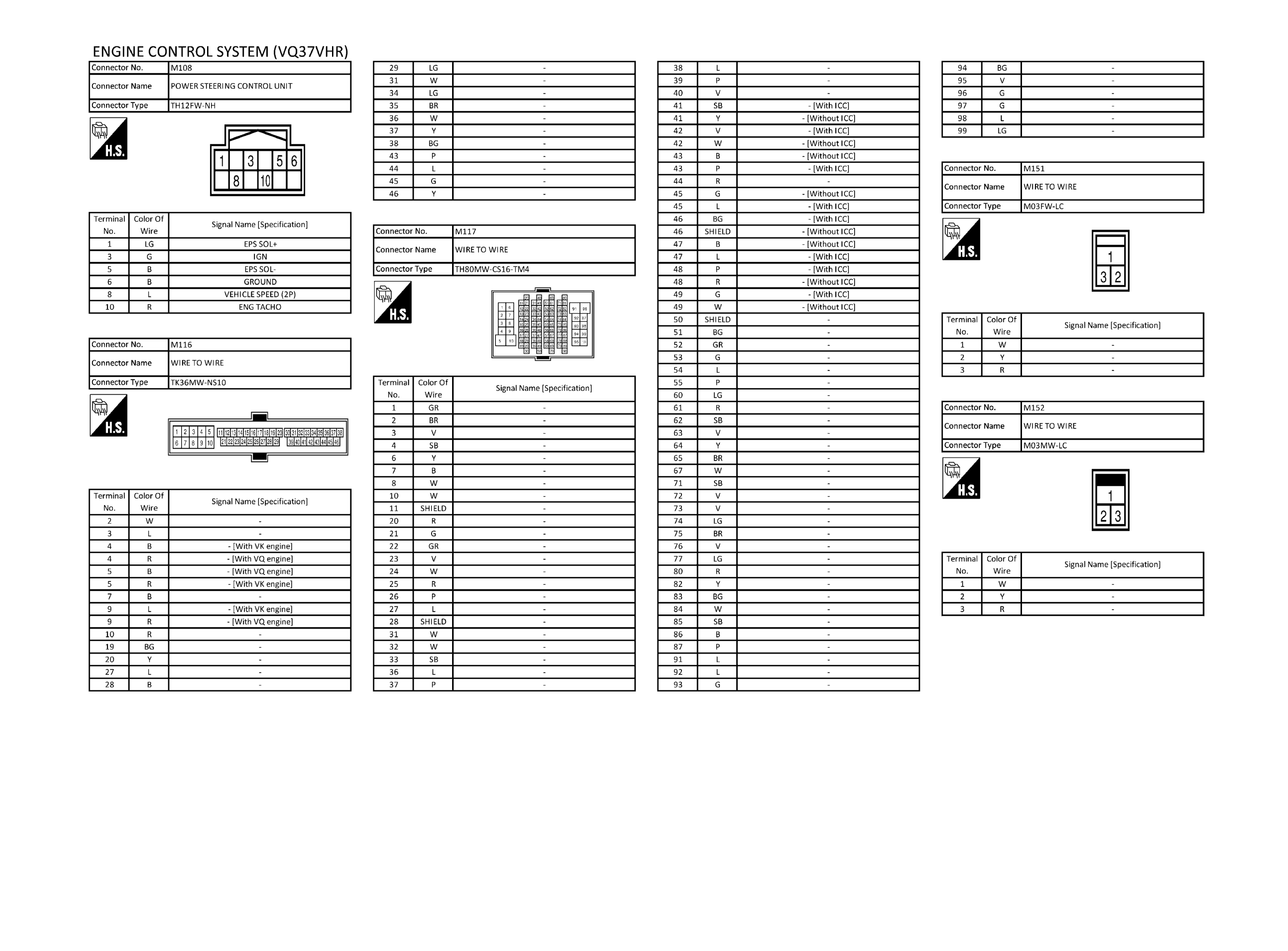

GNSJRBWD4421GB-421

Courtesy of NISSAN NORTH AMERICA, INC.

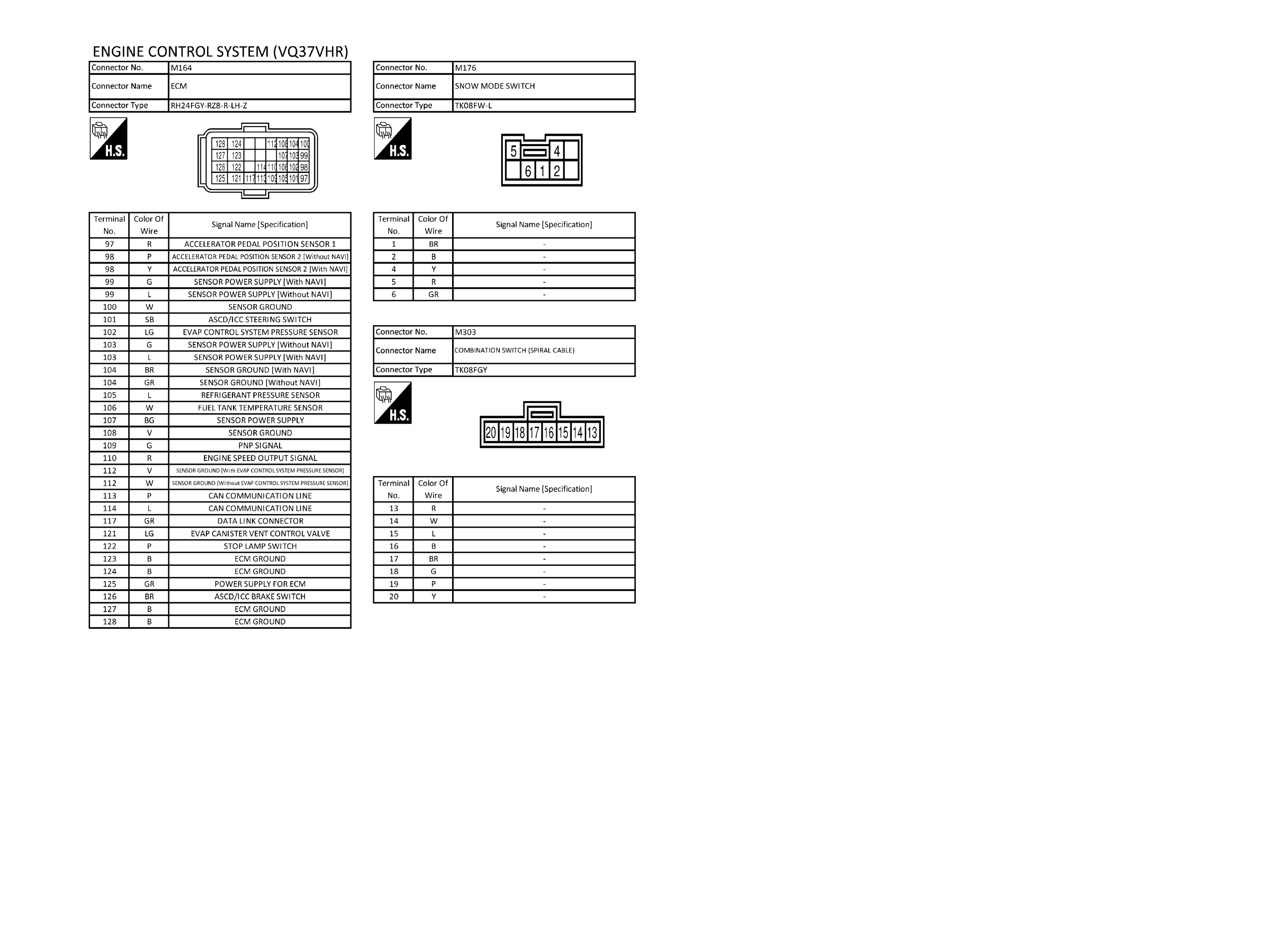

GNSJRBWD4422GB-422

Courtesy of NISSAN NORTH AMERICA, INC.
