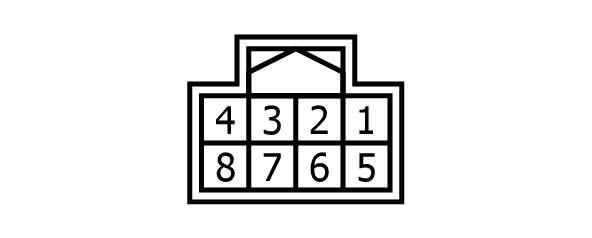

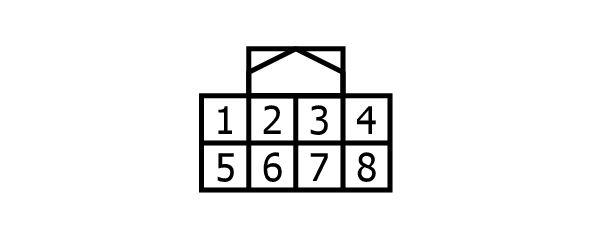

Lane Camera Unit Connector End View (R21)
Connector Types:
TH08FW-NH
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
GROUND |
| 2 |
SB |
WARNING SYSTEMS ON INDICATOR |
| 3 |
V |
WARNING SYSTEMS SWITCH |
| 4 |
L |
CAN-H |
| 5 |
B |
GROUND |
| 6 |
R |
LANE DEPARTURE WARNING BUZZER |
| 7 |
Y |
IGNITION POWER SUPPLY |
| 8 |
P |
CAN-L |
