ASCD Brake Switch Connector End View (E109)

Connector Types:  M02FBR-LC

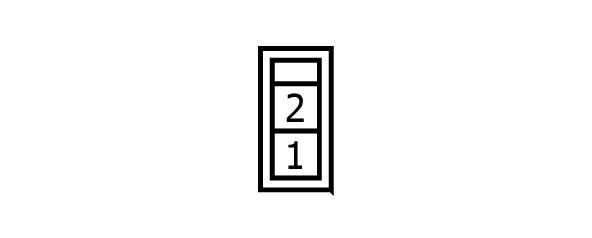

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

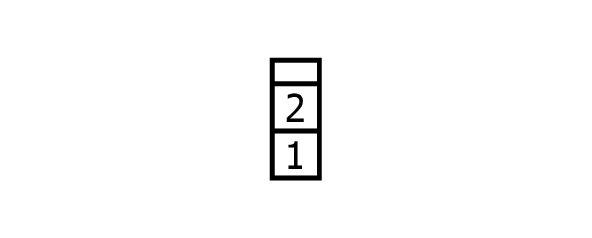

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	G	-
2	SB	-
