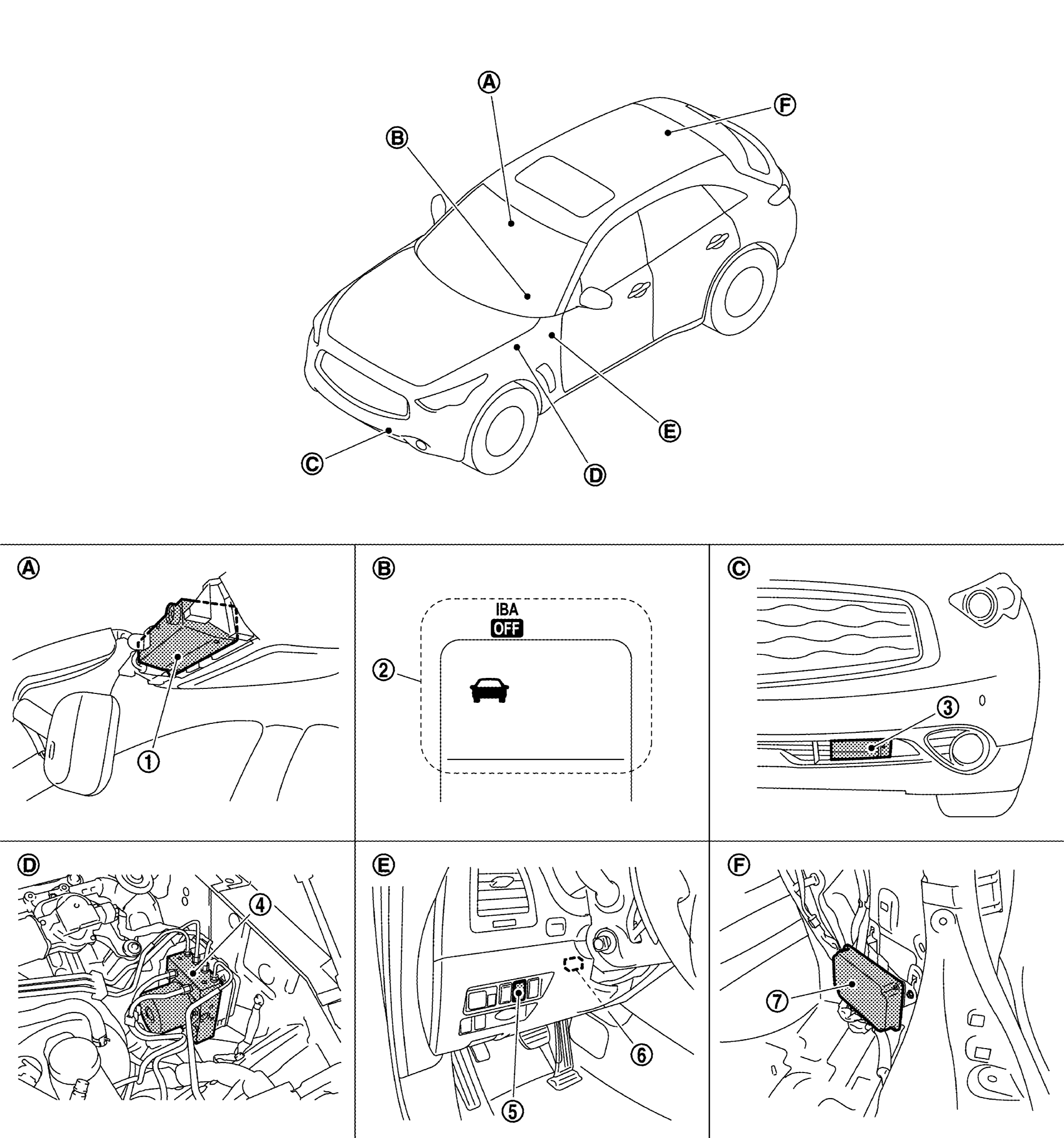

Component Location
| 1. | Lane camera unit | 2. | Information display, IBA OFF indicator lamp | 3. | ICC sensor integrated unit |
| 4. | ABS actuator and electric unit (control unit) | 5. | Warning systems switch | 6. | ICC warning chime |
| 7. | Brake booster control unit | ||||
| A. | Front of the map lamp | B. | On the combination meter | C. | Front bumper (LH) |
| D. | Inside the brake master cylinder cover | E. | Instrument driver lower panel (LH) | F. | Luggage room (RH) |
