Front Passenger Air Bag Module Connector End View (M103)

Connector Types:  RK04FY-BD

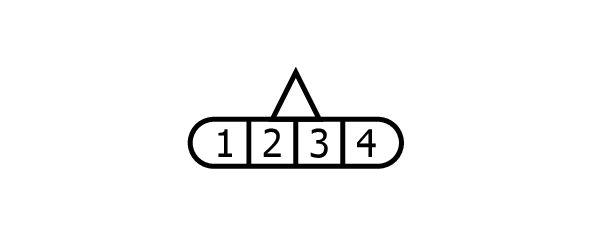

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

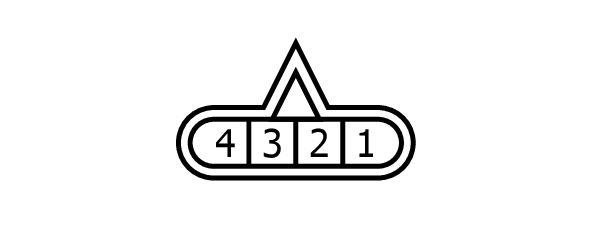

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y	-
2	Y	-
3	Y	-
4	Y	-
