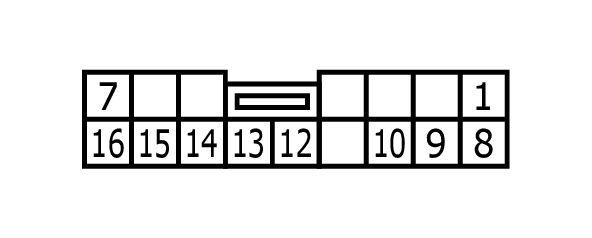

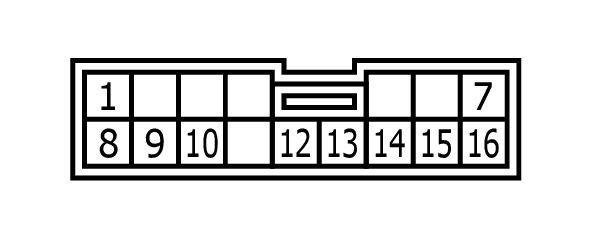

Door Mirror Remote Control Switch Connector End View (D7)
Connector Types:
TK16FW
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
- |
| 7 |
V |
- |
| 8 |
B |
- |
| 9 |
R |
- |
| 10 |
G |
- |
| 12 |
G |
- |
| 13 |
GR |
- |
| 14 |
P |
- |
| 15 |
O |
- |
| 16 |
O |
- |
