Alternator Connector End View (F36)

Connector Types:  HS03FB

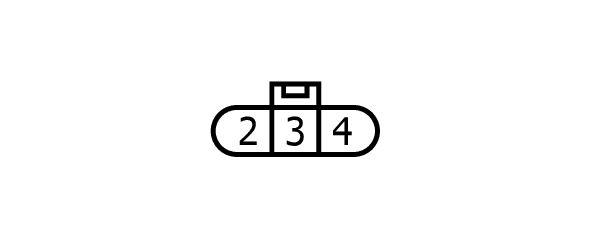

Fig 1: Terminal-side
GNSW27715Courtesy of NISSAN NORTH AMERICA

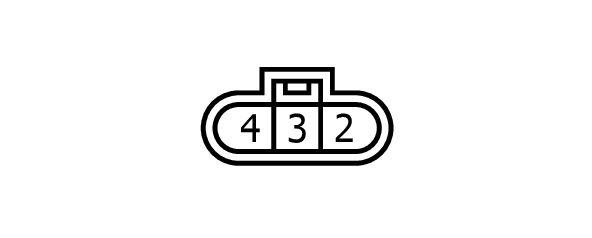

Fig 2: Harness-side
GNSW27624Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
2 G L
3 V S
4 P C
