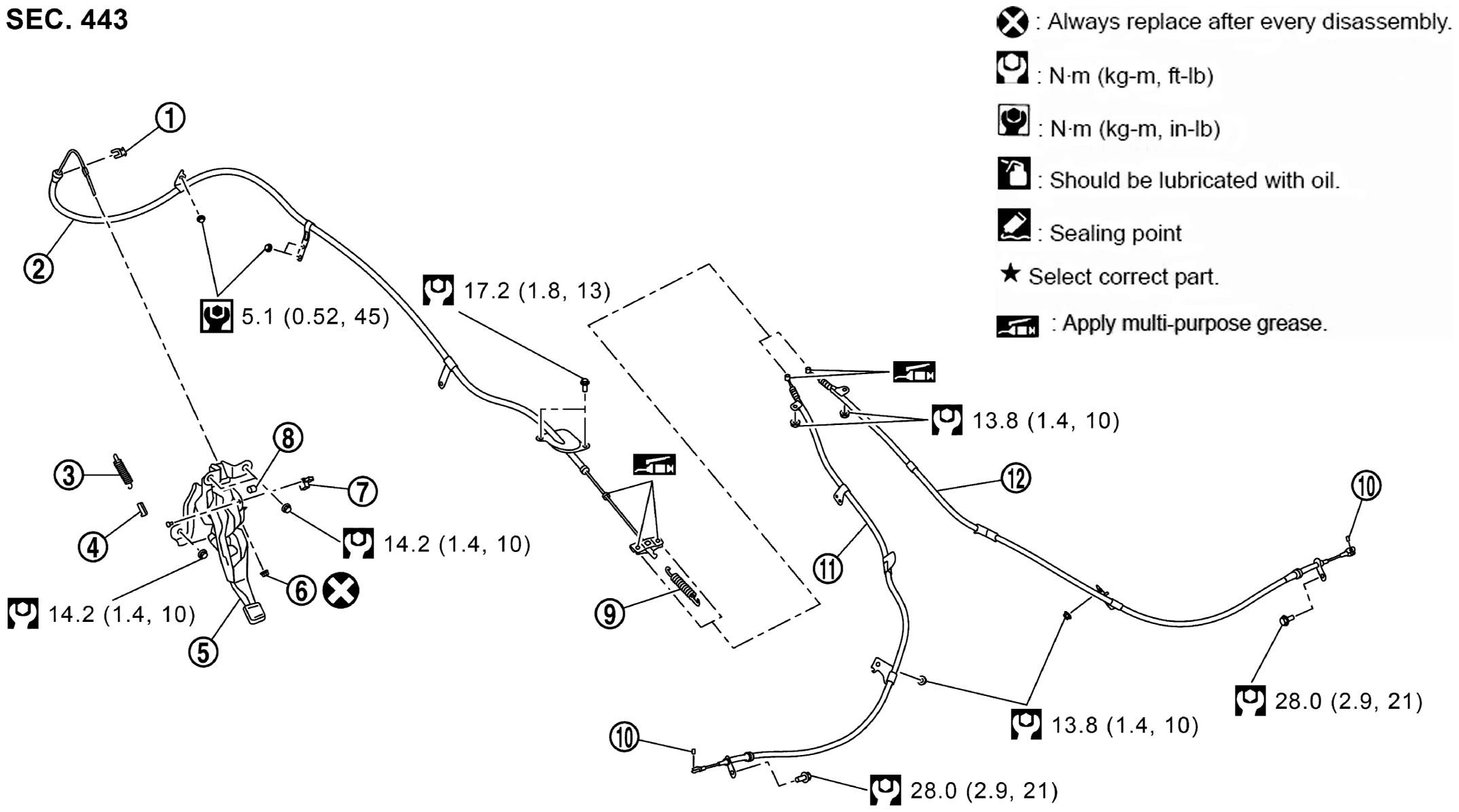

Exploded View With Torque Specifications
| 1. | Lock plate | 2. | Front cable | 3. | Return spring |
| 4. | Silencer | 5. | Parking brake pedal assembly | 6. | Adjusting nut |
| 7. | Parking brake switch | 8. | Stopper rubber | 9. | Spring |
| 10. | Pin | 11. | Rear cable (left side) | 12. | Rear cable (right side) |
| Refer to COMPONENTS for symbols not described on the above. | |||||
