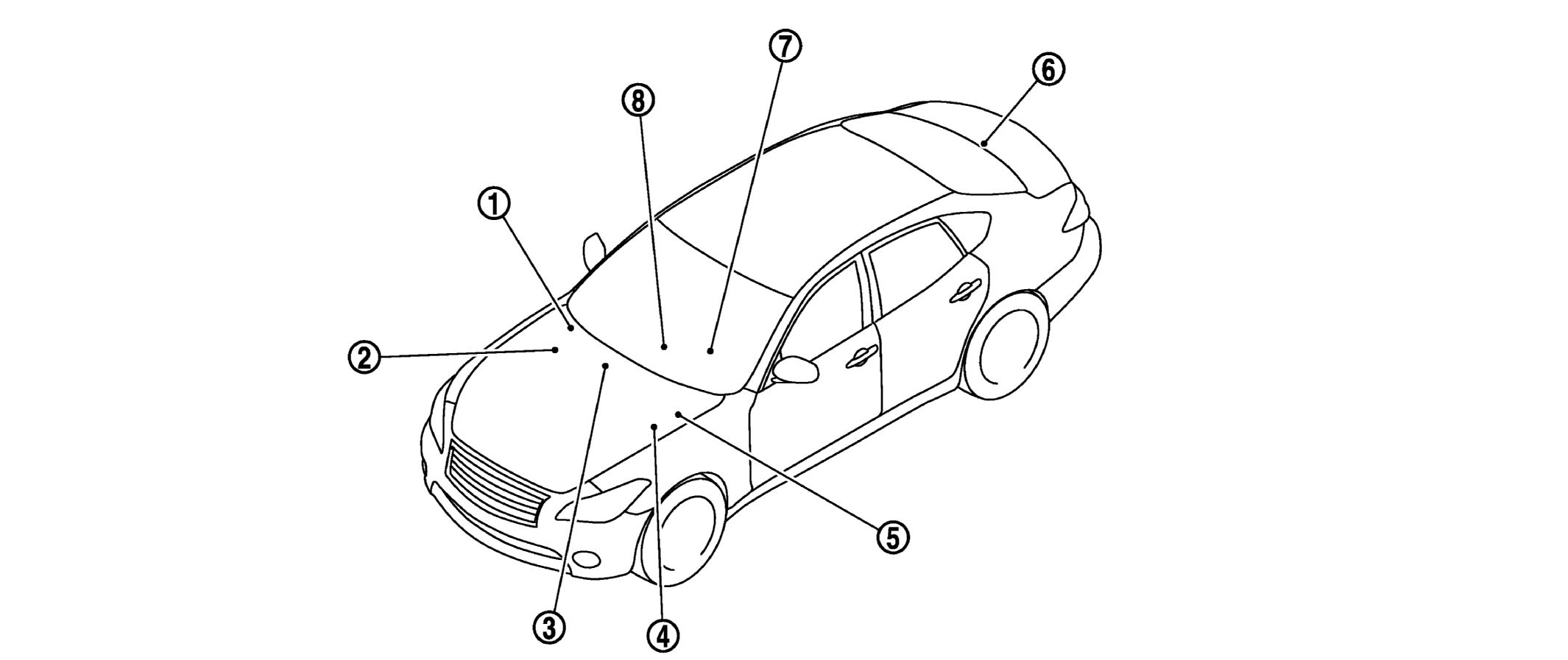

Component Location
| 1. | A/C auto amp. Refer to COMPONENT LOCATION . |
2. | ECM Refer to COMPONENT LOCATION . |
3. | AV control unit Refer to COMPONENT LOCATION (BASE AUDIO WITHOUT NAVIGATION). Refer to COMPONENT LOCATION (BOSE AUDIO WITH NAVIGATION). |
| 4. | Accelerator pedal actuator | 5. | Combination meter (Vehicle information display, and ECO drive indicator) |
6. | ADAS control unit COMPONENT LOCATION . |
| 7. | TCM COMPONENT LOCATION . |
8. | Drive mode select switch |
