Fuel Pump Control Module Connector End View (B221)

Connector Types:  TM10FB

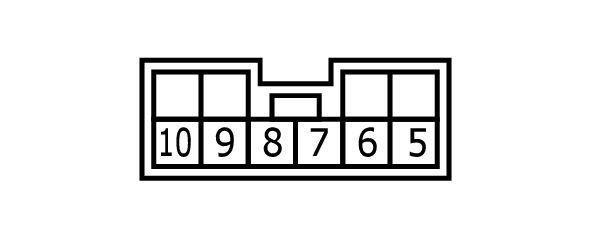

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

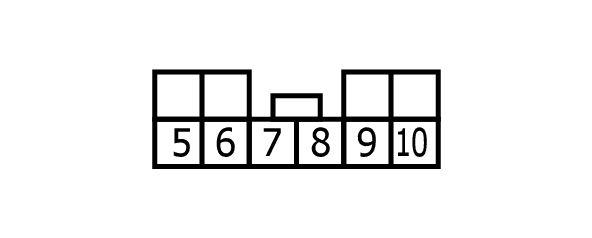

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
5	B/R	-
6	B	-
7	W	-
8	P	-
9	GR	-
10	BR	-
