Driver Assistance Buzzer Control Module Connector End View (B210)
Connector Types:
TH16FW-NH

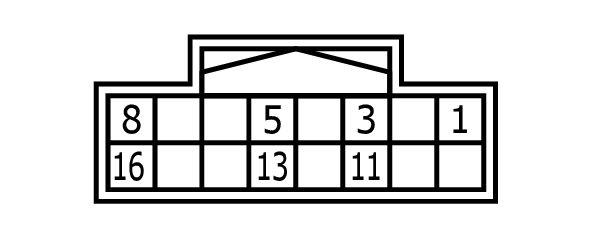

Courtesy of NISSAN NORTH AMERICA

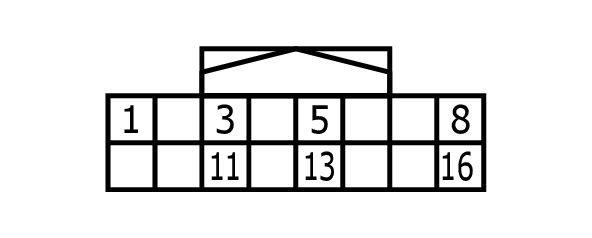

Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
IGNITION |
| 3 |
L |
ITS COMM-H |
| 5 |
B/R |
GROUND |
| 8 |
R |
WARNING BUZZER SIGNAL |
| 11 |
Y |
ITS COMM-L |
| 13 |
B/R |
GROUND |
| 16 |
G |
WARNING BUZZER SIGNAL GROUND |
