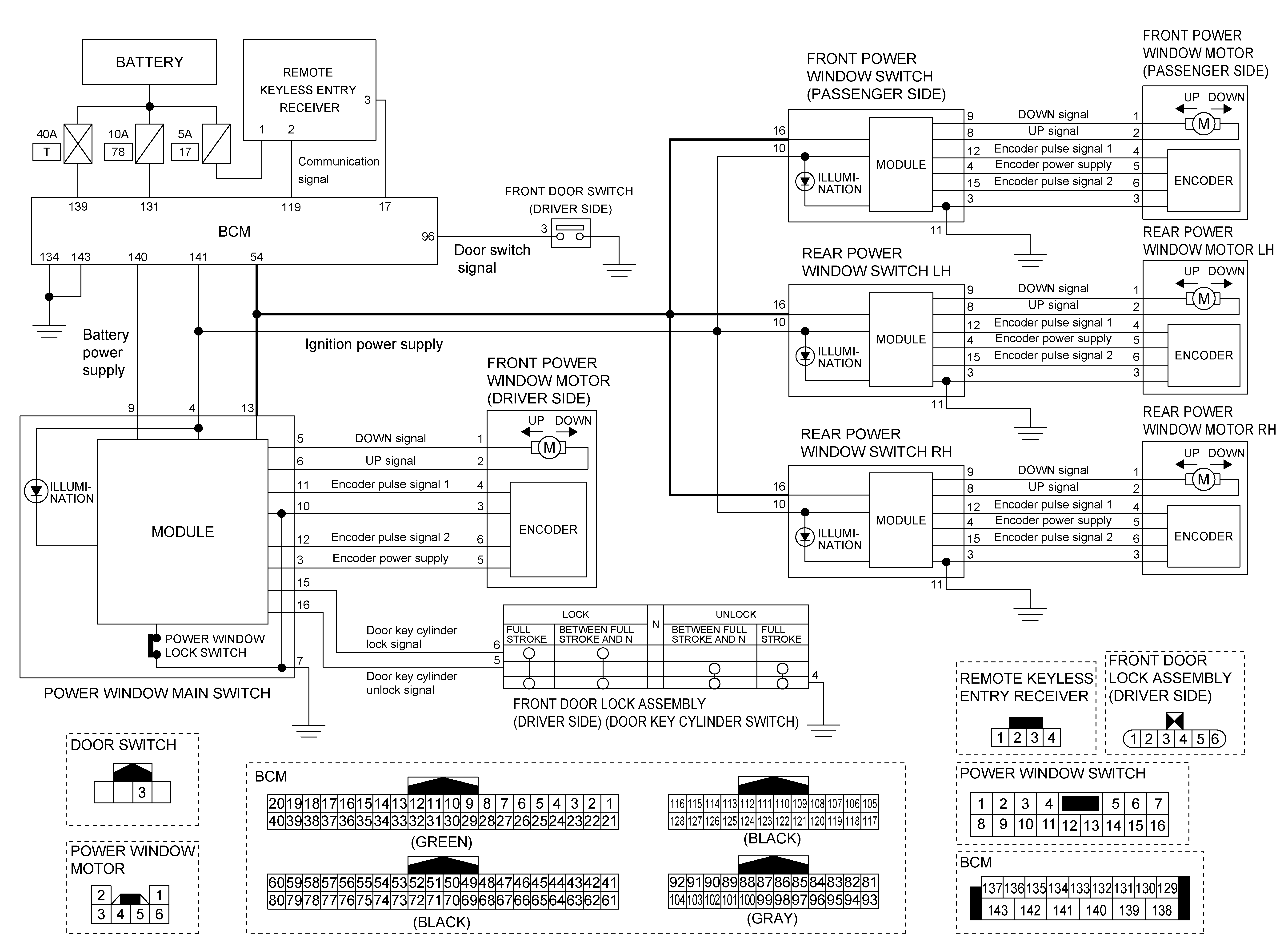

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

GNSJMKIB6294GB-294

Courtesy of NISSAN NORTH AMERICA, INC.
