Home >> Infiniti >> 2016 >> Q50 Base, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System (Except Hybrid) >> Removal And Installation >> Power Window Main Switch >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove front door finisher. Refer to REMOVAL AND INSTALLATION .

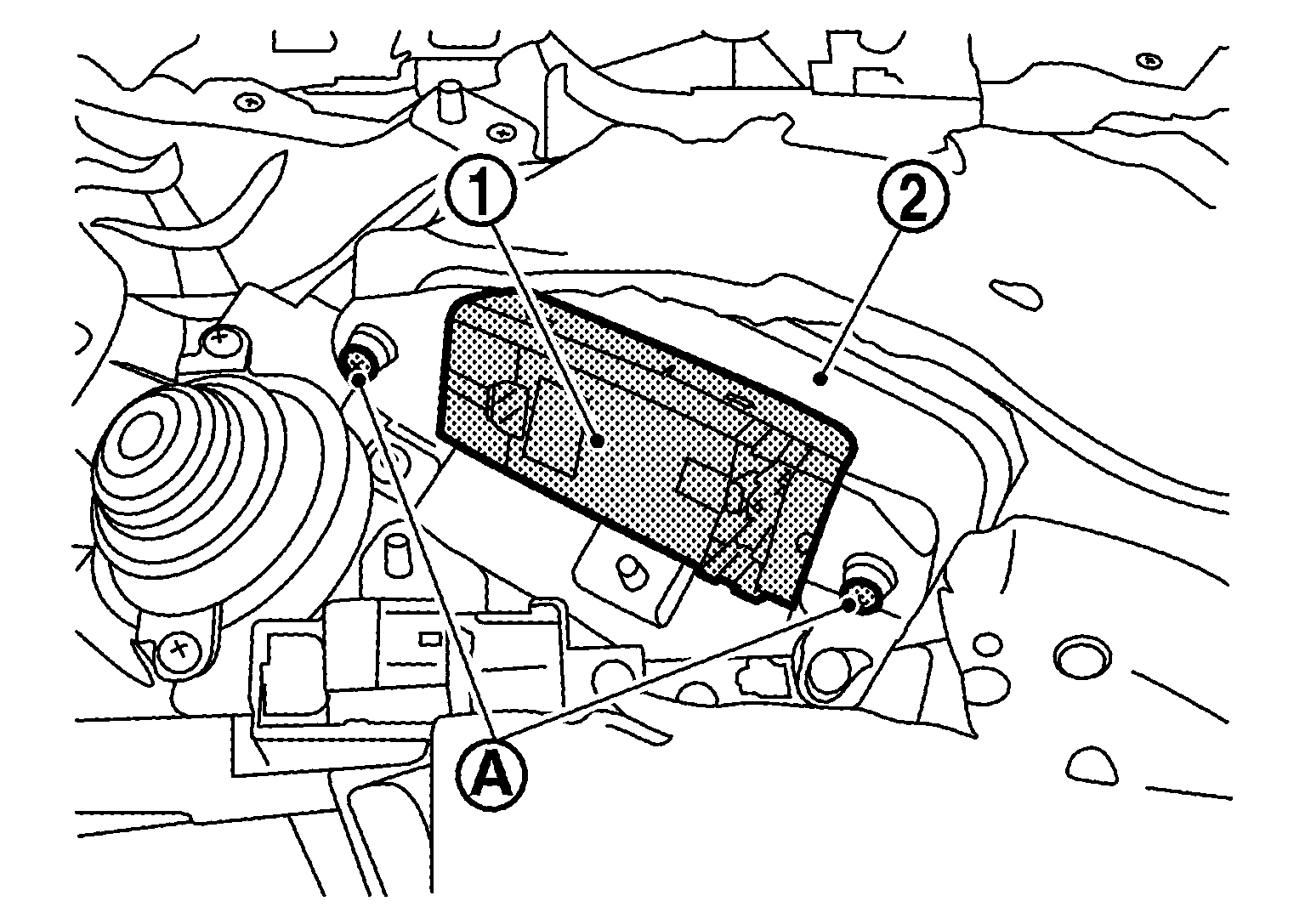

  2. Remove power window main switch mounting screws MARU-A-W , and then remove power window main switch WHITE-1 from front door finisher WHITE-2 .
    G09159604Courtesy of NISSAN NORTH AMERICA, INC.
