Exploded View With Torque Specifications

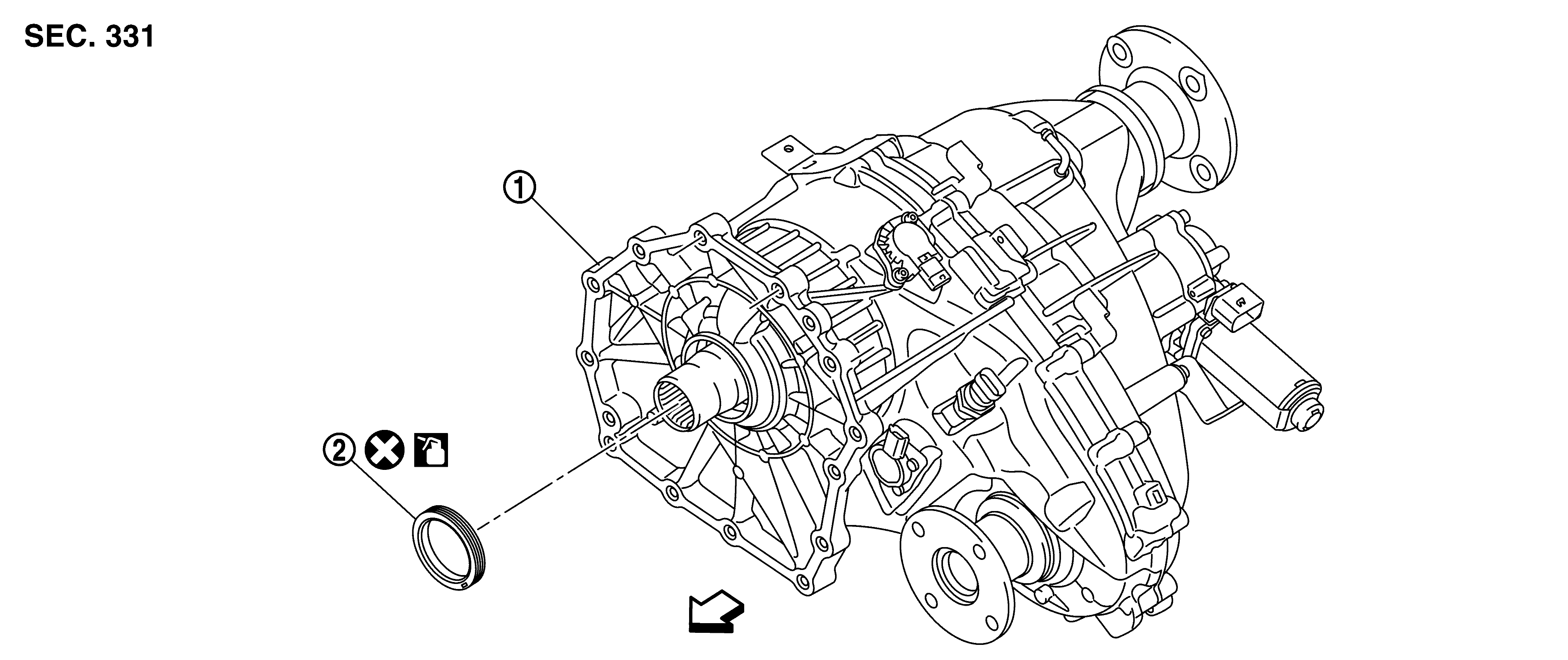

Fig 1: Exploded View Of Input Oil Seal

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transfer assembly	2.	Input oil seal
: Apply transfer fluid. Refer to FLUIDS AND LUBRICANTS
: Vehicle front
Refer to COMPONENTS for symbols not described above.
