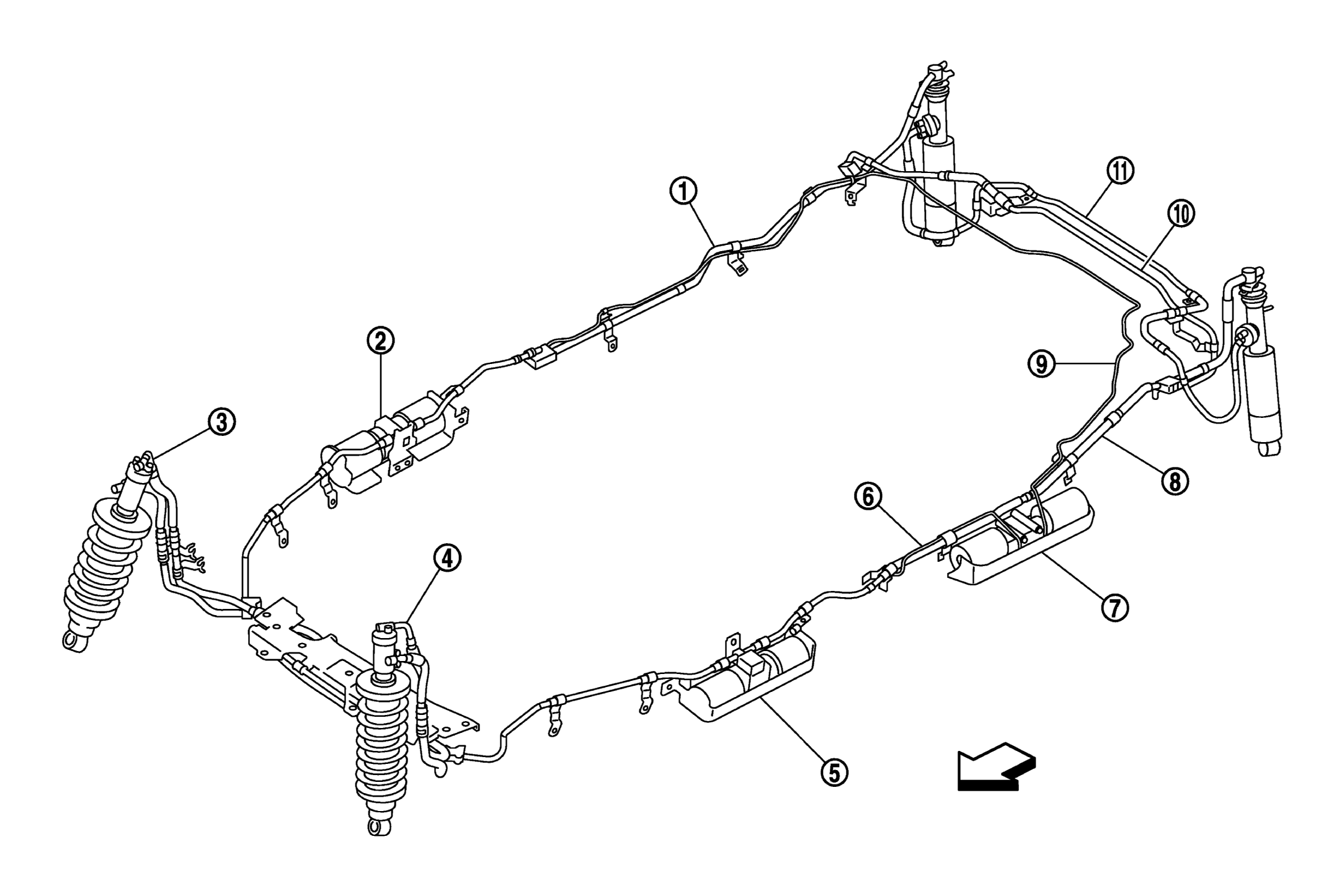

Hydraulic Body-Motion Control System
| 1. | Middle tube assembly RH | 2. | Accumulator assembly RH | 3. | Front tube assembly A |
| 4. | Front tube assembly B | 5. | Accumulator assembly LH | 6. | PPMU pipe A |
| 7. | PPMU assembly | 8. | Middle tube assembly LH | 9. | PPMU pipe B |
| 10. | Rear tube assembly A | 11. | Rear tube assembly B | ||
| Vehicle front |
