Exploded View With Torque Specifications

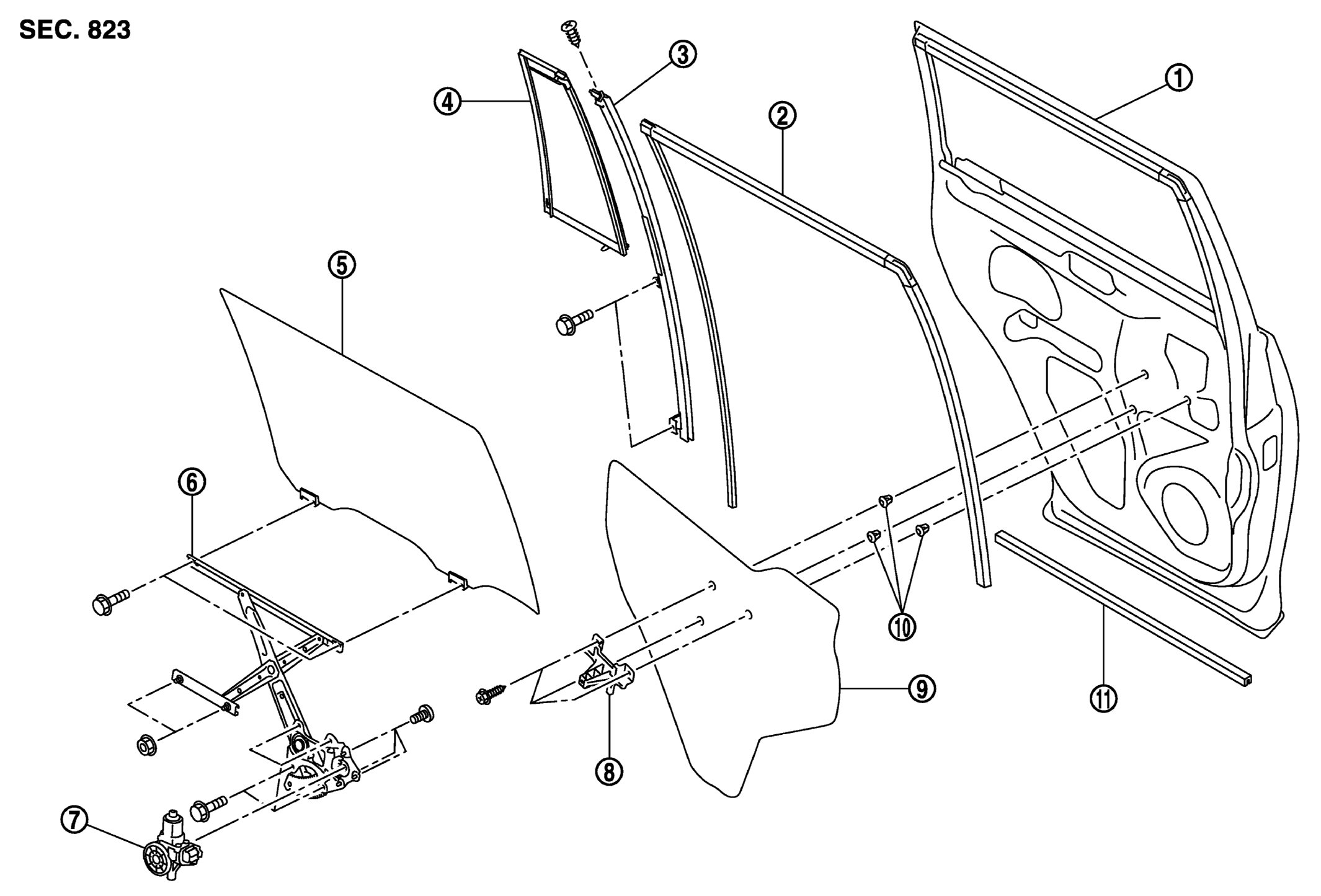

Fig 1: Exploded View Of Rear Door Glass & Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door glass run	3.	Partition sash
4.	Partition glass	5.	Rear door glass	6.	Rear door regulator
7.	Rear power window motor	8.	Rear door pull handle bracket	9.	Rear door sealing screen
10.	Grommet	11.	Rear door inside seal
