Exploded View With Torque Specifications

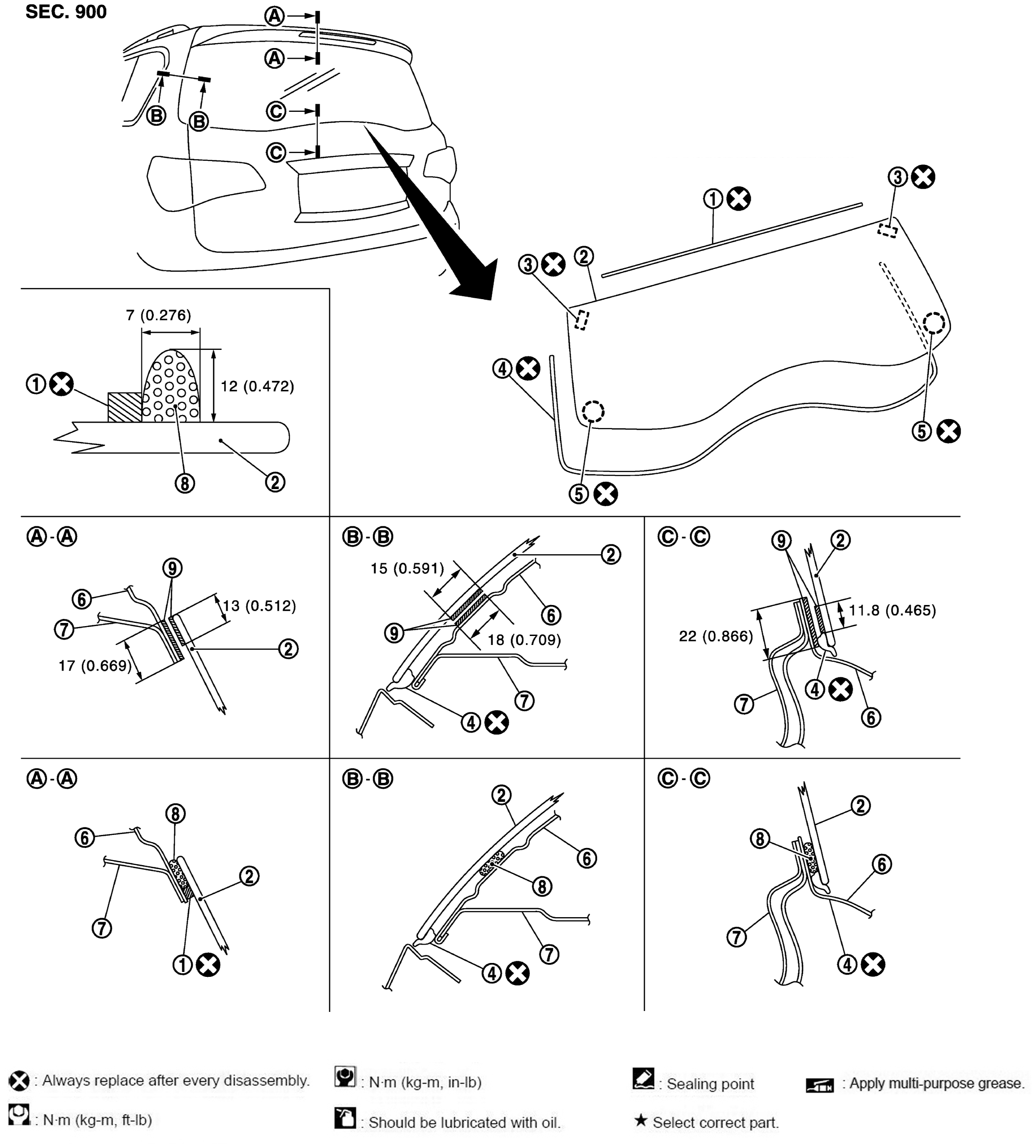

Fig 1: Exploded View Of Back Door Window Glass With Installation Dimensions

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Dam-sealant rubber upper	2.	Back door window glass	3.	Back door window glass holder (upper)
4.	Back door window glass molding	5.	Back door window glass holder (lower)	6.	Back door panel outer
7.	Back door panel inner	8.	Adhesive	9.	Primer
	: Always replace after every disassembly.
Unit	: mm (in)
