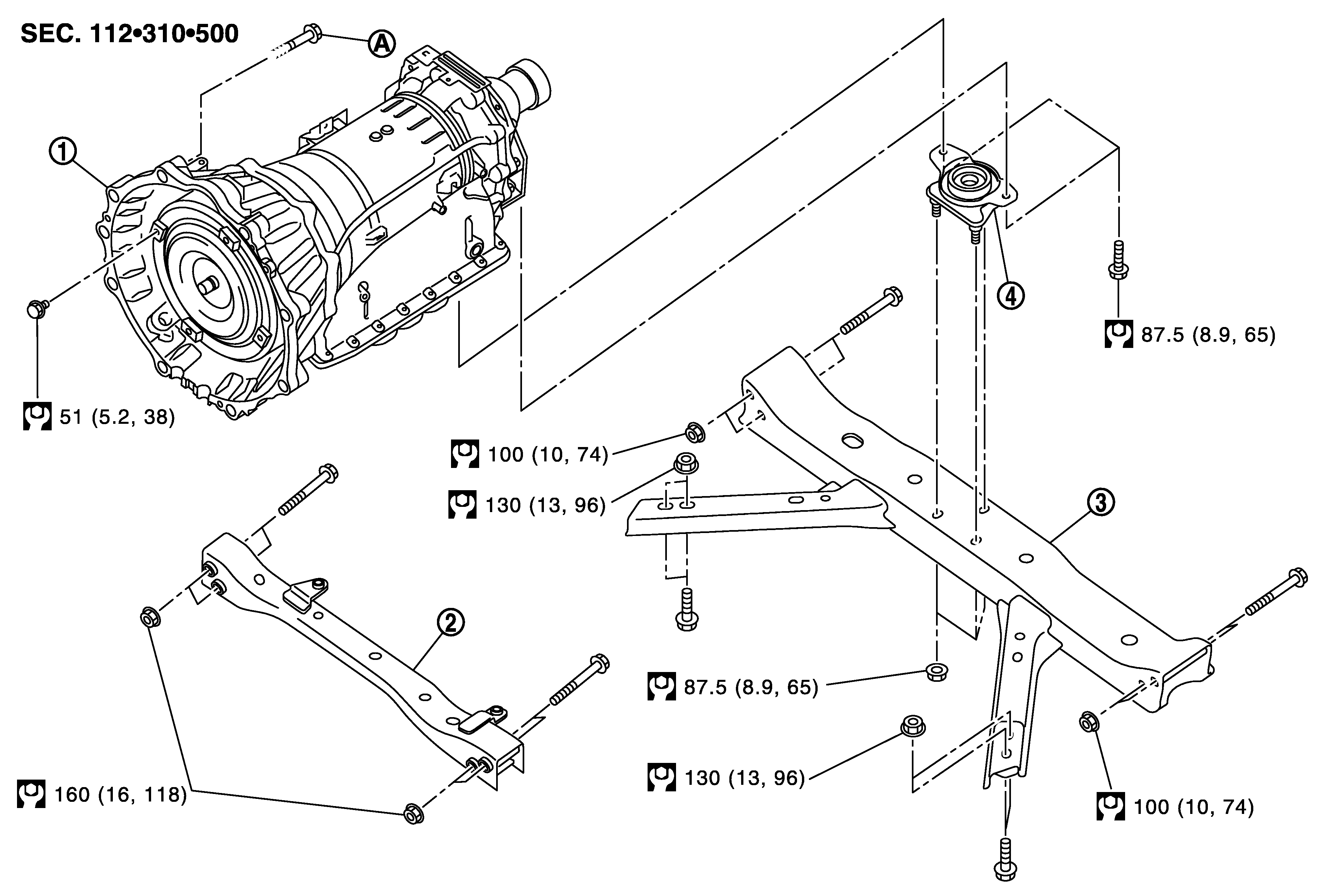

Exploded View With Torque Specifications
| 1. | A/T assembly | 2. | Front suspension rear cross member | 3. | Rear engine mounting cross member |
| 4. | Engine mounting insulator (rear) | ||||
| A. | Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION . | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
