Removal And Installation: Installation

  1. Install pilot converter to the crankshaft using suitable tool, if removed.

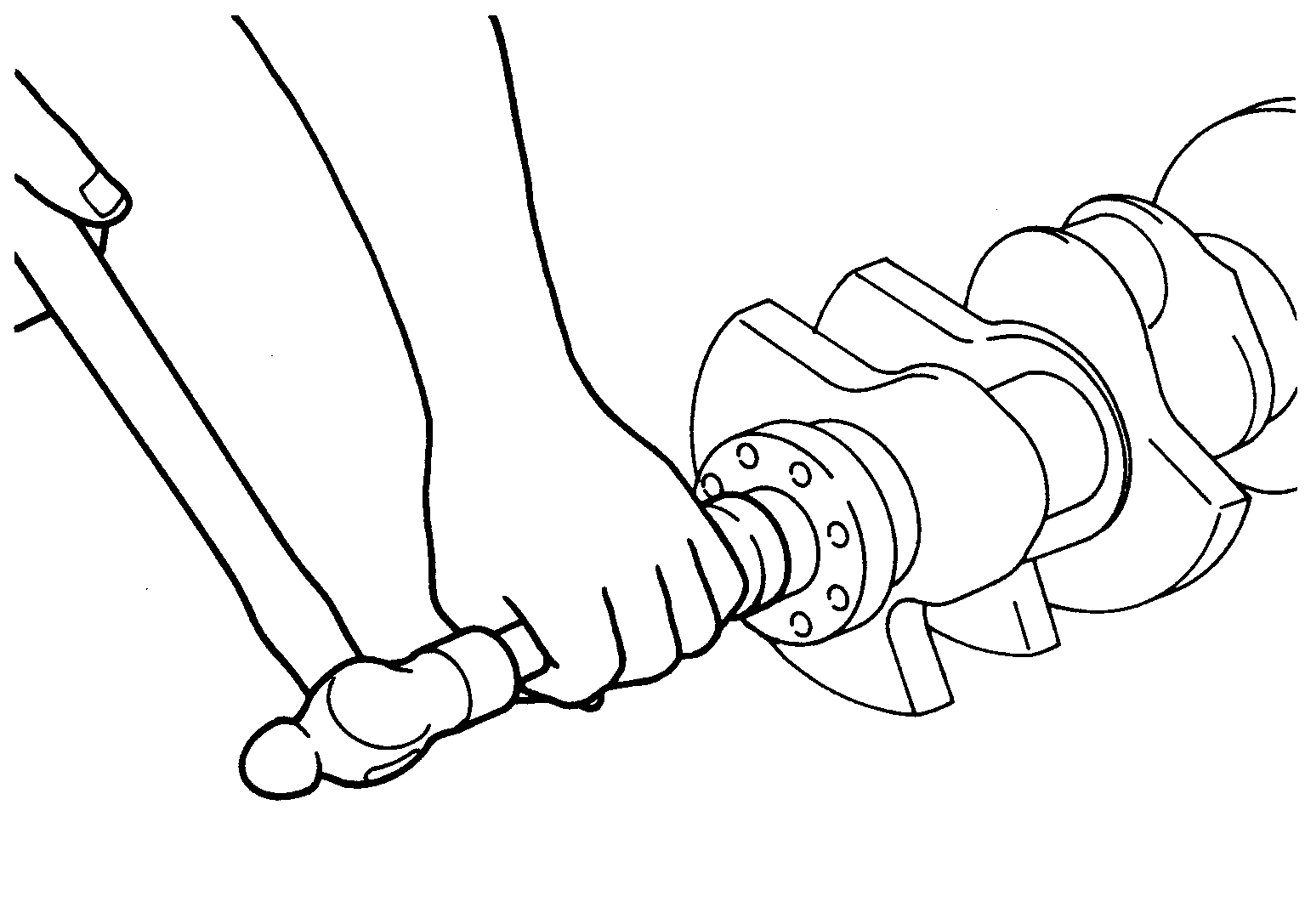

    Fig 1: Installing Pilot Converter
    G04073390Courtesy of NISSAN NORTH AMERICA, INC.
    • With a drift of the following outer diameter, press-fit as far as it will go.
      Pilot converter : Approx. 35 mm (1.38 in)
    • Press-fit pilot converter with its chamfering side facing crankshafts shown in the figure.
      Fig 2: Identifying Pilot Converter
      G05207409Courtesy of NISSAN NORTH AMERICA, INC.
      ARROW : Crankshaft side
  2. Install drive plate in the reverse order of removal.
    • Install drive plate (4) and reinforcement plate (3) as shown in the figure.
      Fig 3: Drive Plate Orientation
      GNSJPBIA2275ZZ-275Courtesy of NISSAN NORTH AMERICA, INC.
      2 : Pilot converter
      A : Rounded
      ARROW : Engine front
    • When installing drive plate to crankshaft (1), be sure to correctly align crankshaft side dowel pin and drive plate side dowel pin hole.
      CAUTION:

      If these are not aligned correctly, engine runs roughly and "MIL" illuminates.

    • Holding ring gear with the ring gear stopper [SST: KV10120100 (J-47245)].
    • Tighten the mounting bolts crosswise over several times.
