Exploded View With Torque Specifications

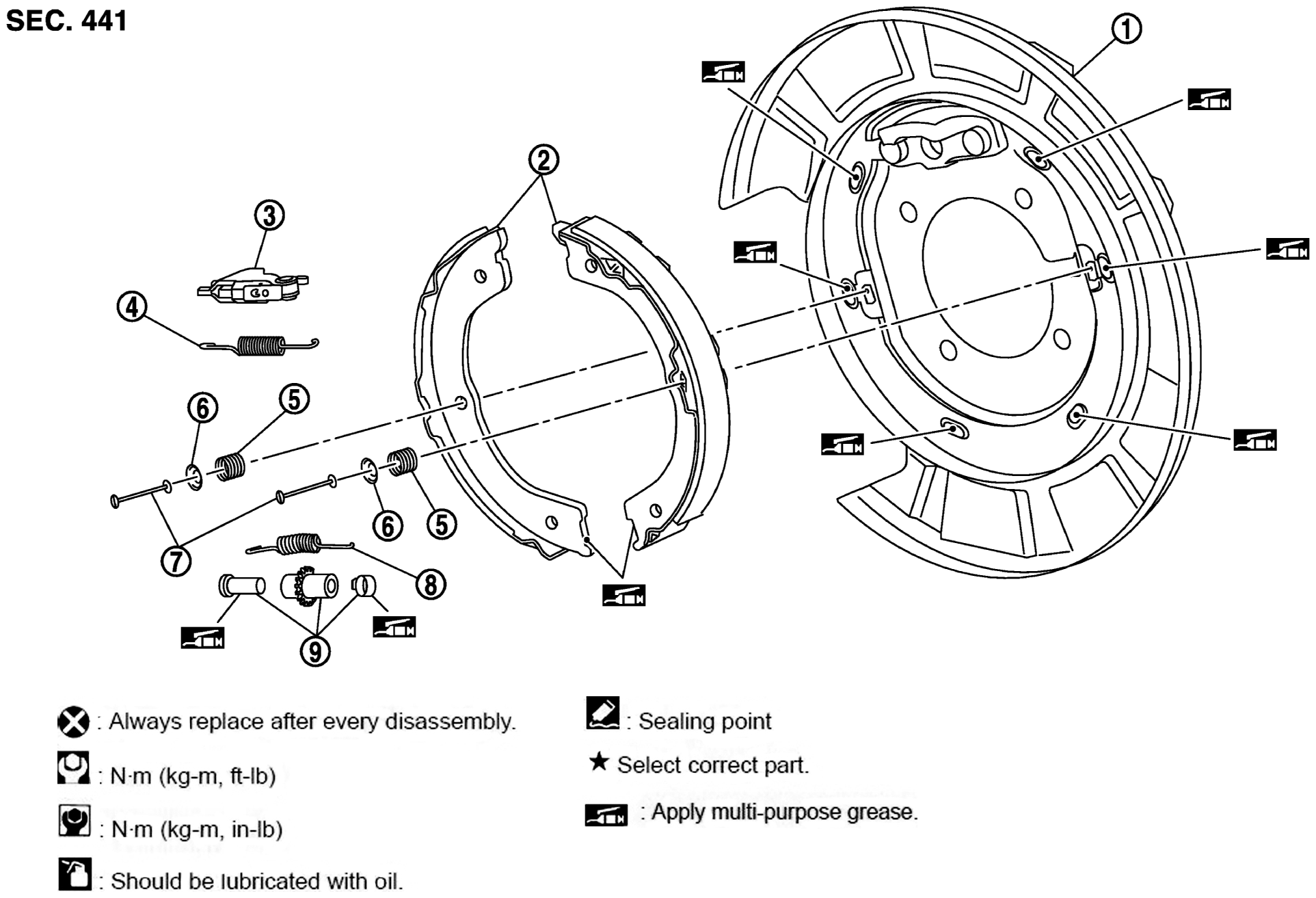

Fig 1: Exploded View Of Parking Brake Shoe

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back plate	2.	Parking brake shoe	3.	Toggle lever
4.	Return spring	5.	Anti-rattle spring	6.	Retainer
7.	Anti-rattle pin	8.	Adjuster spring	9.	Adjuster
: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
