Exploded View With Torque Specifications

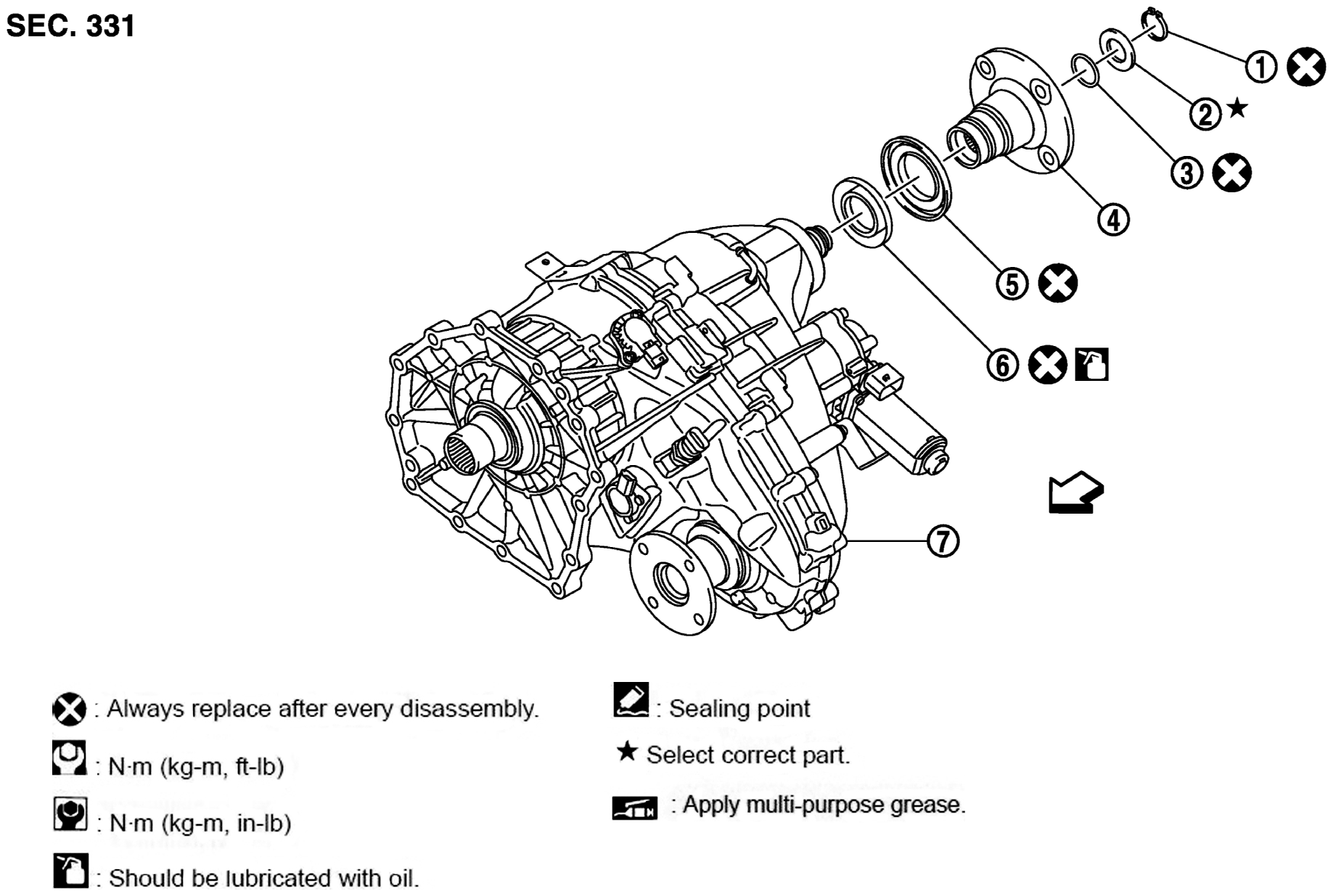

Fig 1: Exploded View Of Rear Oil Seal

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Snap ring	2.	Adjusting shim	3.	O-ring
4.	Rear companion flange	5.	Dust shield	6.	Rear oil seal
7.	Transfer assembly
: Vehicle front
: Apply transfer fluid. Refer to FLUIDS AND LUBRICANTS
Refer to COMPONENTS for symbols not described above.
