Exploded View With Torque Specifications

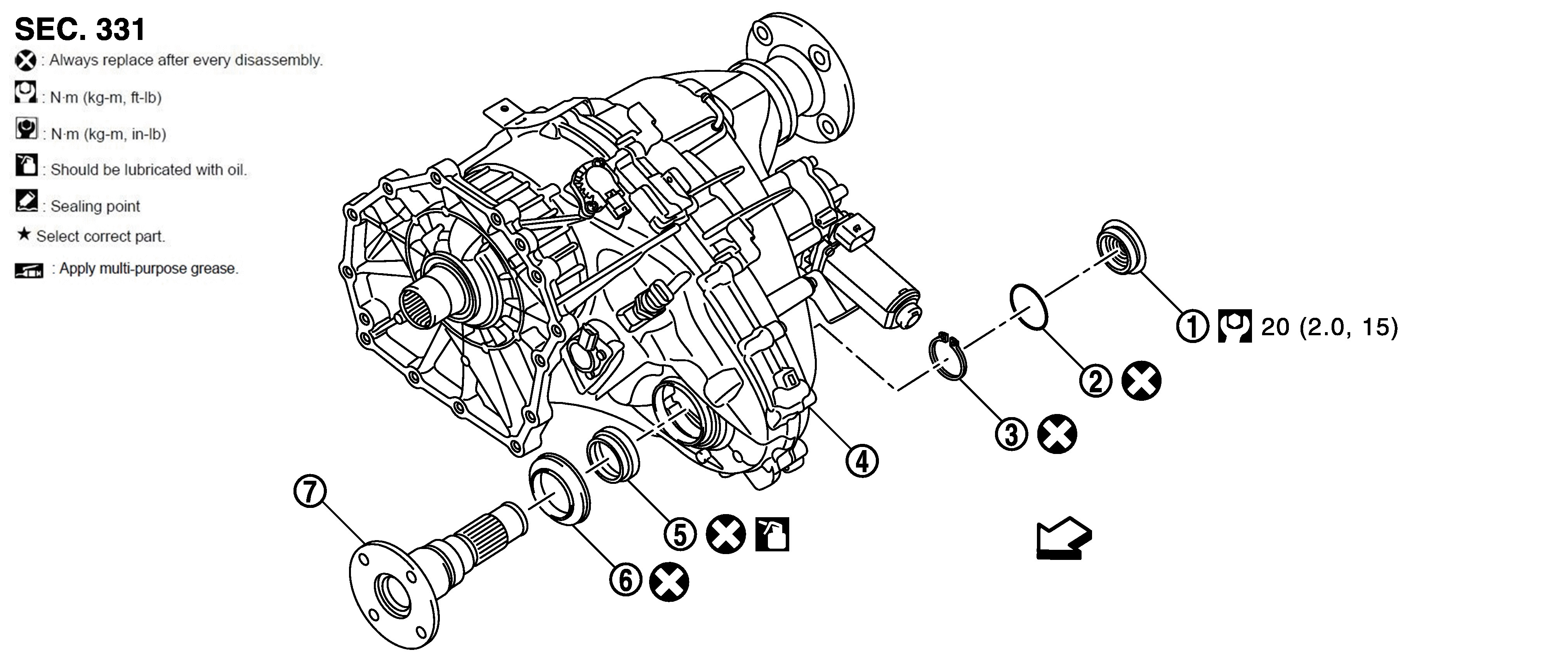

Fig 1: Exploded View Of Front Oil Seal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Plug	2.	O-ring	3.	Snap ring
4.	Transfer assembly	5.	Front oil seal	6.	Dust shield
7.	Front shaft flange
: Vehicle front
: Apply transfer fluid. Refer to FLUIDS AND LUBRICANTS
Refer to COMPONENTS for symbols not described above.
