Cooling Fan Control Module 2 Connector End View (E38)

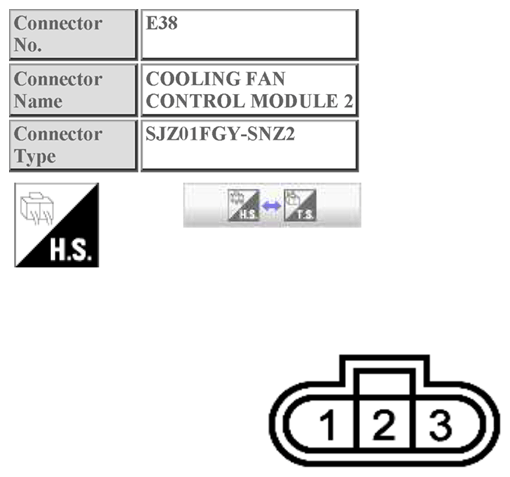

Fig 1: Cooling Fan Control Module 2 Connector End View (E38)

G10437925

Courtesy of NISSAN NORTH AMERICA, INC.
