Cooling Fan Control Module 1 Connector End View (E37)

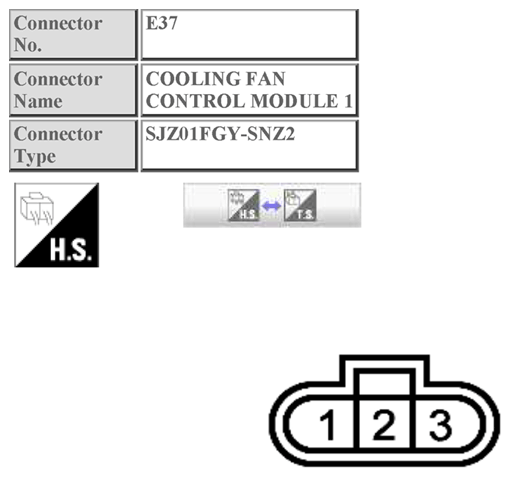

Fig 1: Cooling Fan Control Module 1 Connector End View (E37)

G10437922

Courtesy of NISSAN NORTH AMERICA, INC.
