Cooling Fan Control Module 1 Connector End View (E302)

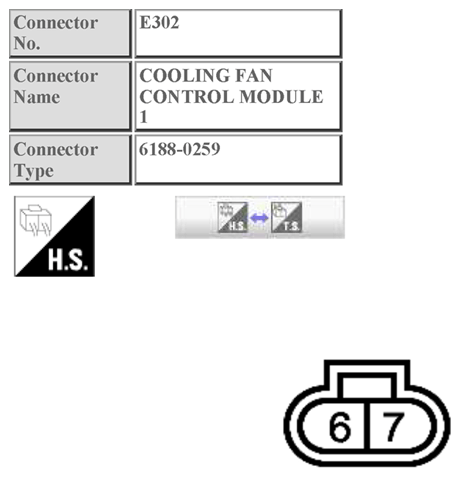

Fig 1: Cooling Fan Control Module 1 Connector End View (E302)

G10437924

Courtesy of NISSAN NORTH AMERICA, INC.
