AFS Control Unit Connector End View (M16)

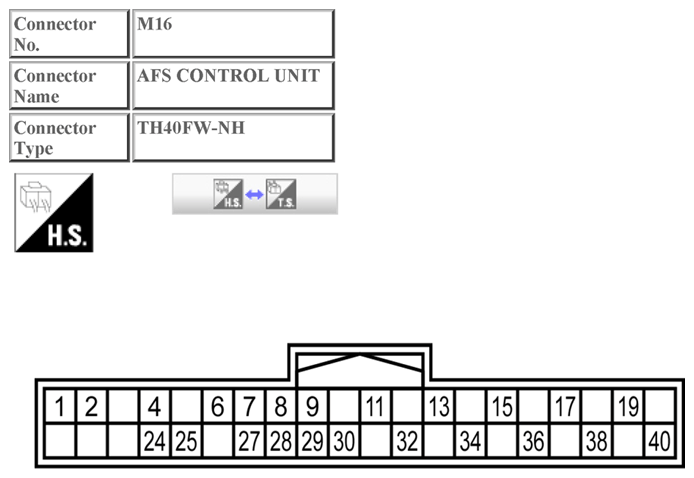

Fig 1: AFS Control Unit Connector End View (M16)

G10437795

Courtesy of NISSAN NORTH AMERICA, INC.
