Exploded View With Torque Specifications

VQ37VHR

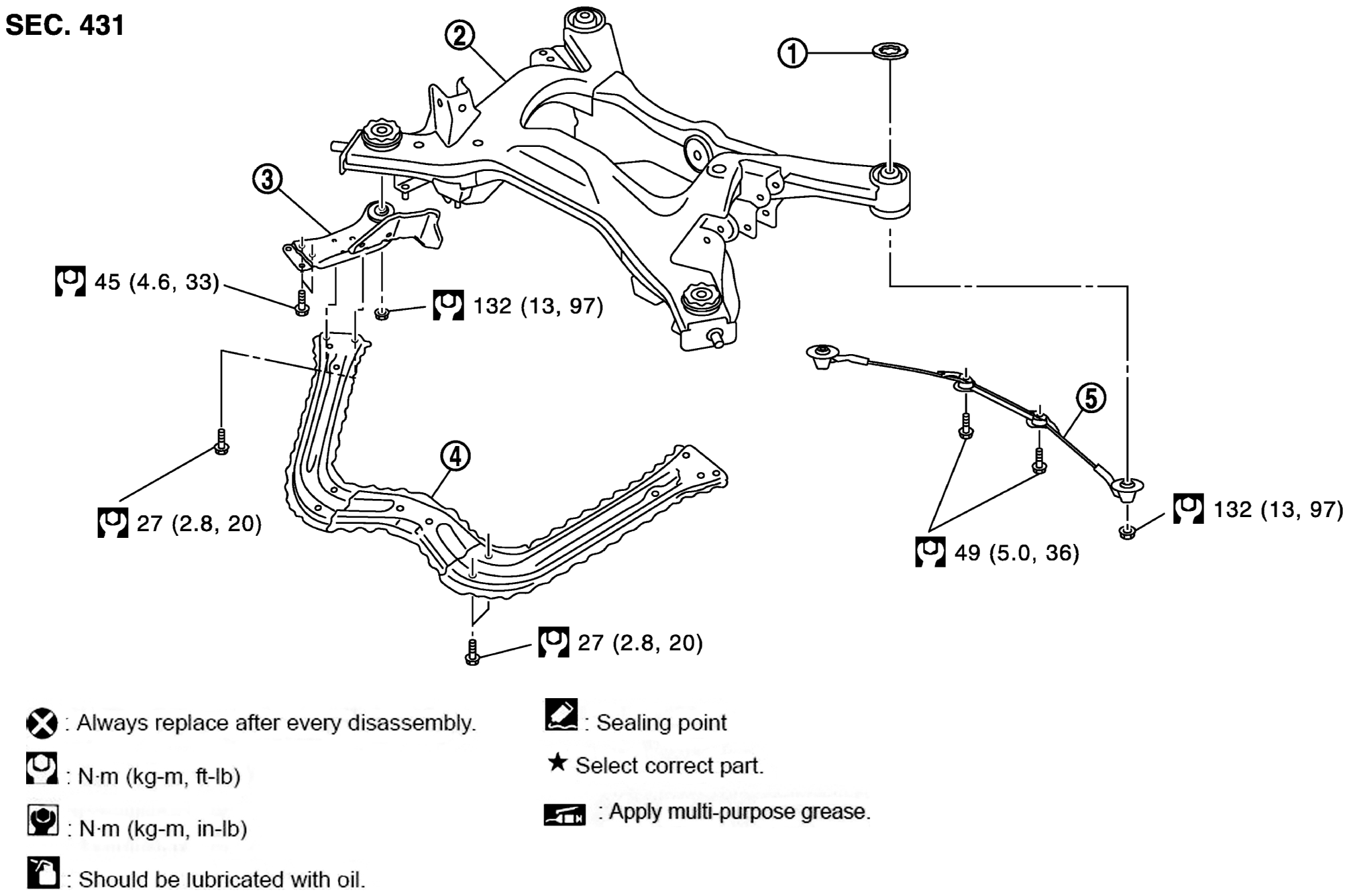

Fig 1: Exploded View Of Rear Suspension Member (VQ37VHR) With Torque Specifications
GNSJPEIB0118GB-118Courtesy of NISSAN NORTH AMERICA, INC.
1. Mount Stopper 2. Rear Suspension Member 3. Rear Suspension Member Stay
4. Tunnel Stay 5. Pin Stay
Refer to COMPONENTS for symbols in the figure.
