Exploded View With Torque Specifications

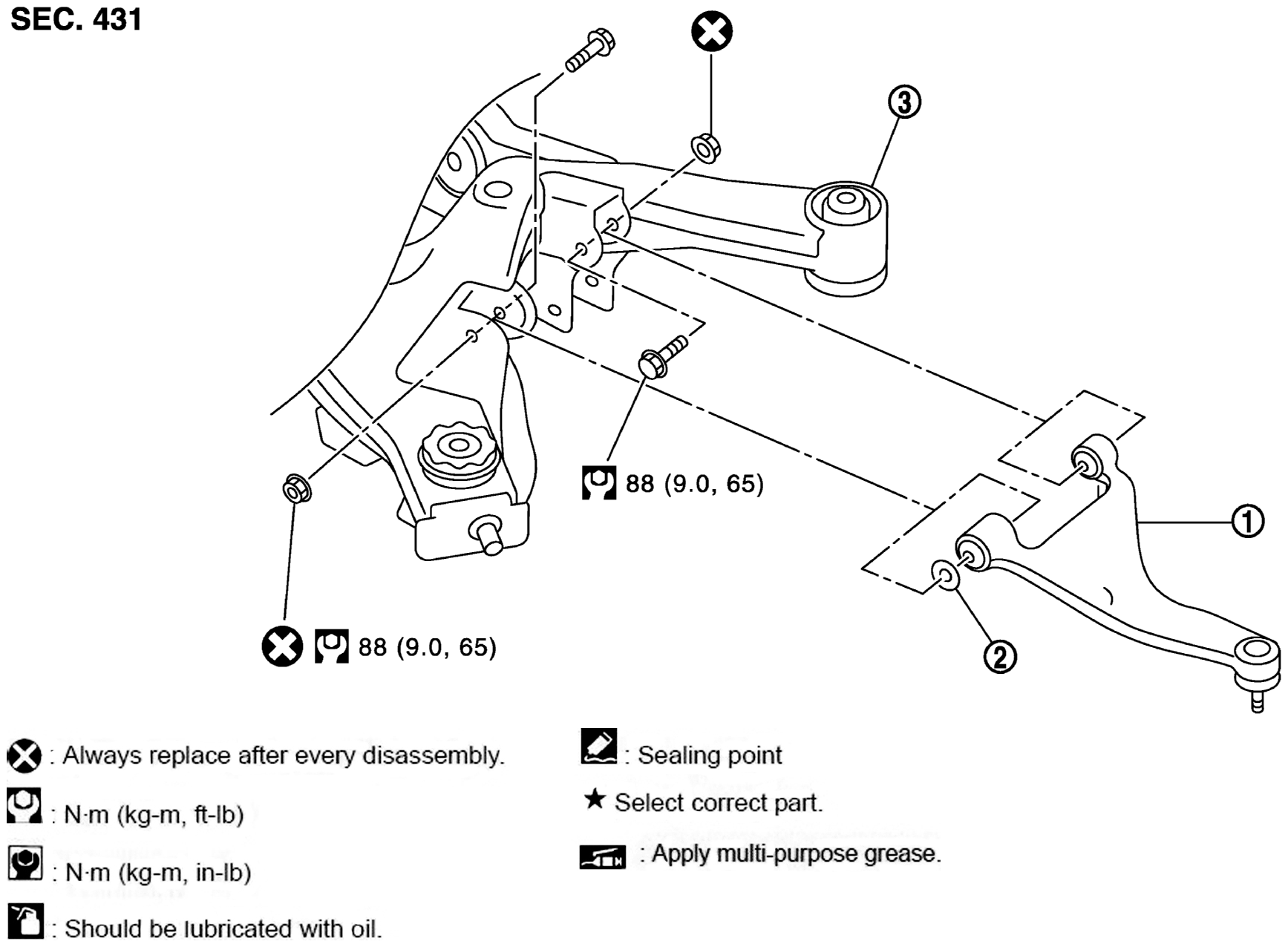

Fig 1: Exploded View Of Suspension Arm With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Suspension Arm	2.	Stopper Rubber	3.	Rear Suspension Member
Refer to COMPONENTS for symbols in the figure.
