Exploded View With Torque Specifications

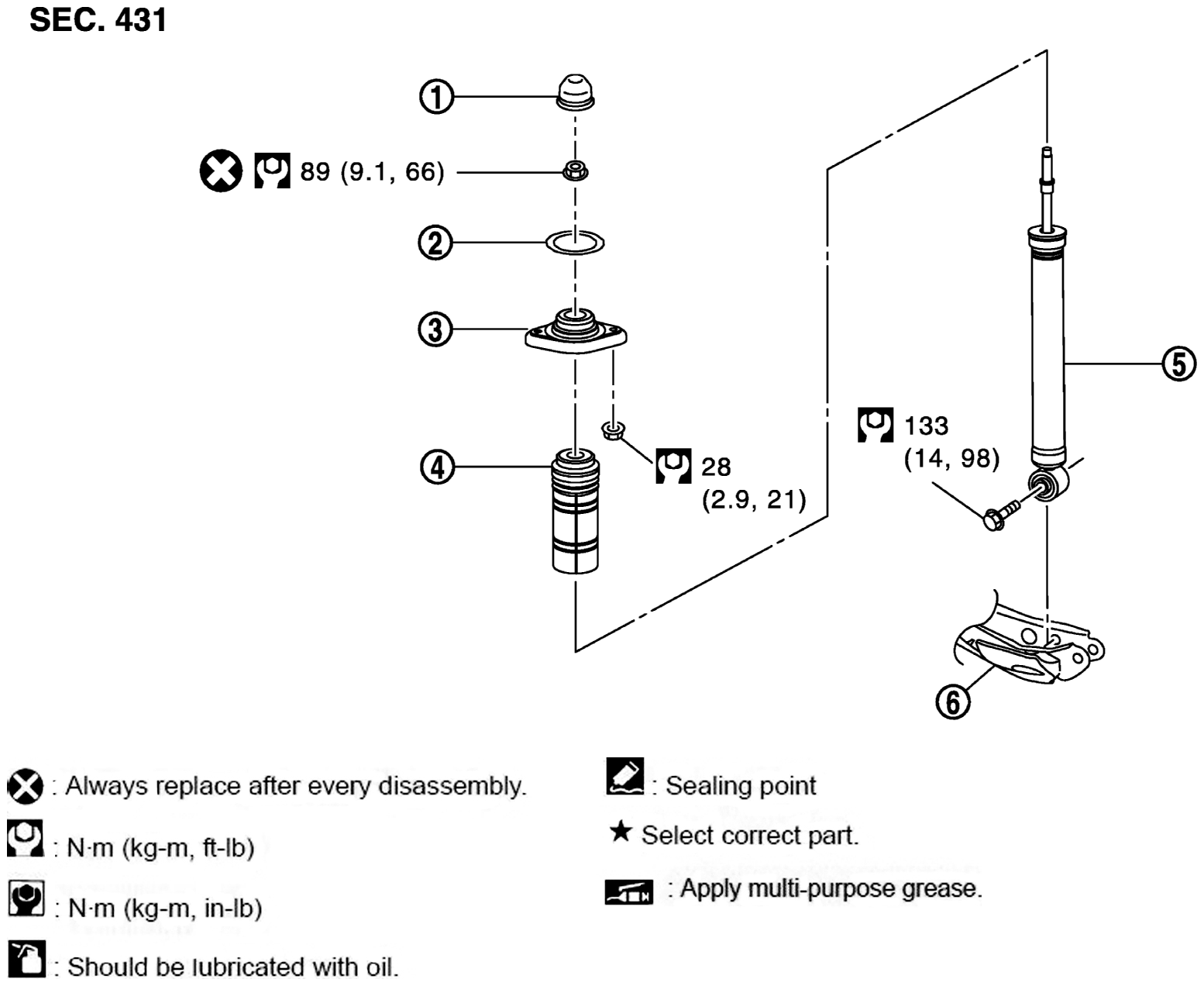

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cap	2.	Mounting Seal	3.	Shock Absorber Mounting Bracket
4.	Bound Bumper Cover	5.	Shock Absorber	6.	Front Lower Link
Refer to COMPONENTS for symbols in the figure.
