Exploded View With Torque Specifications

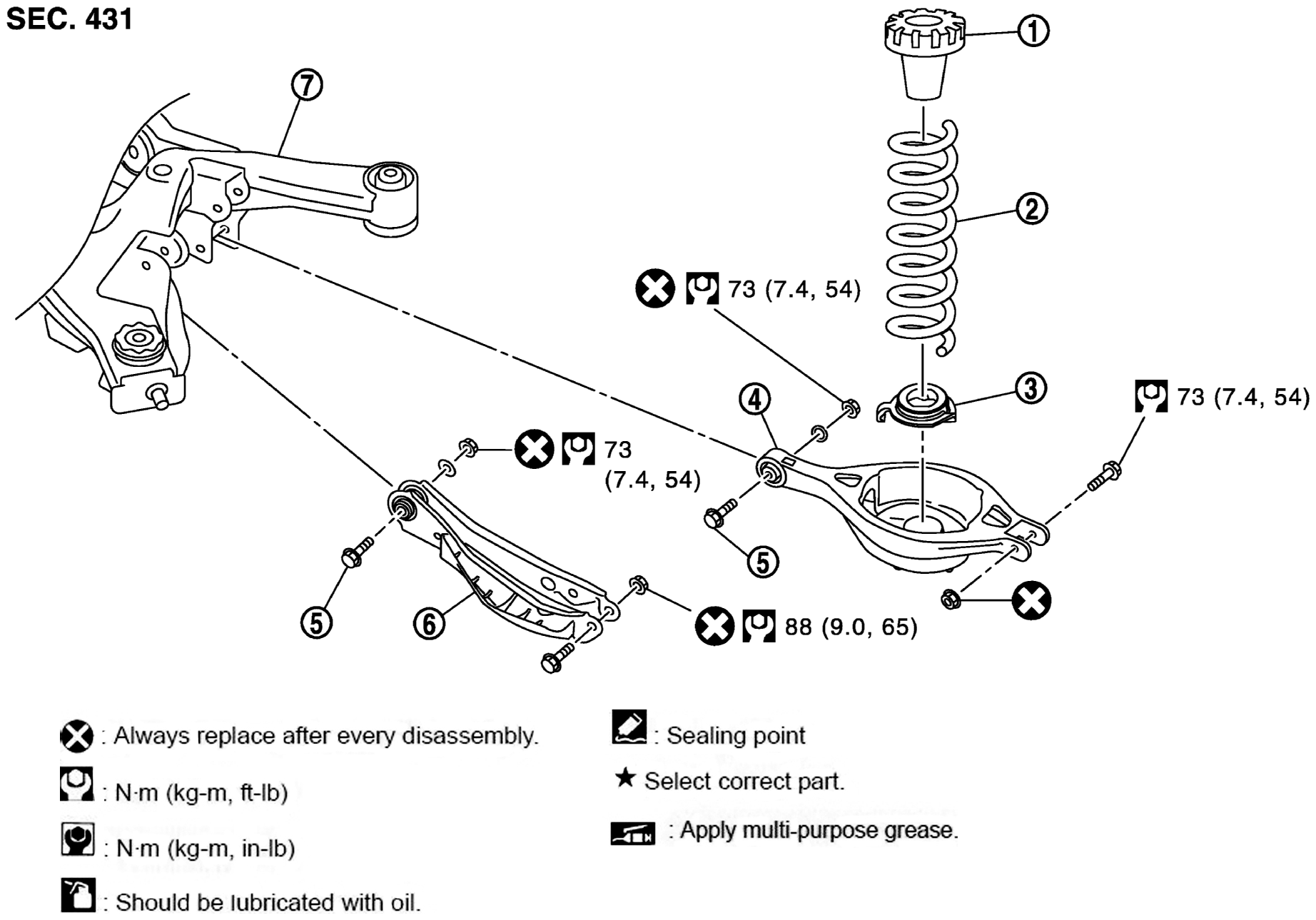

Fig 1: Exploded View Of Front And Rear Lower Link And Coil Spring With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper Seat	2.	Coil Spring	3.	Rubber Seat
4.	Rear Lower Link	5.	Adjusting Bolt	6.	Front Lower Link
7.	Rear Suspension Member
Refer to COMPONENTS for symbols in the figure.
