Exploded View With Torque Specifications

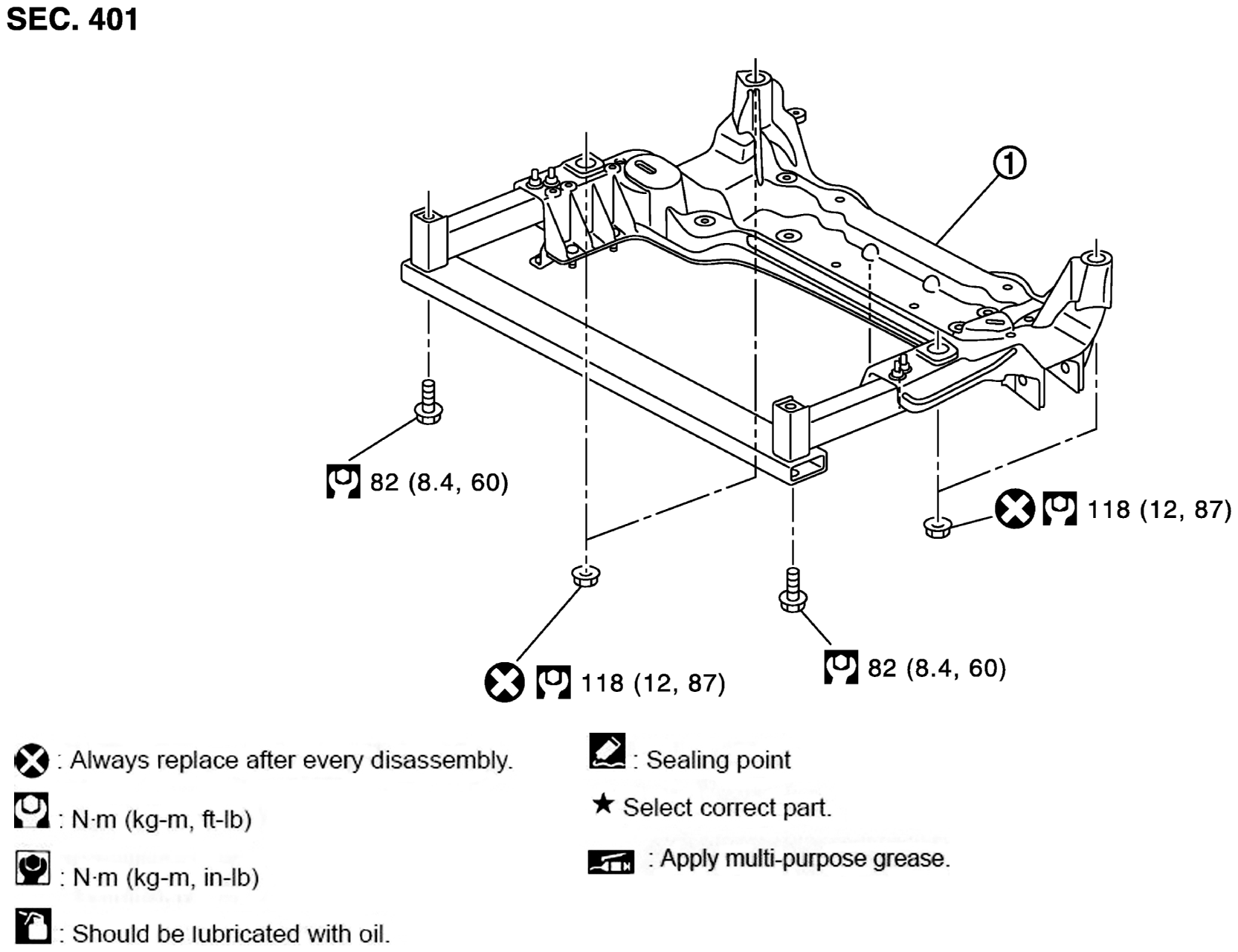

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications
GNSJPEIA0111GB-111Courtesy of NISSAN NORTH AMERICA, INC.
1. Front Suspension Member
Refer to COMPONENTS for symbols in the figure.
