Exploded View With Torque Specifications

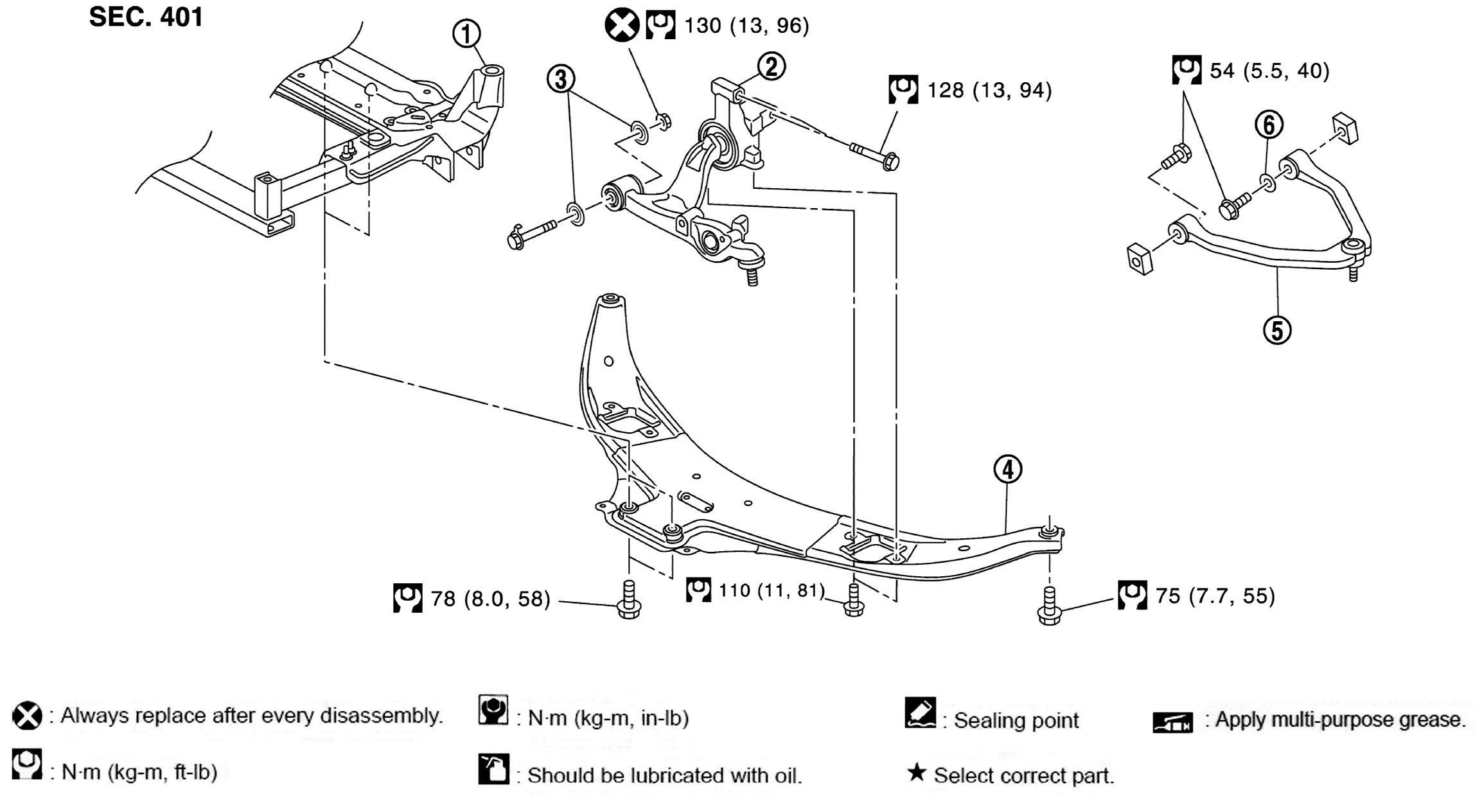

Fig 1: Exploded View Of Transverse Link And Upper Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front Suspension Member	2.	Transverse Link	3.	Stopper Bushing
4.	Front Cross Bar	5.	Upper Link	6.	Stopper Arm Bushing
Refer to COMPONENTS for symbols in the figure.
