Exploded View With Torque Specifications

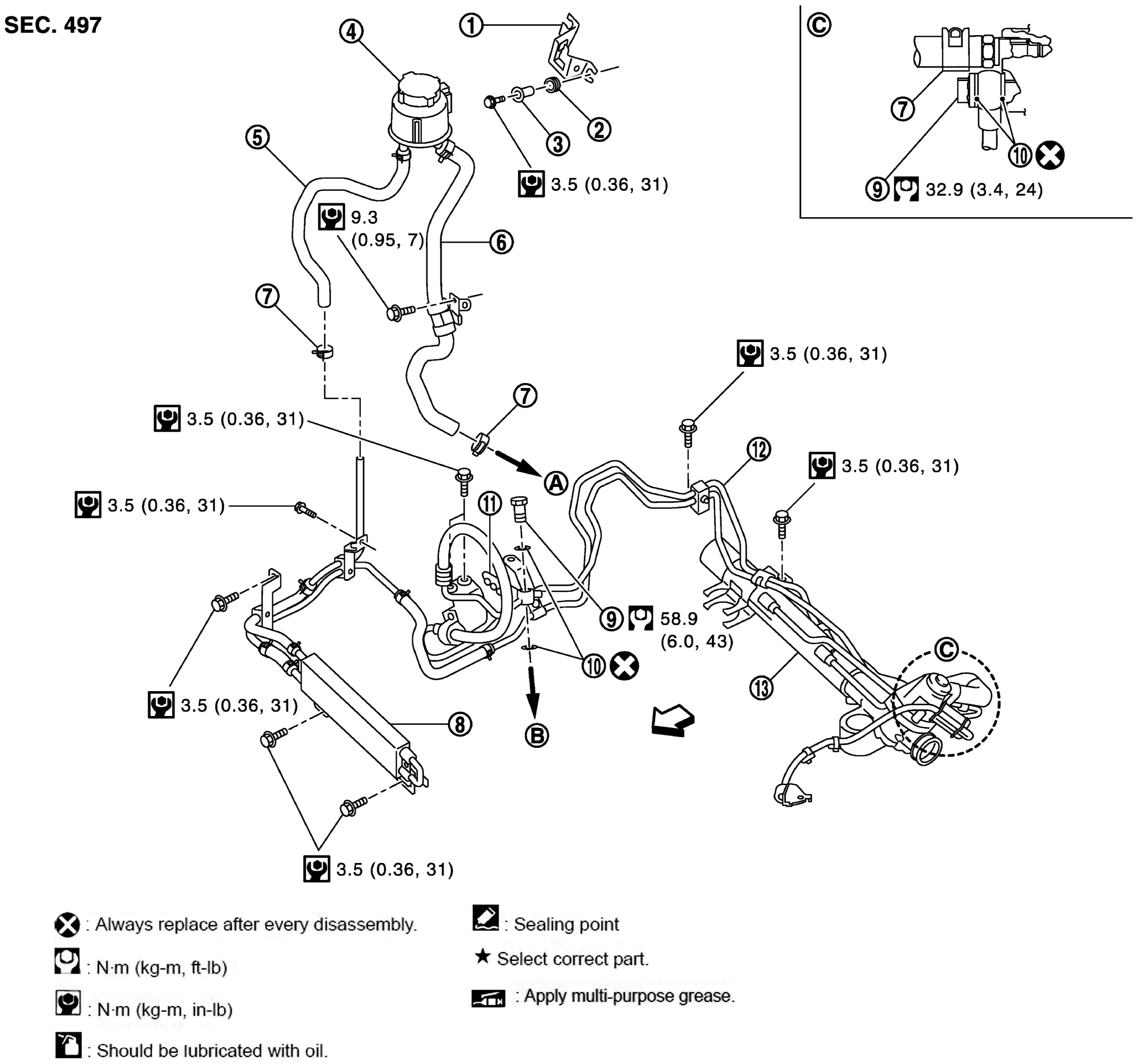

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (VK50VE)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir Tank Bracket	2.	Bushing	3.	Collar
4.	Reservoir Tank	5.	Return Hose	6.	Suction Hose
7.	Clamp	8.	Oil Cooler	9.	Eye Bolt
10.	Copper Washer	11.	Pressure Sensor	12.	High Pressure Piping And Low Pressure Piping
13.	Steering Gear Assembly
A.	To power steering oil pump suction hose.	B.	To power steering oil pump.
: Vehicle front
	Always replace after every disassembly.
	N.m (kg-m, ft-lb)
	N.m (kg-m, in-lb)
