Exploded View With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

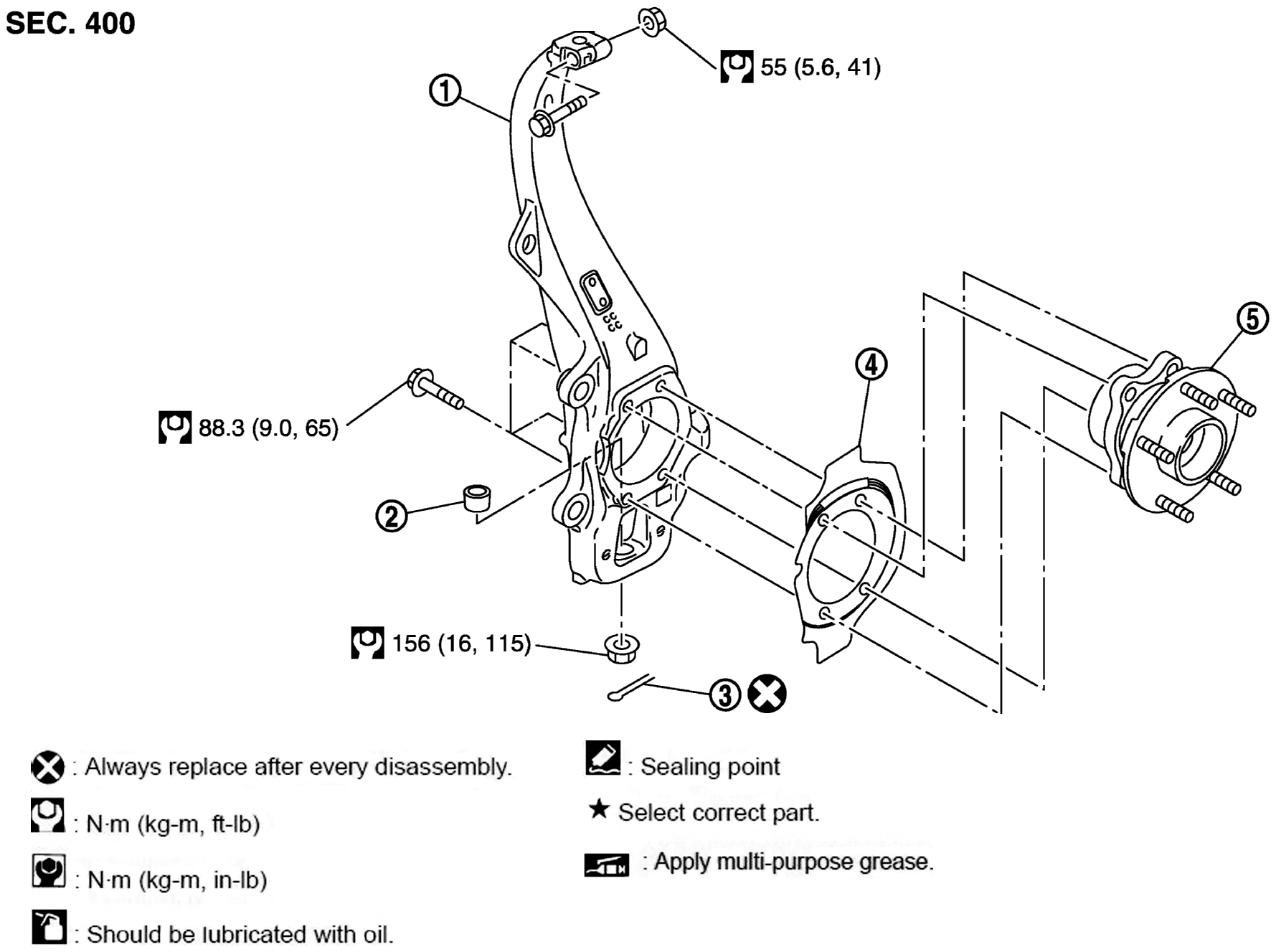

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Knuckle	2.	Ball Seat	3.	Cotter Pin
4.	Splash Guard	5.	Wheel Hub And Bearing Assembly
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
