Component Parts Location

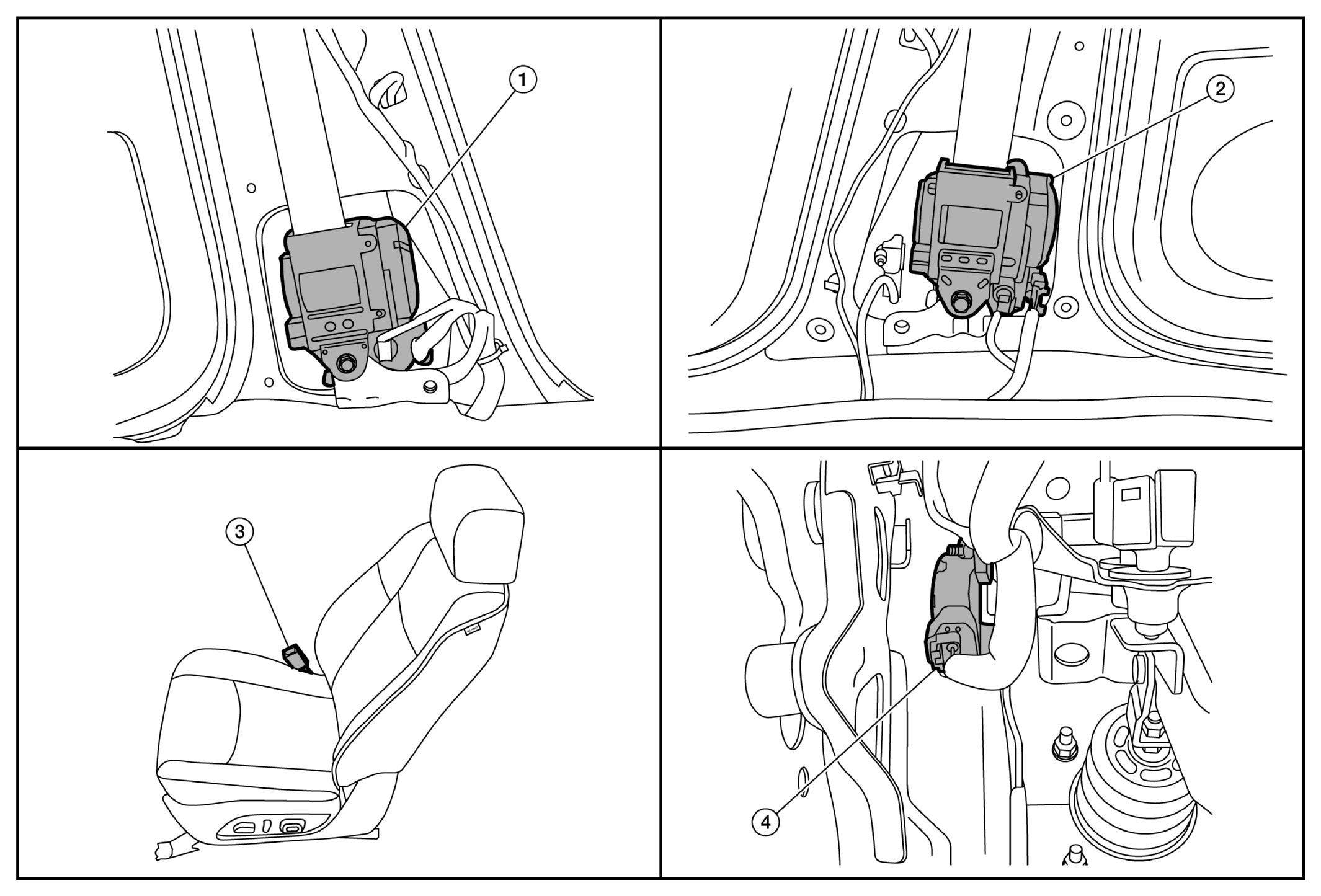

Fig 1: Seat Belt Control System Component Parts Location
GNSAWHIA0401ZZ-401Courtesy of NISSAN NORTH AMERICA, INC.
1. Pre-crash seat belt control unit
(driver side)
(View with center pillar lower garnish LH removed.)		 2. Pre-crash seat belt control unit
(passenger side)
(View with center pillar lower garnish RH removed.)		 3. Seat belt buckle switch (driver seat)
(passenger seat similar)
4. Brake pedal stroke sensor
(View with instrument lower panel LH removed.)
