Exploded View

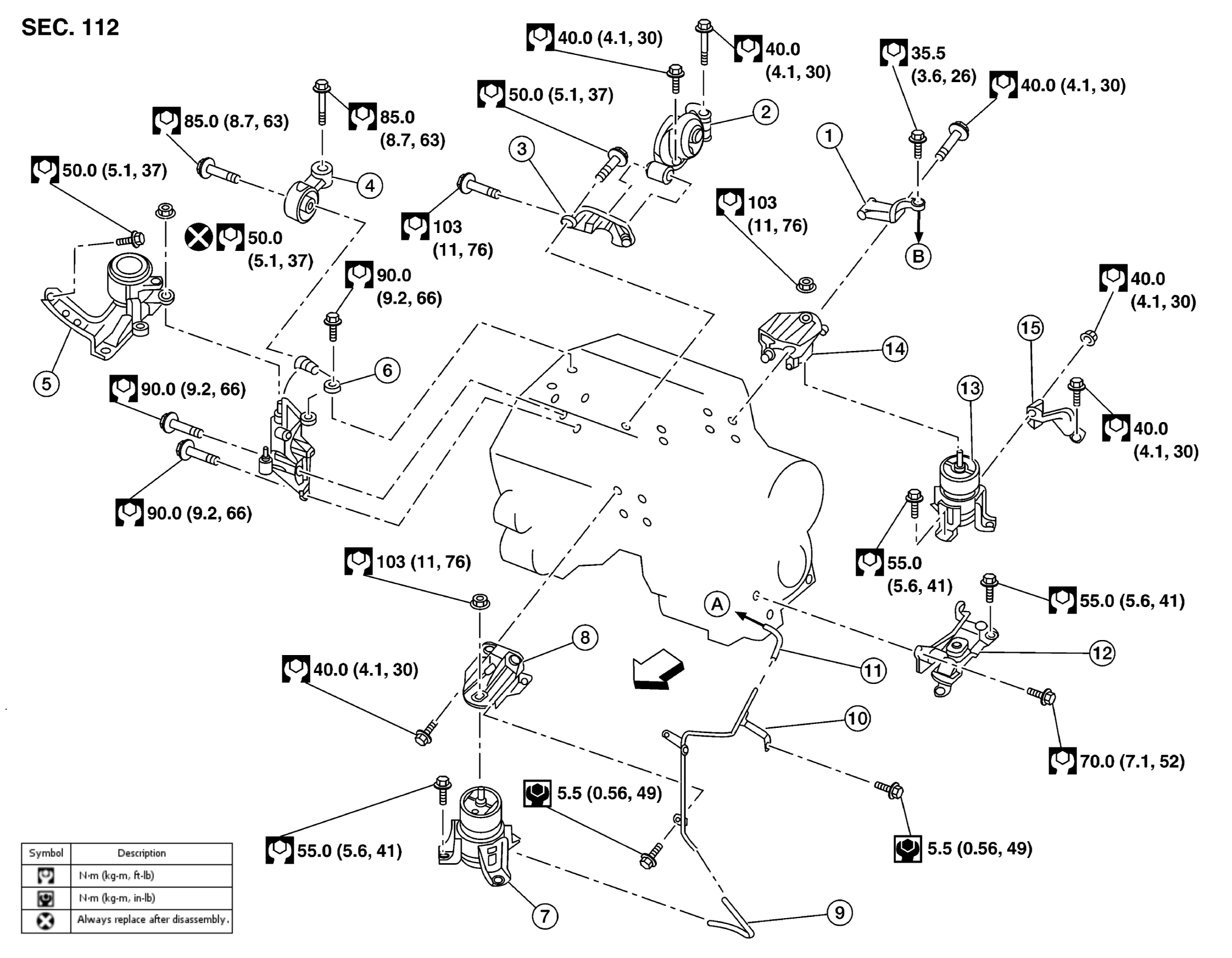

Fig 1: Exploded View Of Engine Assembly (FWD) With Torque Specifications
G09404232ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Gusset 2. Rear torque rod 3. Rear torque rod bracket
4. Upper torque rod 5. Engine mounting insulator (RH) 6. Engine mounting bracket (RH)
7. Engine mounting insulator (front) 8. Engine mounting bracket (front) 9. Vacuum hose
10. Vacuum tube (front) 11. Vacuum hose 12. Engine mounting insulator (LH)
13. Engine mounting insulator (rear) 14. Engine mounting bracket (rear) 15. Engine mounting stay (rear)
A. To electronic controlled engine mount control solenoid valve B. To transmission ARROW Front
