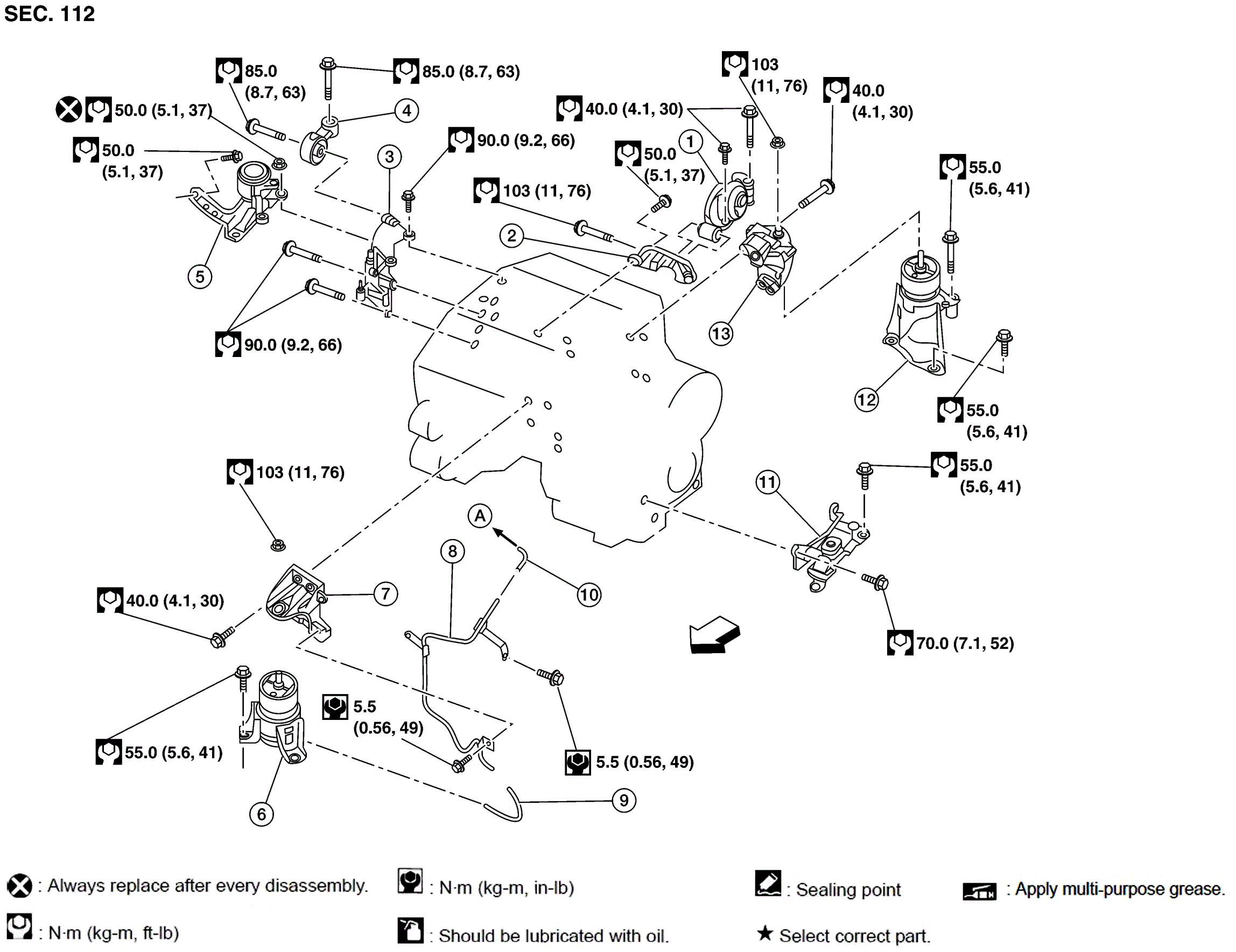

Exploded View
| 1. | Rear torque rod | 2. | Rear torque rod bracket | 3. | Engine mounting bracket (RH) |
| 4. | Upper torque rod | 5. | Engine mounting insulator (RH) | 6. | Engine mounting insulator (front) |
| 7. | Engine mounting bracket (front) | 8. | Vacuum tube (front) | 9. | Vacuum hose |
| 10. | Vacuum hose | 11. | Engine mounting insulator (LH) | 12. | Engine mounting insulator (rear) |
| 13. | Rear engine mount bracket (LH) | A. | To electronic controlled engine mount control solenoid valve | Front |
