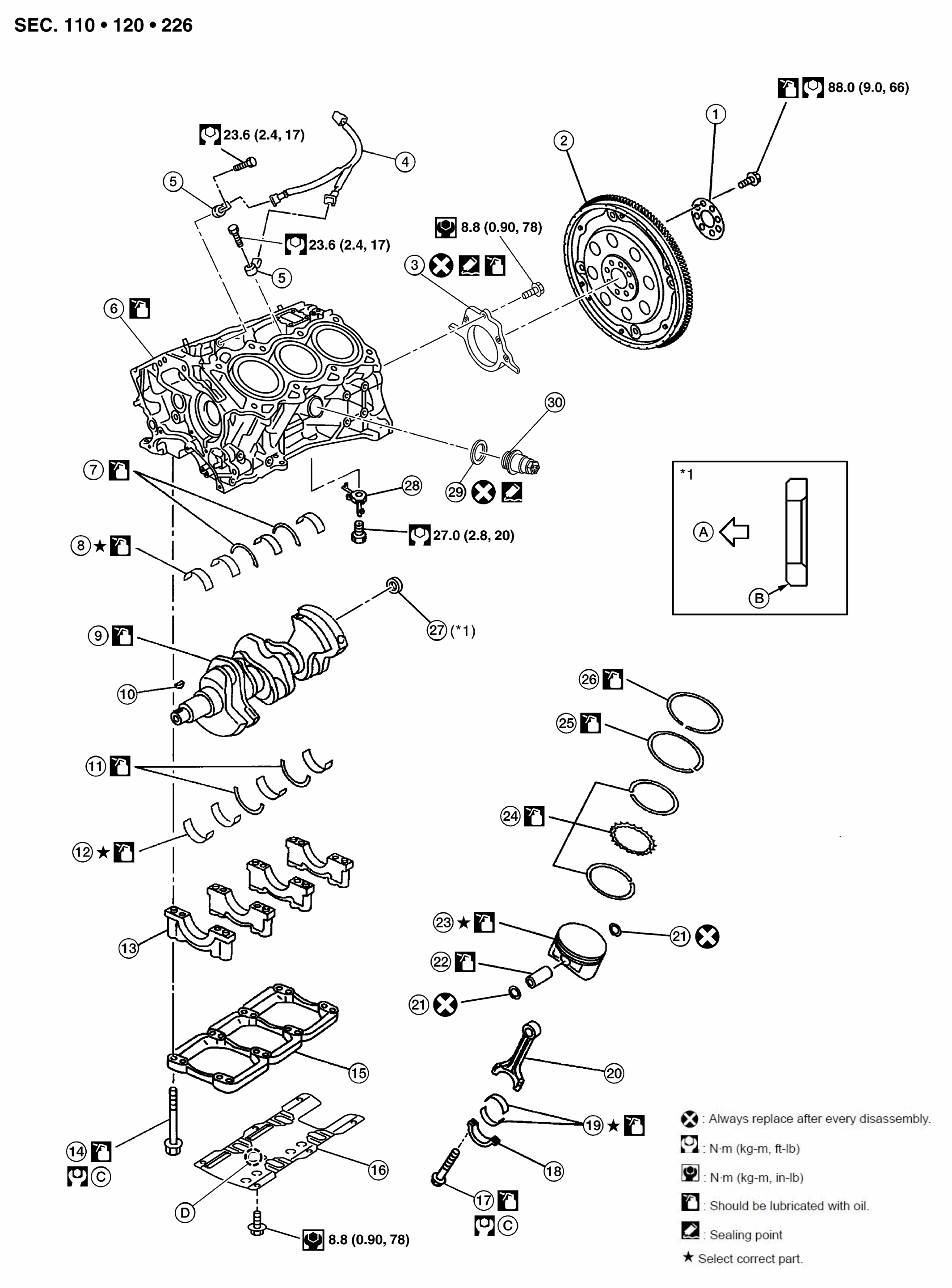

Exploded View
| 1. | Reinforcement plate | 2. | Drive plate | 3. | Rear oil seal retainer |
| 4. | Sub harness | 5. | Knock sensor | 6. | Cylinder block |
| 7. | Thrust bearing (upper) | 8. | Main bearing (upper) | 9. | Crankshaft |
| 10. | Crankshaft key | 11. | Thrust bearing (lower) | 12. | Main bearing (lower) |
| 13. | Main bearing cap | 14. | Main bearing cap bolt | 15. | Main bearing beam |
| 16. | Baffle plate | 17. | Connecting rod bolt | 18. | Connecting rod bearing cap |
| 19. | Connecting rod bearing | 20. | Connecting rod | 21. | Snap ring |
| 22. | Piston pin | 23. | Piston | 24. | Oil ring |
| 25. | Second ring | 26. | Top ring | 27. | Pilot converter |
| 28. | Oil jet | 29. | Gasket (if equipped) | 30. | Cylinder block heater (if equipped) |
| A. | Crankshaft side | B. | Chamfered | C. | Refer to INSTALLATION |
| D. | Front mark |
