Dowel Pin Alignment: Removal

  1. Use suitable tool to lock the drive plate and match mark (A) the drive plate before removing the bolts.
    Fig 1: Identifying Drive Plate And Match Mark
    G05880798Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not damage the ring gear teeth or the signal plate teeth behind the ring gear.

  2. Remove drive plate.

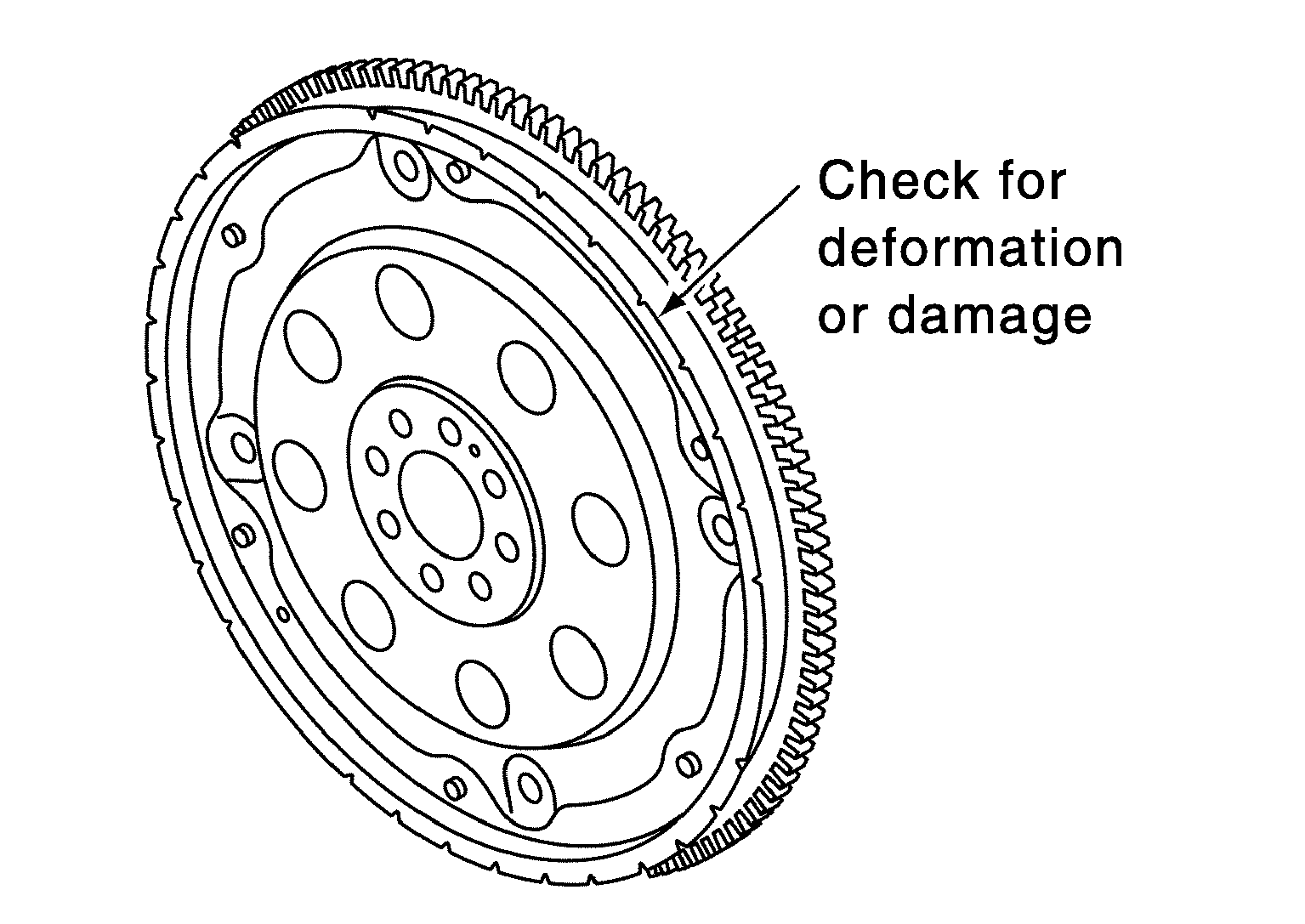

    Fig 2: Checking Drive Plate And Signal Plate For Deformation Or Cracks
    G04073098Courtesy of NISSAN NORTH AMERICA, INC.
    • Loosen the drive plate in a diagonal order.
    CAUTION:
    • Never place drive plate with signal plate facing down.
    • When handling the signal plate, take care not to damage or scratch it.
    • Handle the signal plate in a manner that prevents it from becoming magnetized.
