Exploded View

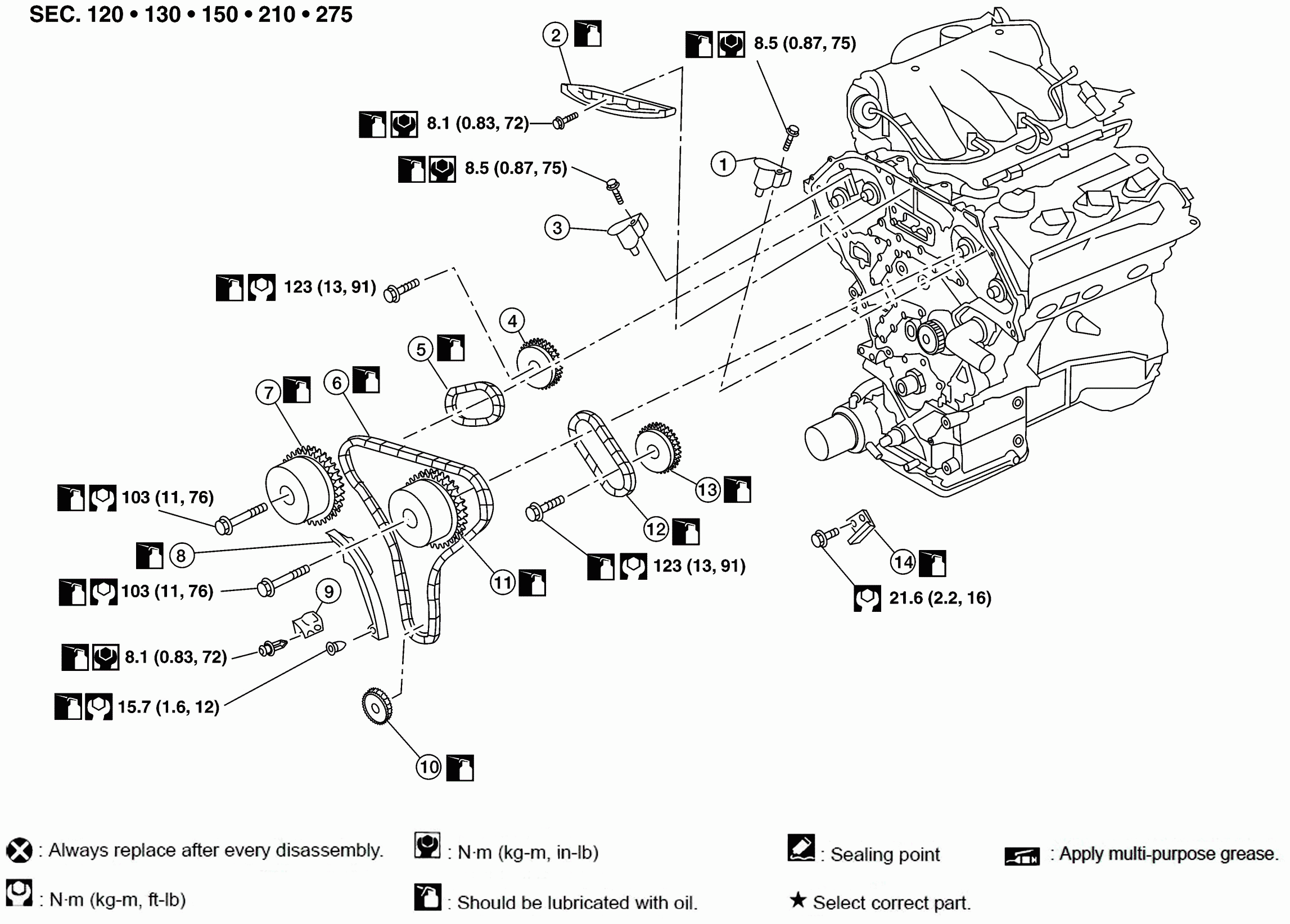

Fig 1: Exploded View Of Timing Chain With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Timing chain tensioner (secondary) (LH)	2.	Internal chain guide	3.	Timing chain tensioner (secondary) (RH)
4.	Camshaft sprocket RH (EXH)	5.	Timing chain (secondary)	6.	Timing chain (primary)
7.	Camshaft sprocket RH (INT)	8.	Slack guide	9.	Timing chain tensioner (primary)
10.	Crankshaft sprocket	11.	Camshaft sprocket LH (INT)	12.	Timing chain (secondary)
13.	Camshaft sprocket LH (EXH)	14.	Tension guide
