Exploded View

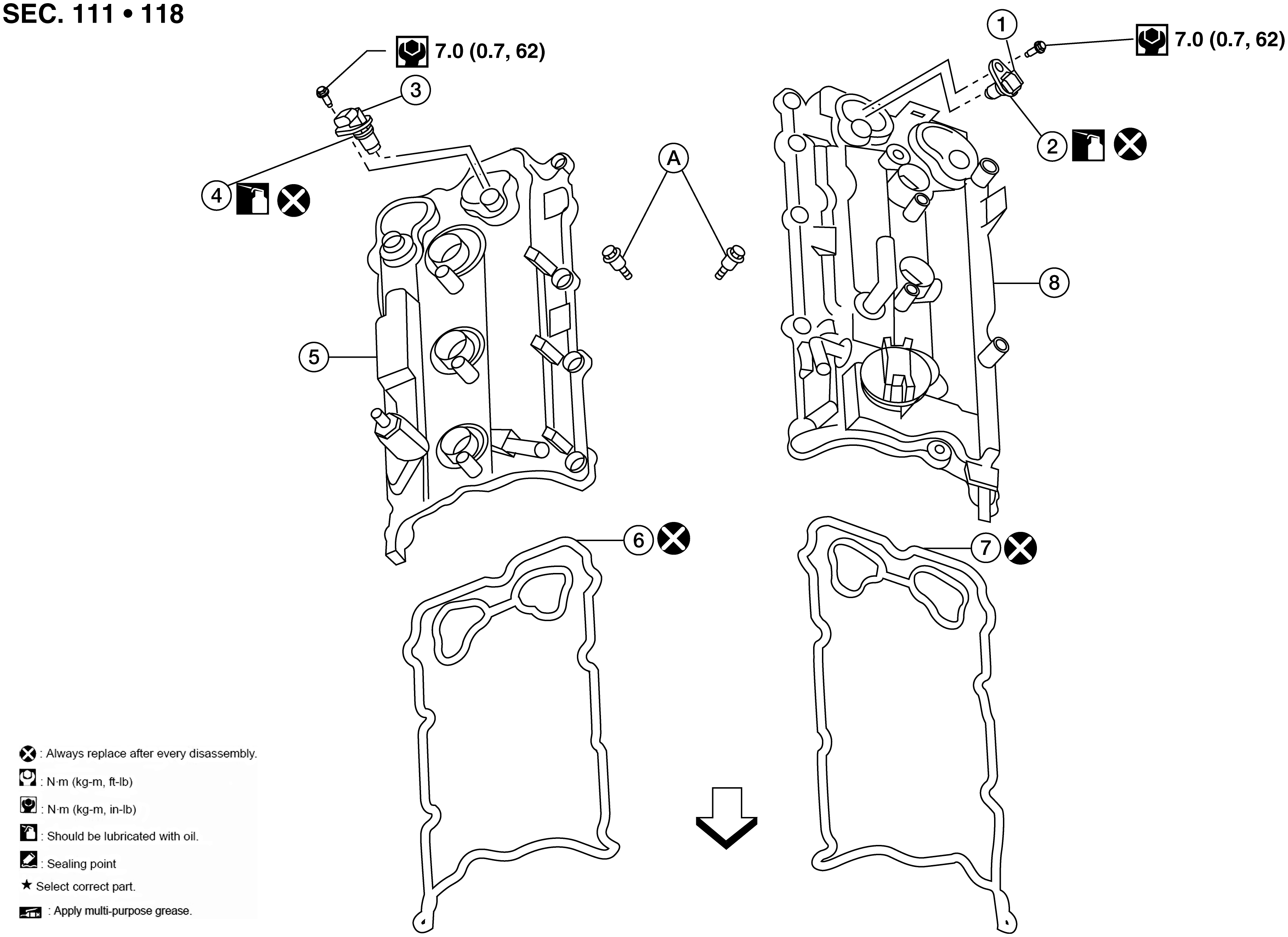

Fig 1: Exploded View Of Rocker Cover With Torque Specifications
G09404085ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Camshaft position sensor (LH) 2. O-ring 3. Camshaft position sensor (RH)
4. O-ring 5. Rocker cover (RH) 6. Rocker cover gasket (RH)
7. Rocker cover gasket (LH) 8. Rocker cover (LH) A. Follow installation procedure
ARROW Engine front
