Exploded View

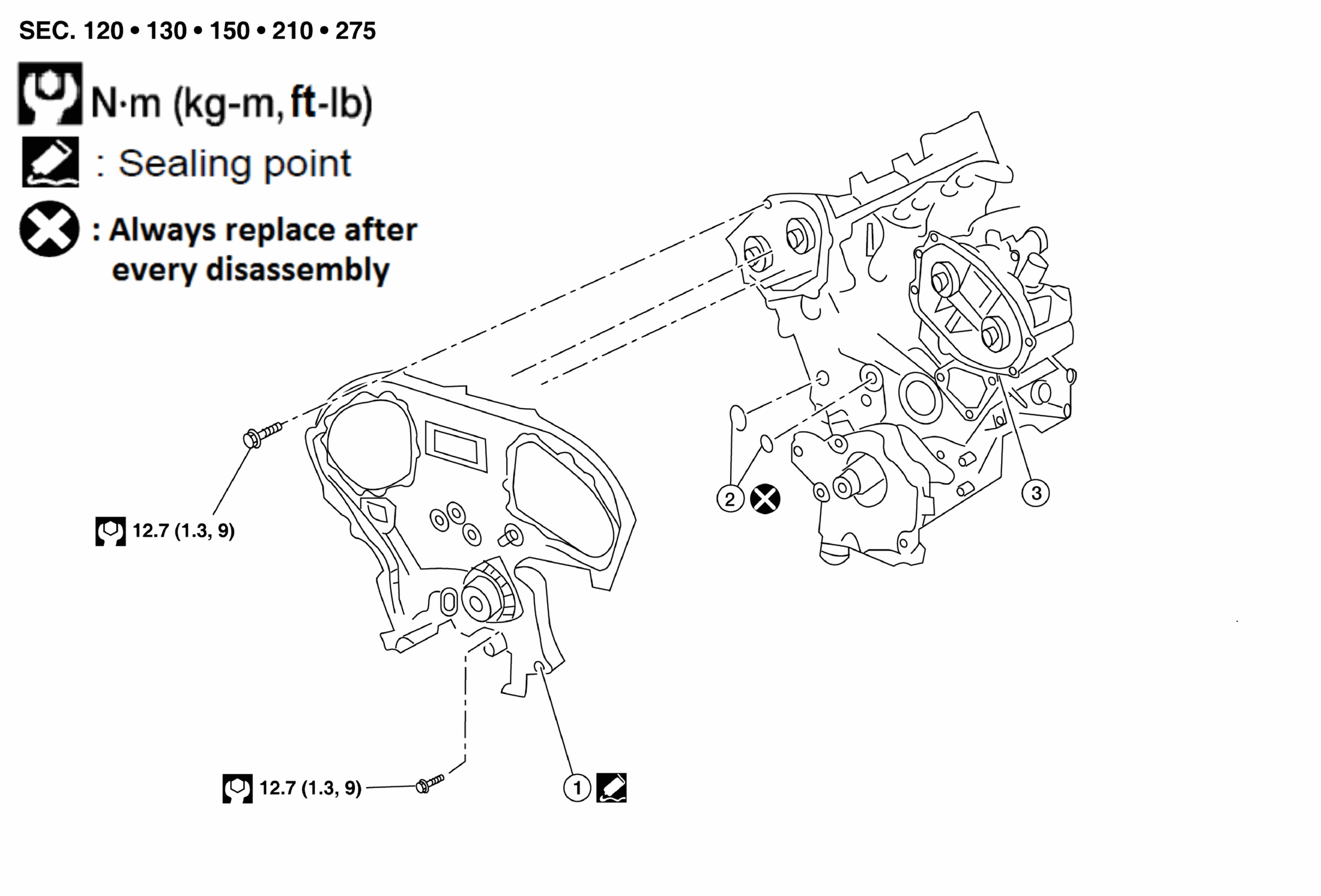

Fig 1: Exploded View Of Rear Timing Chain Case With Torque Specifications

G09404144

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear timing chain case

2.

O-ring

3.

Cylinder block
