Exploded View

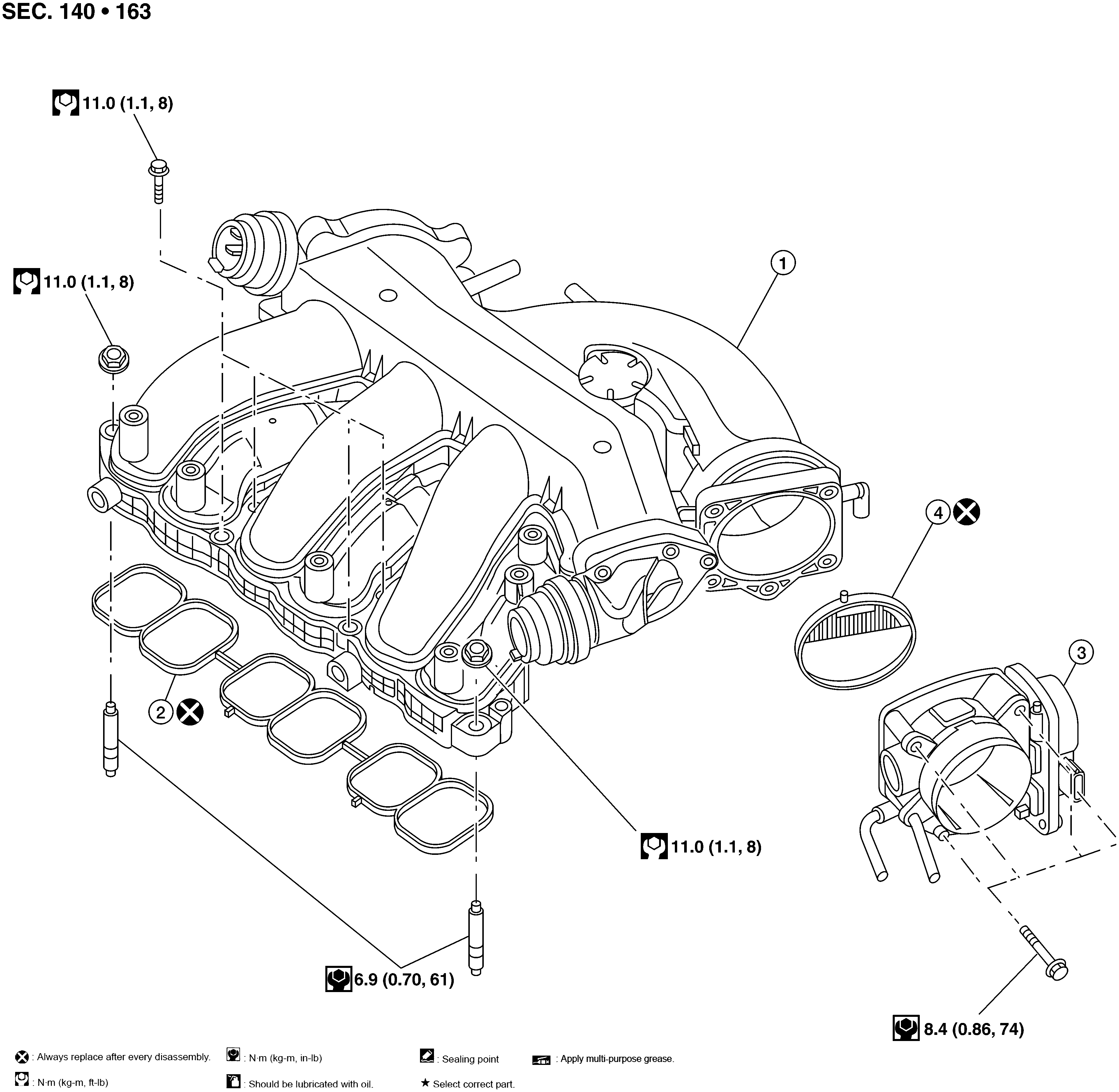

Fig 1: Exploded View Of Intake Manifold Collector With Torque Specifications
G09404050Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake manifold collector 2. Intake manifold collector gasket 3. Electric throttle control actuator
4. Electric throttle control actuator gasket
