Exploded View

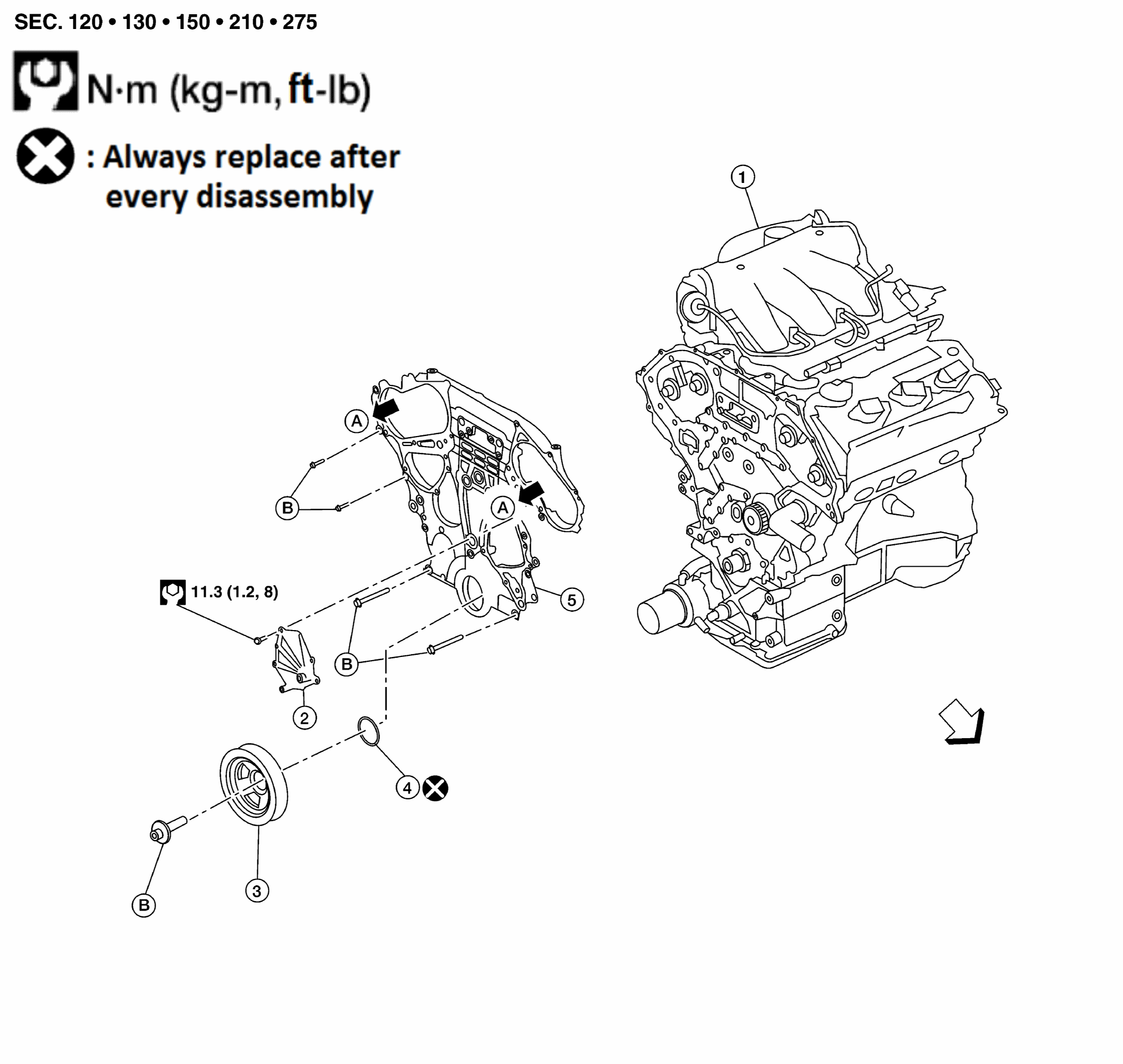

Fig 1: Exploded View Of Front Timing Chain Case With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine assembly	2.	Water pump cover	3.	Crankshaft pulley
4.	Front oil seal	5.	Front timing chain case	A.	To Valve timing control cover (bank 1/ bank 2). Refer to EXPLODED VIEW
B.	Refer to INSTALLATION		Front
