Exploded View

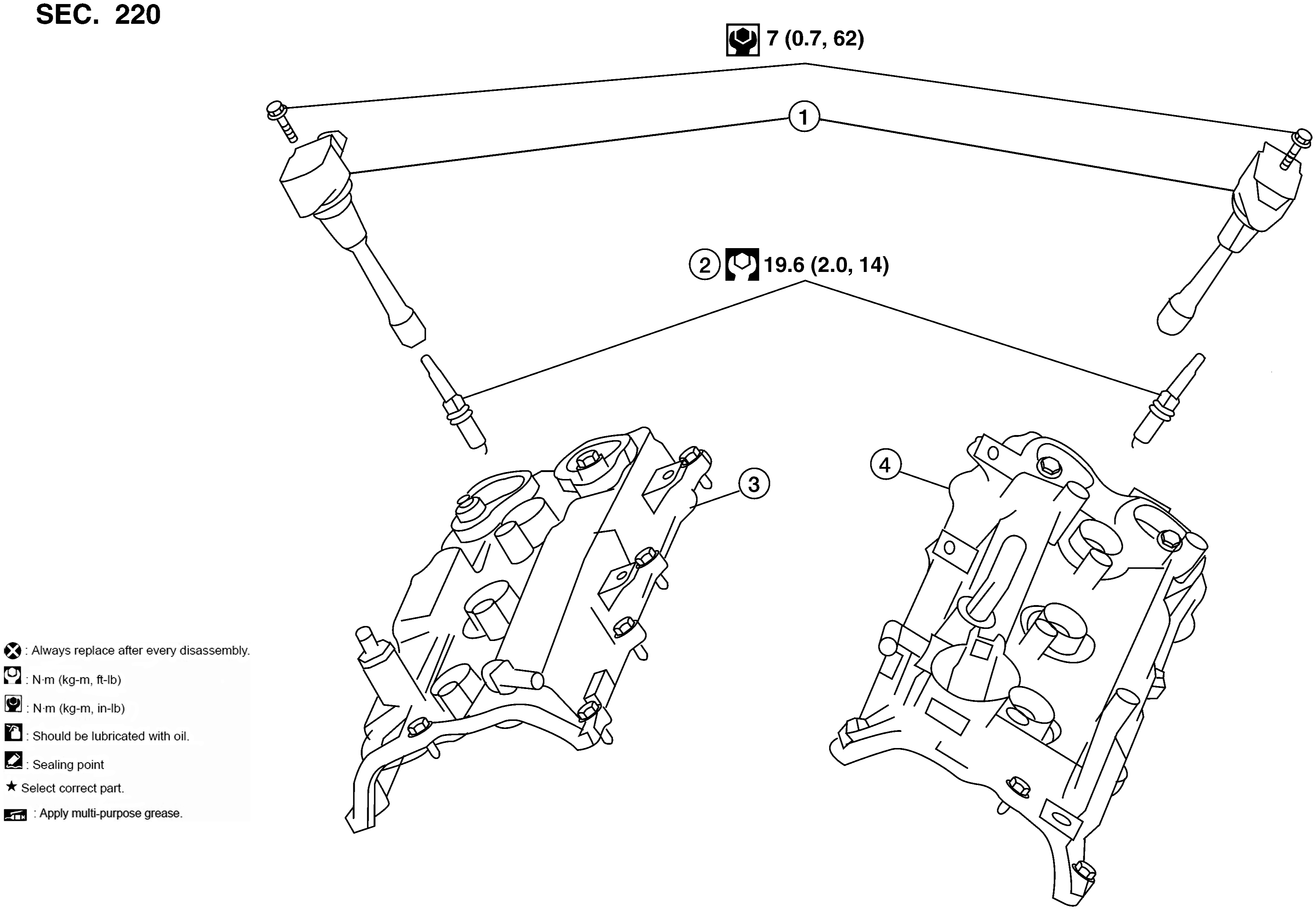

Fig 1: Exploded View Of Spark Plug And Ignition Coil With Torque Specifications
G09404033Courtesy of NISSAN NORTH AMERICA, INC.
1. Ignition coil 2. Spark plug 3. Rocker cover (RH)
4. Rocker cover (LH)
