Exploded View With Torque Specifications

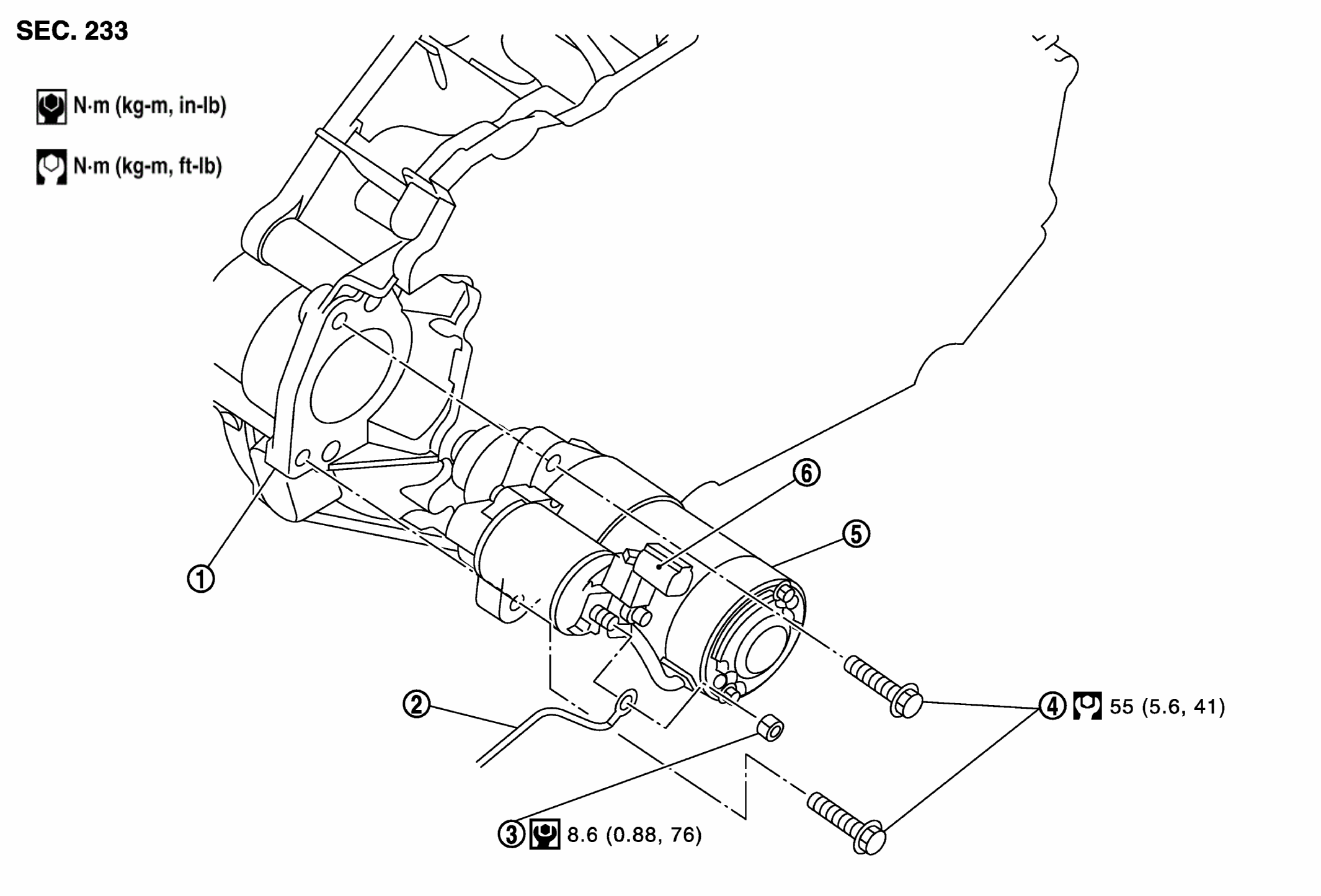

Fig 1: Exploded View Of Starter Motor With Torque Specifications
G08480721Courtesy of NISSAN NORTH AMERICA, INC.
1. Converter housing 2. "B" terminal harness 3. Starter motor "B" terminal nut
4. Starter motor bolt 5. Starter motor 6. "S" connector
