Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

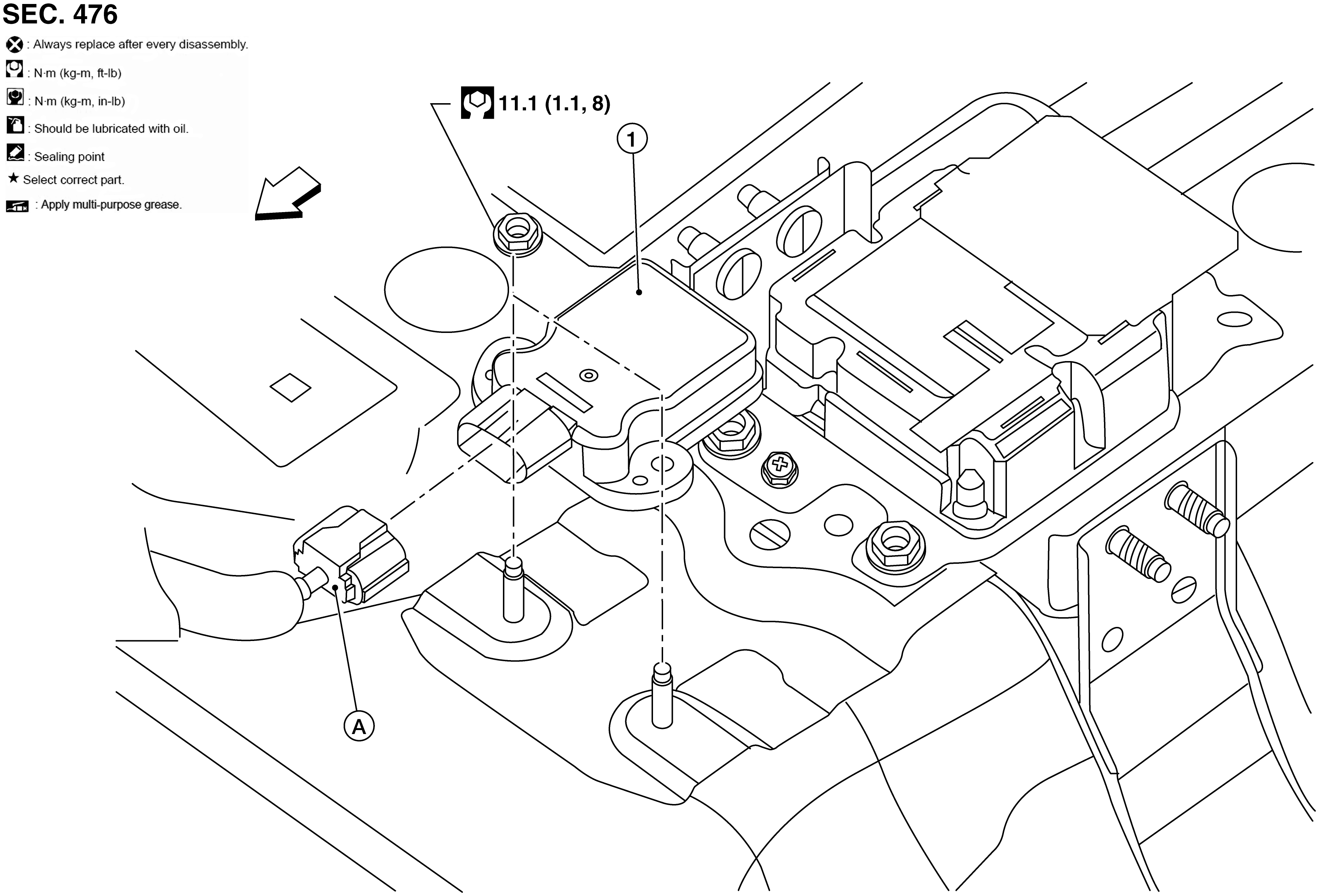

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Yaw rate/side/decel G sensor
A.
Harness connector
Front
